Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interfaces – Front Panel

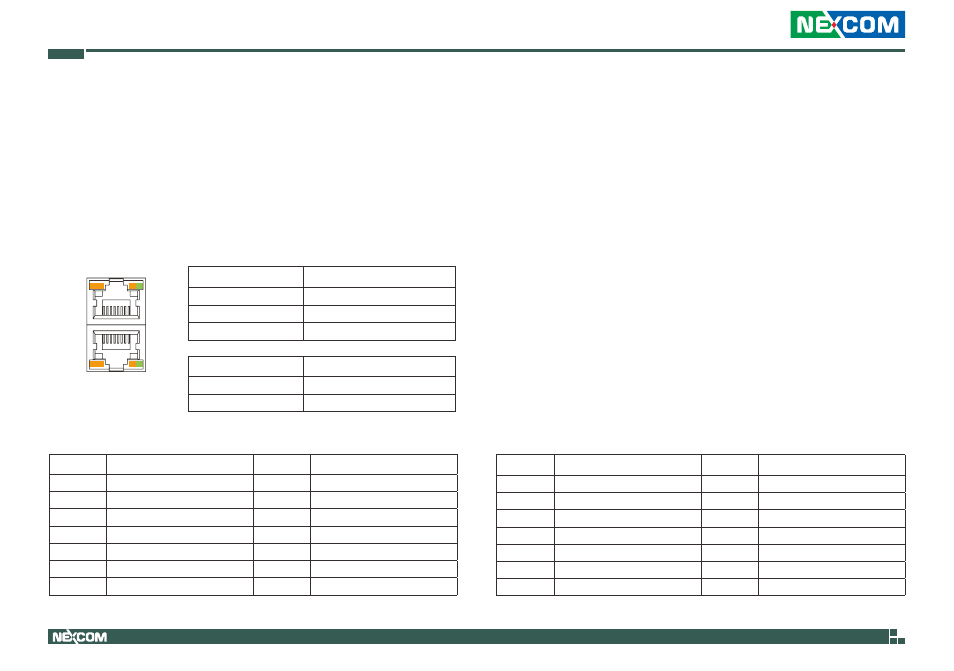

LAN1 and LAN2 Ports
Connector type: RJ45 port with LEDs
Connector location: LAN1A (LAN1) and LAN1B (LAN2)
ACT
ACT
LINK
LINK
Link Status
Steady Orange 1G network link
Steady Green 100Mbps network link
Off 10Mbps network link
Act Status
Flashing Orange Data activity
Off No activity
B8
A1
LAN1
LAN2
B1
A8
Pin Definition Pin Definition
A1 LAN1_M0P A8 LAN1_M3N
A2 LAN1_M0N A9 VCC
A3 LAN1_M1P A10 GND
A4 LAN1_M1N A11 LAN1_ACTP
A5 LAN1_M2P A12 LAN1_LED_ACT#
A6 LAN1_M2N A13 LAN1_LINKP
A7 LAN1_M3P A14 LAN1LINKMIX
Pin Definition Pin Definition
B1 LAN2_M0P B8 LAN2_M3N
B2 LAN2_M0N B9 VCC
B3 LAN2_M1P B10 GND
B4 LAN2_M1N B11 LAN2_ACTP
B5 LAN2_M2P B12 LAN2_LED_ACT#
B6 LAN2_M2N B13 LAN2_LINKP
B7 LAN2_M3P B14 LAN2LINKMIX
LAN1 LAN2
