Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved. 15 NISE 90 User Manual

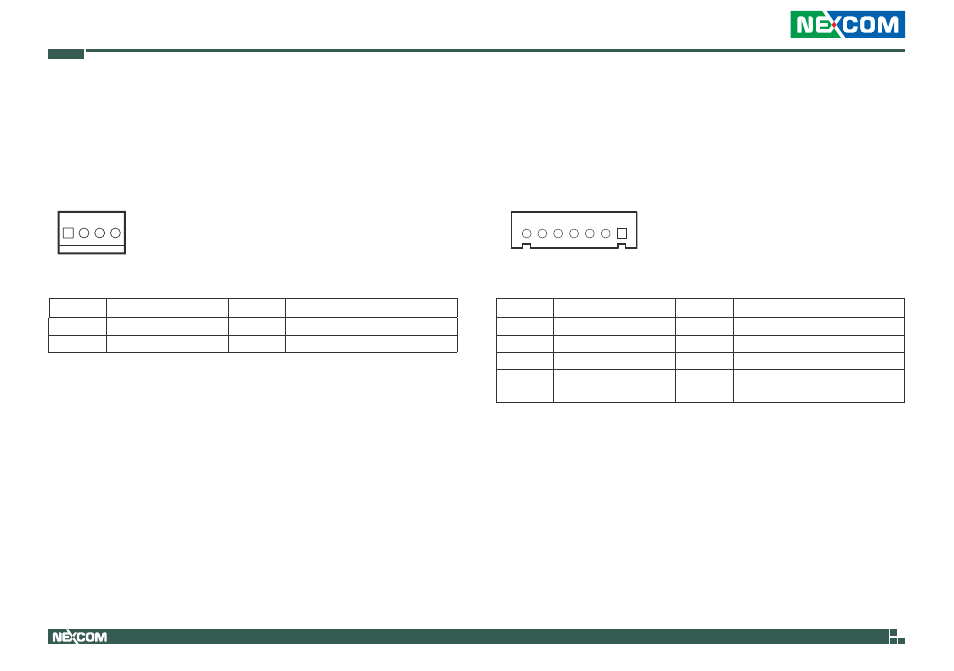

Chapter 2: Jumpers and Connectors
Internal Connectors
System FAN Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: J1
Pin Definition Pin Definition
1 GND 3 Sense
2 +12V 4 Control
Pin Definition Pin Definition
1 +5V 5 GND
2 +12V 6 GND
3 +12V 7 Panel Backlight Enable
4
Panel Backlight
Brightness Control
1 4
LVDS Panel Backlight Connector
Connector type: 1x7 JST, 7-pin header, 2.5mm pitch
Connector location: J6
1 7
