Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved. 22 NISE 90 User Manual
Chapter 2: Jumpers and Connectors

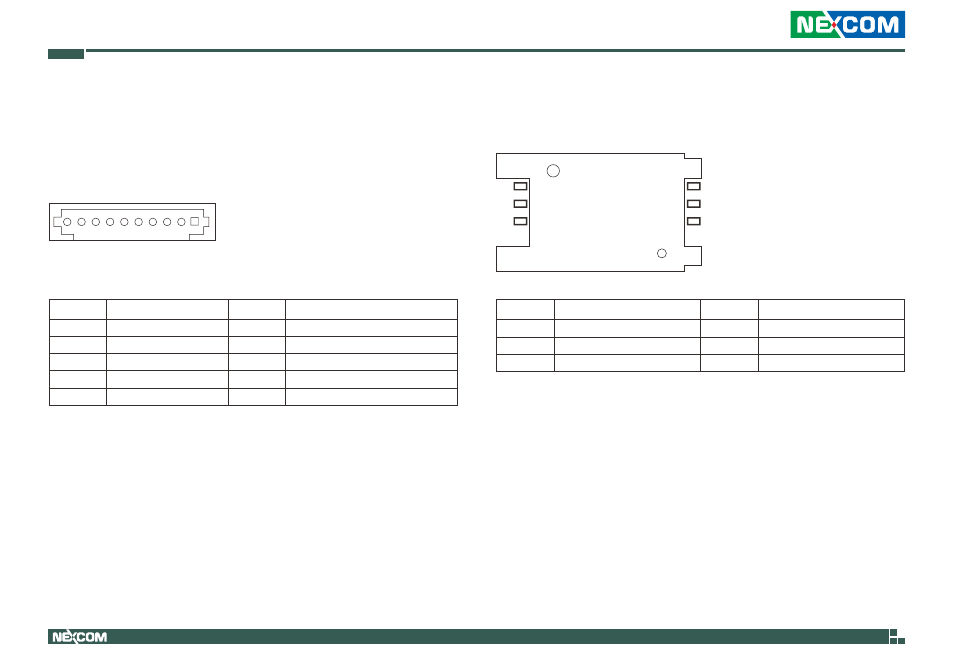

COM4 Box Pin Header
Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J16
Pin Definition Pin Definition
1 SIO_DCD#4 2 SIO_RXD4
3 SIO_TXD4 4 SIO_DTR#4
5 GND 6 SIO_DSR#4
7 SIO_RTS#4 8 SIO_CTS#4
9 SIO_RI#4 10 GND
10 1
SIM Card Connector
Connector location: IDE1
C3
C2
C1 C7
C6
C5
Pin Definition Pin Definition
C1 UIM_PWR C2 UIM_RESET
C3 UIM_CLK C5 GND
C6 UIM_VPP C7 UIM_DATA
