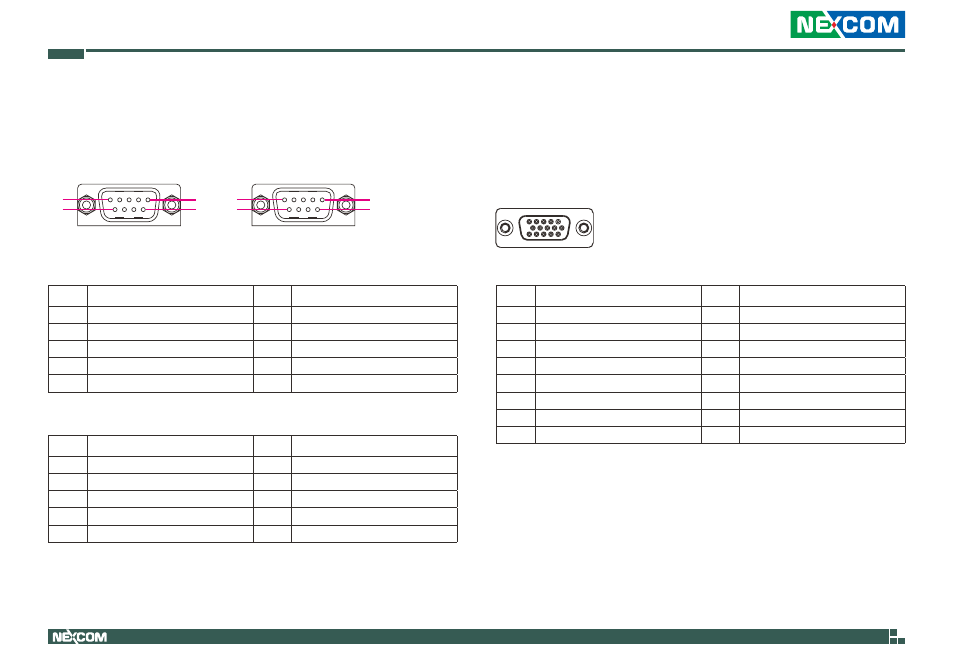

Chapter 2: Jumpers and Connectors
COM3 and COM2 Connector
Connector type: DB-9 port
Connector location: COM2A (COM3) and COM2B (COM2)
COM 3 Connector Pin Definition
COM 2 Connector Pin Definition
COM 3
1 5
6 9
COM 2
10 14
15 18
Pin Definition Pin Definition
1 DCD3 6 DSR3
2 RXD3 7 RTS3
3 TXD3 8 CTS3
4 DTR3 9 RI3
5 GND
Pin Definition Pin Definition
10 DCD2 15 DSR2
11 RXD2 16 RTS2
12 TXD2 17 CTS2
13 DTR2 18 RI2
14 GND
External I/O Interfaces – Rear Panel
VGA Connector
Connector type: DB-15, 15-pin D-Sub (VGA)
Connector location: VGA1
Pin Definition Pin Definition
1 Red 9 +5V
2 Green 10 GND
3 Blue 11 N/C
4 GND 12 DDC Data
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 DDC Clock
8 GND
1 5
11 15
