Ring/Network coupling
PSSnet SHL - Redundancy Configuration
Pilz GmbH & Co. KG, Felix- Wankel Str. 2, 73760 Ostfildern
3.2 Preparing a Ring/Network cou-
pling
51

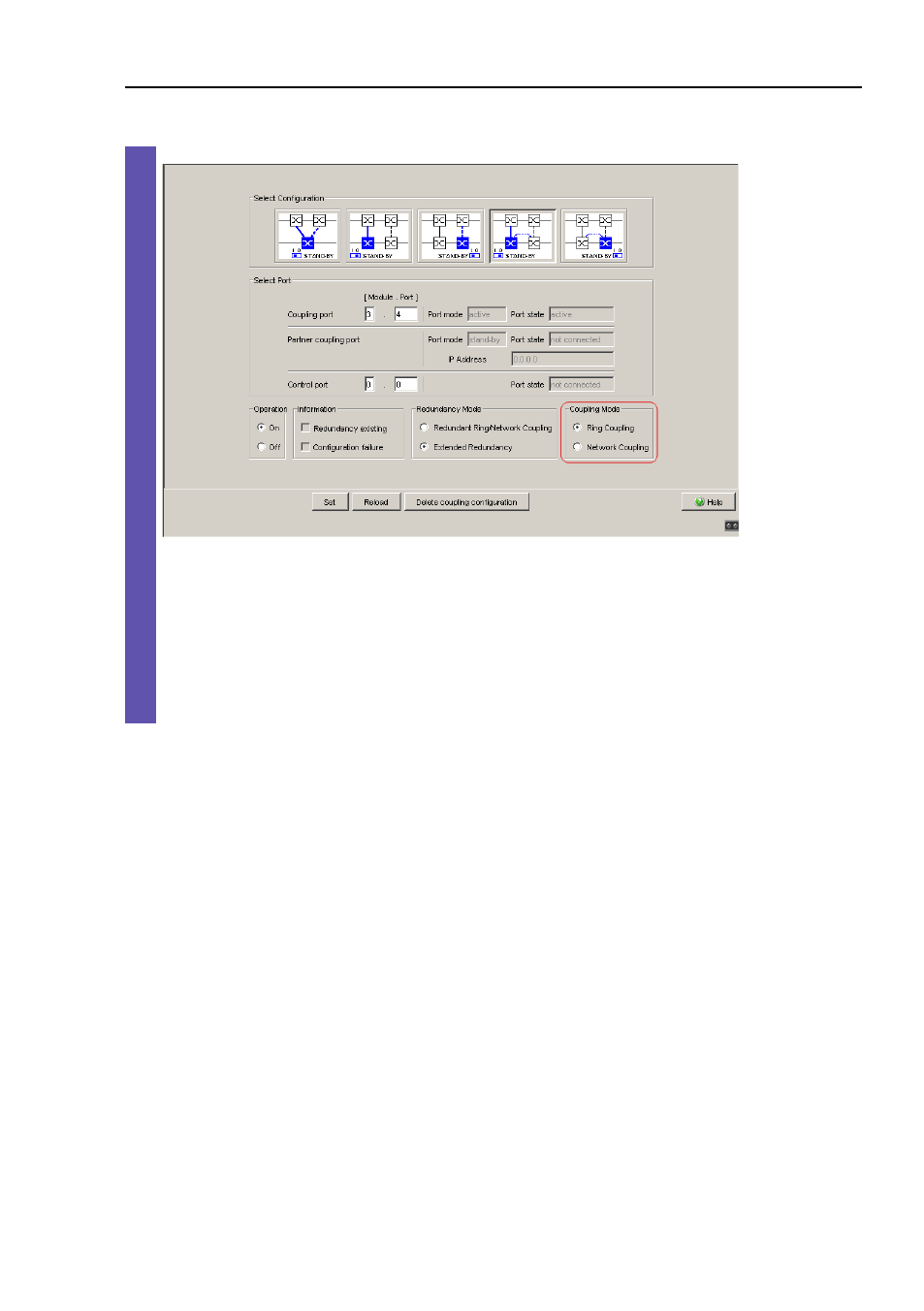

Figure 27: Selecting the coupling mode
Select “Ring coupling” if you are connecting a redundancy ring.
Select “Network Coupling” if you are connecting a line structure.
Delete coupling configuration
The “Delete coupling configuration” button in the dialog allows you
to reset all the coupling settings of the device to the state on delivery.
