Connections (cont’d)
Unplug all equipment from the AC output before making connections.
There are several options for integrating your DIRECTV
® Multi-Room Receiver in your setup.The following chart shows
the recommended basic installation.

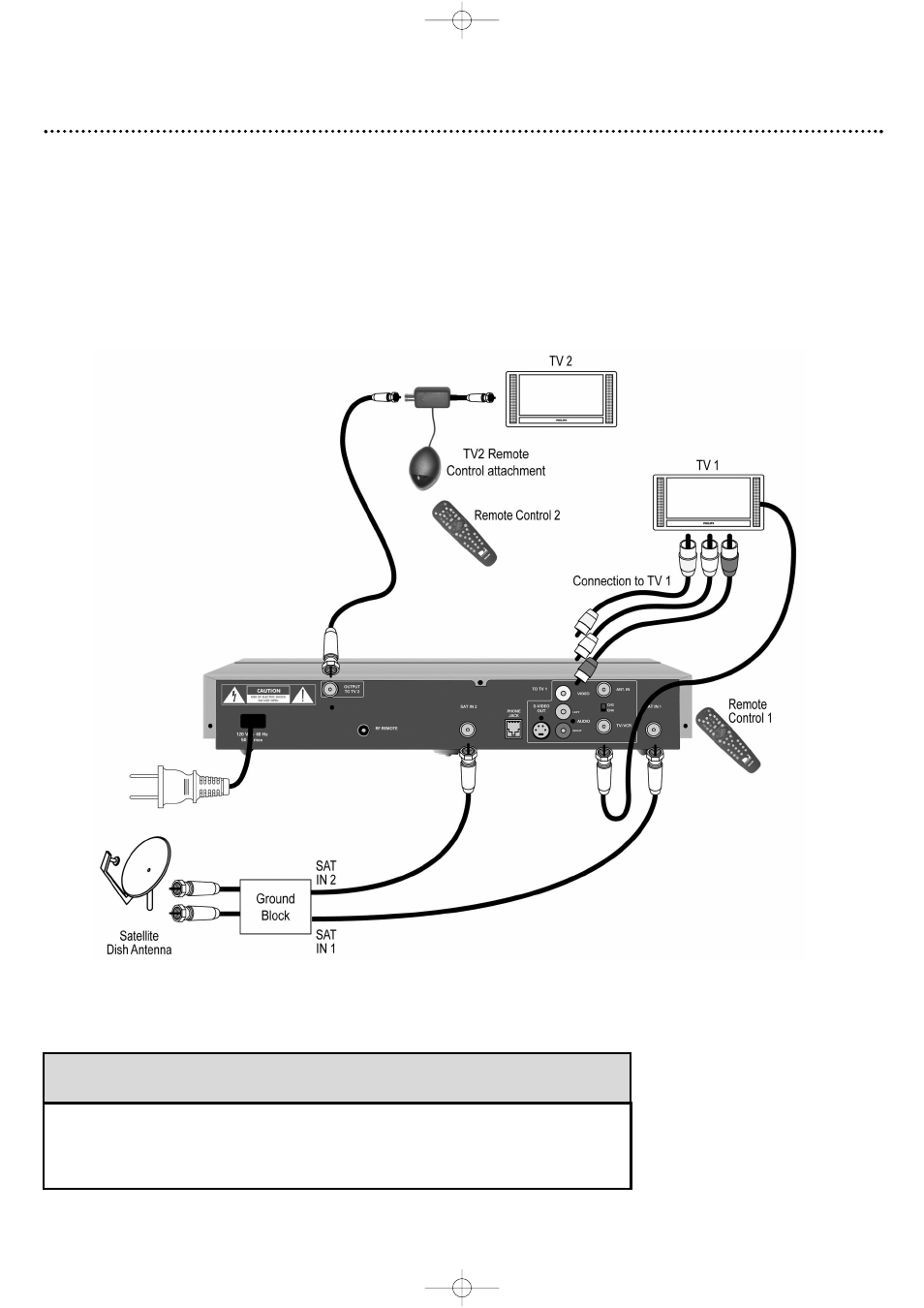

Basic configuration
Notes:
This illustration shows standard configuration. For more information about other installation options, please
call 1-800-531-5000.
Always connect the DIRECTV ® Multi Room Receiver exactly as indicated in this manual.
The “OUTPUT TO TV2” jack on the Multi Room Receiver must always be connected to
the TV2 Remote Control Attachment.The TV2 Remote Control Attachment is then
connected to antenna input jack on TV2.
