Connections (cont’d)
Unplug all equipment from the AC output before making connections.

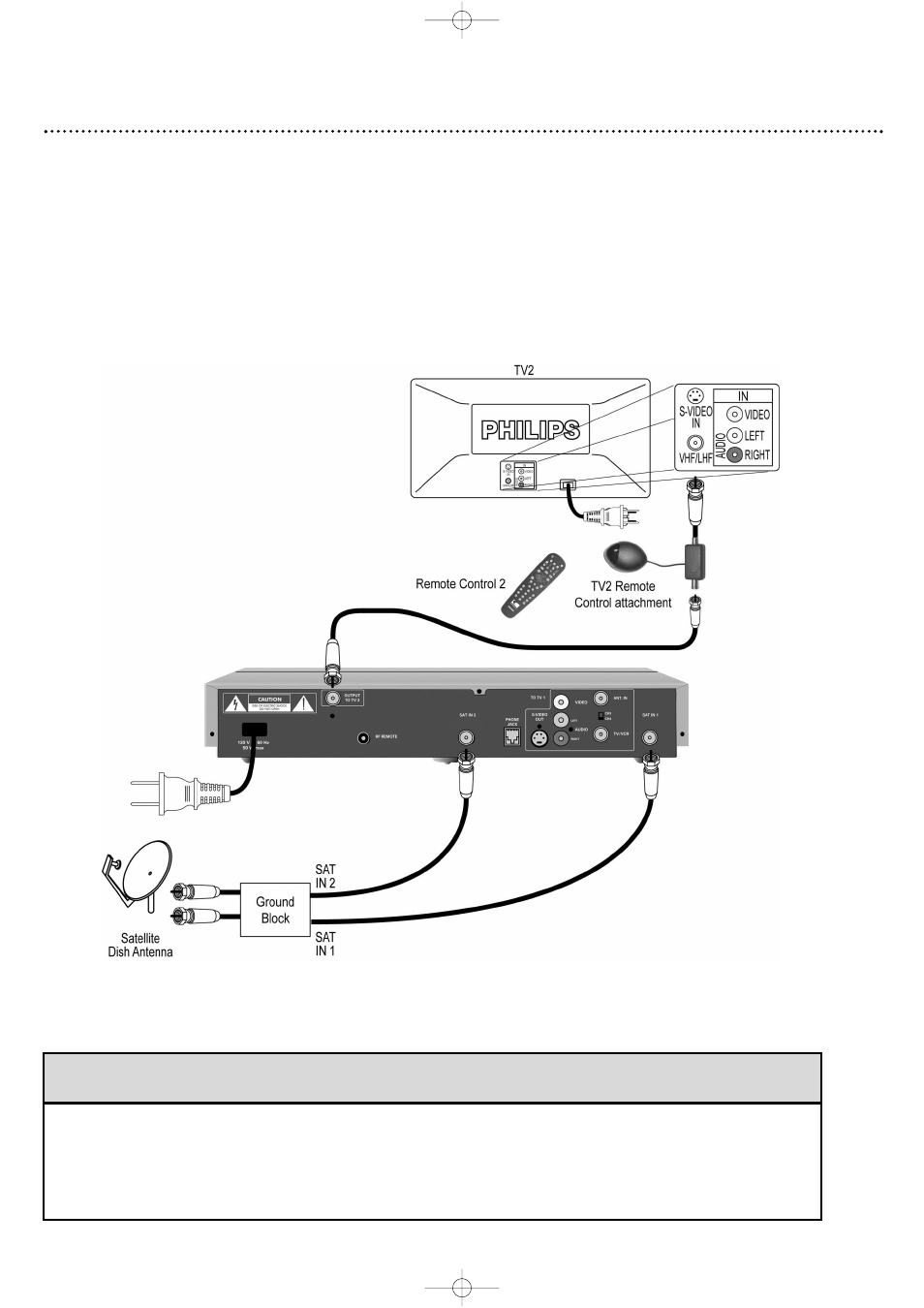

The following chart shows the recommended basic installation.
Video for TV2
Notes:
This illustration shows standard configuration. For more information about other installation options, please
call 1-800-531-5000.
Always connect the Multi Room Receiver exactly as indicated in this manual.
The “OUTPUT TO TV2” jack on the Multi Room Receiver must always be connected to the TV2 Remote Control
Attachment.The TV2 Remote Control Attachment is then connected to antenna input jack on TV2.
NEVER CONNECT THE MULTI ROOM RECEIVER DIRECTLY TO TV2. IT MUST ONLY BE DIRECTLY CONNECTED
TO THE TV2 REMOTE CONTROL ATTACHEMENT. FAILURE TO PROPERLY CONNECT THIS PRODUCT COULD
DAMAGE YOUR TV SET.
