10
Connections (cont’d)
Unplug all equipment from the AC outlet before making connections.
There are several options for connecting the video and audio outputs of your DIRECTV
® Multi-Room Receiver, depending
on the type of equipment you want to connect and the quality of signal you want to achieve.The following chart summa-
rizes your options for video connections. Select either A, B, or C and refer to the illustration and steps below to connect.
Option Video Signal Quality Video Output
A Very Good S-VIDEO OUT
B Good VIDEO
C Standard TV/VCR

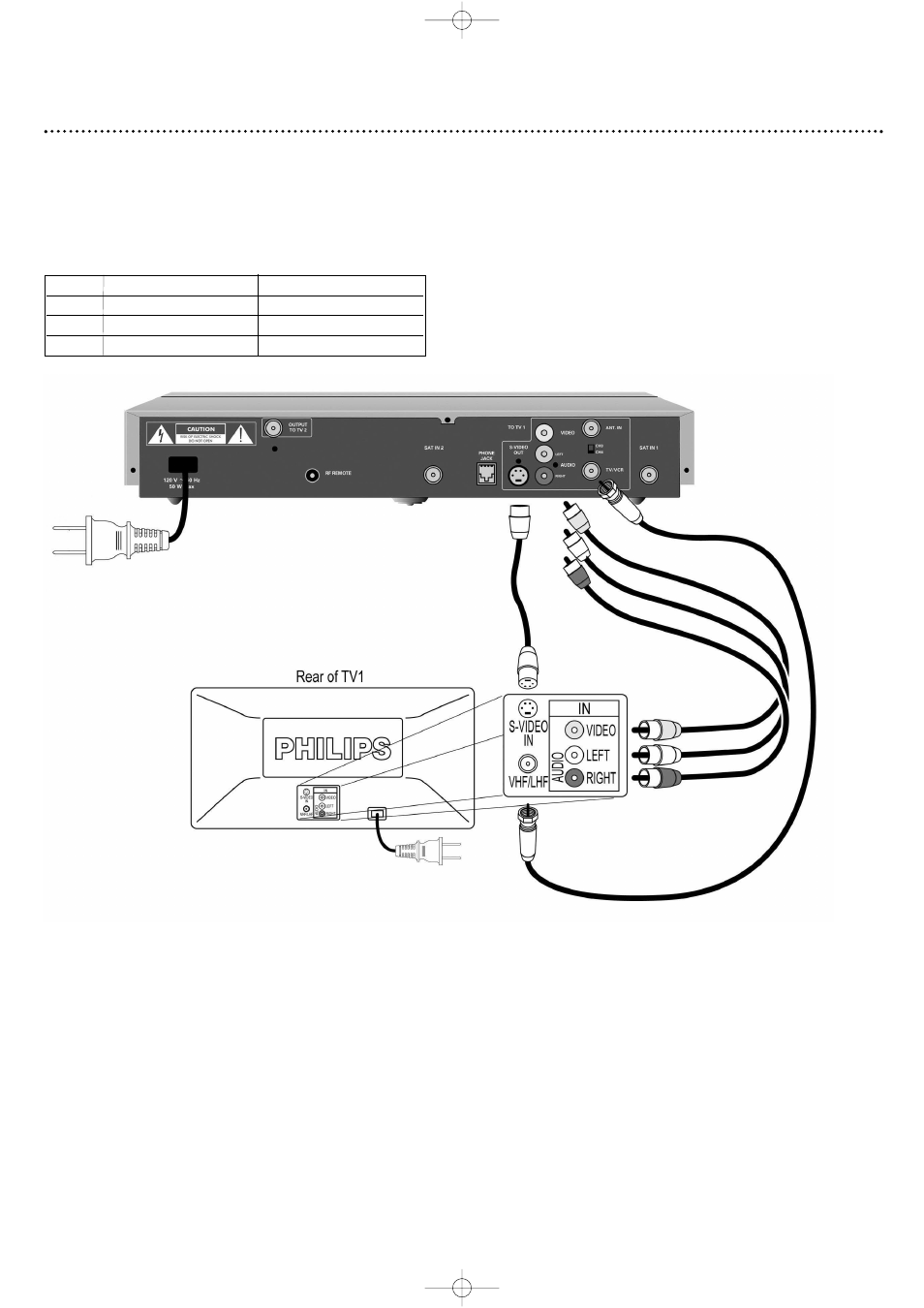

Note: The TV rear jack panel shown above has jacks for all possible connections.Your TV’s rear jack panel may differ.
A. Using a S-VIDEO cable, connect one end to the S-VIDEO OUT jack on the Receiver to the S-VIDEO IN on the TV.
Select the proper input on your TV.
B. Using the RCA type connector (supplied), connect one end to the VIDEO jack (yellow) on the Receiver to the VIDEO
IN on the TV. Select the proper input on your TV.
C. Using the RF coaxial cable (supplied), connect one end to the TV/VCR jack on the Receiver to the RF IN jack on the
TV.Turn the TV on and select channel 3 or 4, whichever is not used or least used in your area. Set the
CHANNEL switch on the back of the Receiver to the same channel.
Video for TV1
A A
B B
C C
