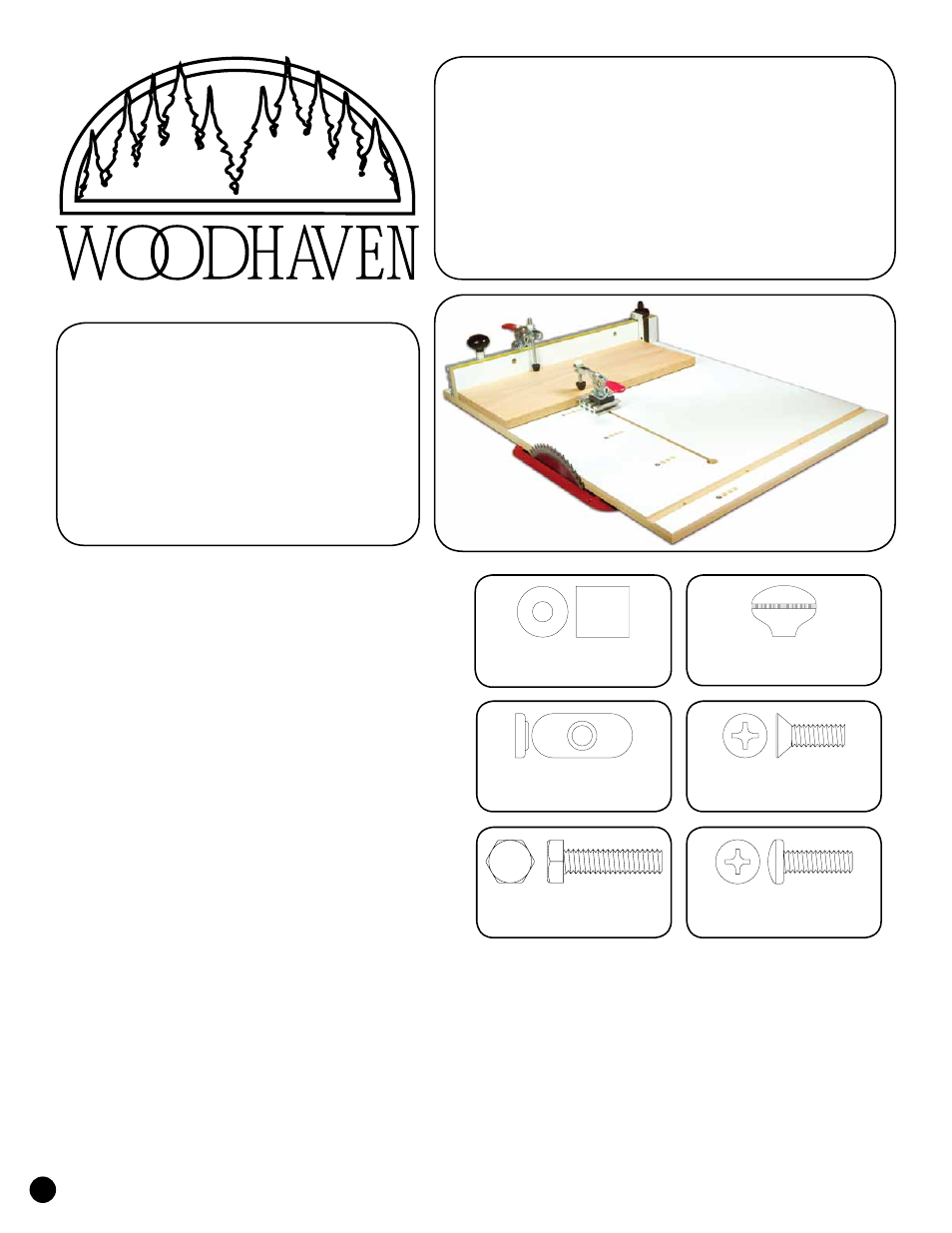

Woodhaven 4950: Half Cut-Off Sled User Manual

4950 cut-off sled, Please read carefully, Parts list

BEFORE BEGINNING

Identify and verify that you have all the parts listed and

read thru the instructions at least once before beginning. All
set-up work should be done with the saw disconnected from the
power and the saw blade lowered below the table. This unit is
designed for table saws with at least a 27" deep table. Do not
attempt to use on table saws with smaller tables unless you have
adequate support. If necessary, add additional supports to your
saw to prevent the saw from tipping. This unit relies on the
miter slot of your saw being parallel to the saw blade for it to
work properly. If this is not the case, make those adjustments
to your saw first. You'll need a #2 & #3 Phillips screwdriver
for assembly. Turn page over for assembly instructions.

Parts List:

Please identify and verify that you have all of the

hardware shown below prior to assembly.

Part Description

Quantity

4951D MDF

Base

. . . . . . . . . . . . . . . . . . . . . . . . . 1

4918B

17-3/4" Miter Bar . . . . . . . . . . . . . . . . . . 2

4424

24" Ultra Track . . . . . . . . . . . . . . . . . . . . 1

4951C

24" Sub-Fence . . . . . . . . . . . . . . . . . . . . . 1

4951S

Straight Flip Stop . . . . . . . . . . . . . . . . . . 1

3724R

24" Right to Left Tape . . . . . . . . . . . . . . 1

4950

Cut-Off Sled

Please Read Carefully!

Part# Description Qty.
5771B 3/4"

Screw 2

Part# Description Qty.
5760B Oval

Nut

Part# Description Qty.
MF010 3/4"

Screw 4

Part# Description Qty.

5590 Knob

Part# Description Qty.
BUSH004 5/8" Spacer

Part# Description Qty.
HB030 1"

Bolt
