Vortech H3 I-5 Hummer - 2006-2008 - Manual (Page 23)

P/N: 4GN020-010
©2008 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
20OCT08 v2.0(4GNv2.0)
15

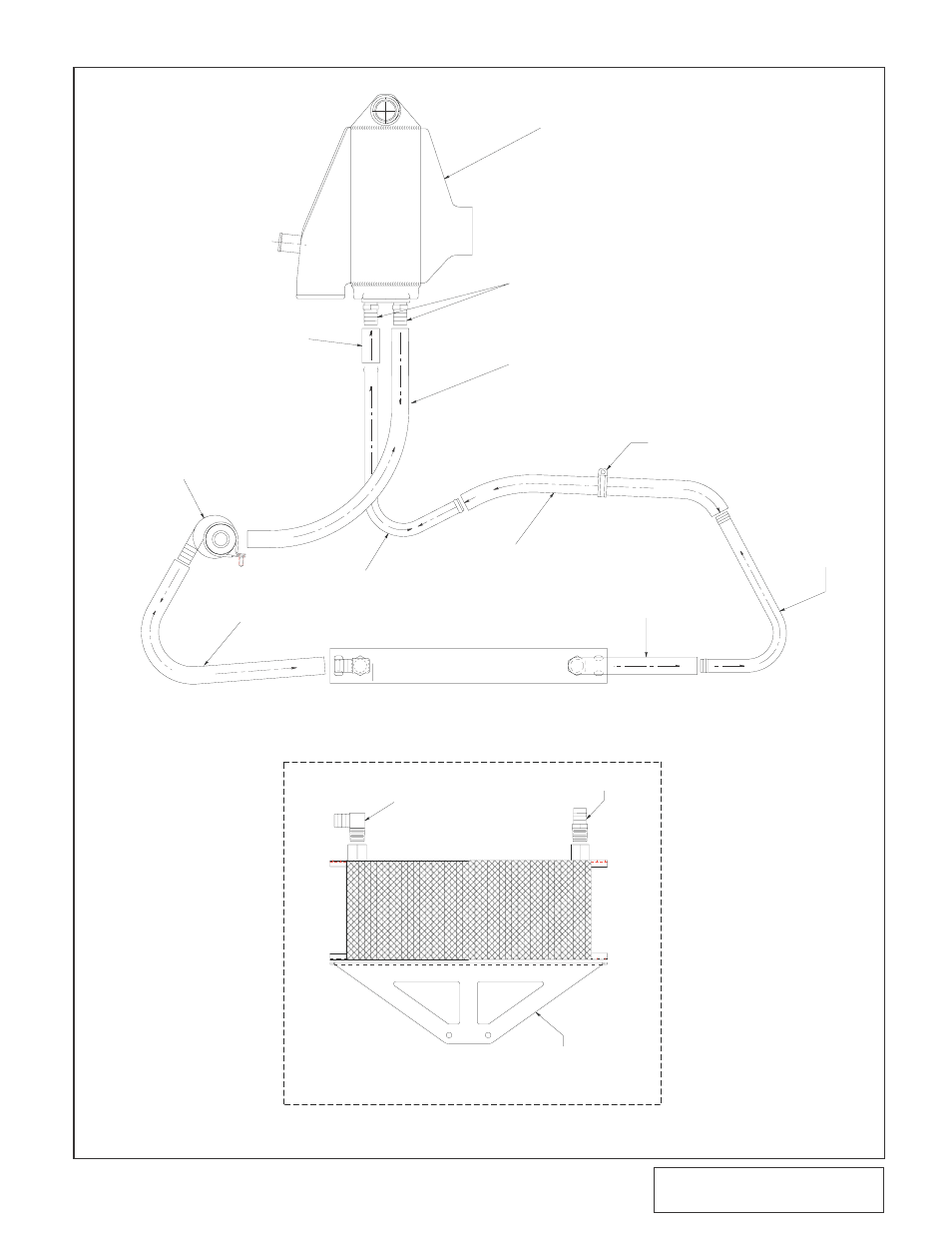

Fig. 7-H
CHARGE AIR COOLER
1/2"NPT TO 3/4" HOSE
BARB (7P500-078)
3/4" HOSE (7U038-000)
CUT TO FIT
APPROXIMA TELY 24"
ADEL CLAMP
ATTACHED TO
FRONT OF ENGINE
(4GV014-010)
FORMED
ALUMINUM
TUBE
(7U038-012)
90° x 4" x 12"
FORMED HOSE
3/4’ HOSE (7U038-000)
CUT TO FIT
APPROXIMA TELY 16"
(4GJ014-010)
3/4" FORMED
ALUMINUM TUBE
(7U038-150)
150 ° VENTED
HOSE
WATERCOOLER
(8N006-010)
WATER PUMP (8F001-402)
MOUNTED TO F AN SHROUD
WITH TWO ADEL CLAMPS
3/4" HOSE (7U038-000)
CUT TO FIT
APPROXIMA TELY 2.5"
TOP VIEW
90° 1/2"NPT TO 3/4" HOSE
BARB (7P500-026)
1/2"NPT TO 3/4" HOSE
BARB (7P500-026)
(8N010-240)
HEAT EXCHANGER MOUNTING BRACKET
MOUNTED BETWEEN CORE SUPPORT
AND HOOD LA TCH SUPPORT
FRONT VIEW
