ENGLISH

37

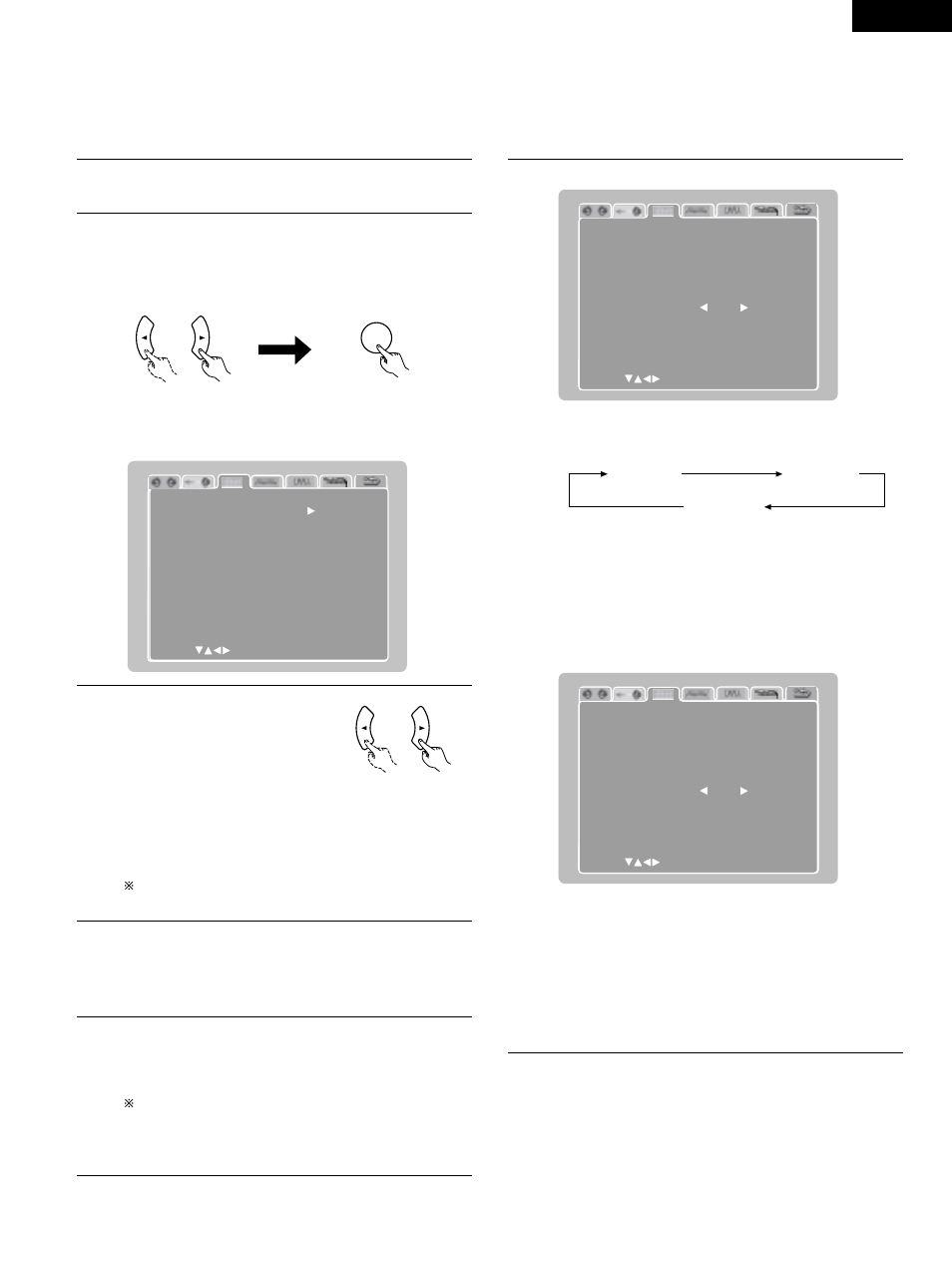

[3] Adjusting the channel level
• Adjust so that the playback levels of the different channels are equal.
• Make this adjustment by listening to the test tones output from the speakers at the listening position.
• By factory default all the levels of all the channels are set to 0 dB.
• This adjustment can also be made directly from the remote control unit. (CH SELECT Button)

1

If you are not at the system setting changing menu screen,
read step 1 and 2 on page 34.

2

At the system setting changing menu screen, use the

0

and

1

cursor buttons to select “Channel Level Adjustment”, then

press the ENTER button.

• The channel level adjustment screen appears.

3

Use the

0

and

1

cursor buttons to

select “Auto” or “Manual” for the

“Test Tone” mode.
• The selected setting is displayed

in yellow.

B

Auto:

Adjust the levels listening to test tones
automatically output from the different speakers.

B

Manual: Select the speakers from which the test tones are

output when adjusting the levels.

Detailed settings can be made when this is set to
“Manual” first.

CHANNEL LEVEL

TEST TONE MODE

LEVEL CLEAR

TEST TONE START

FRONT L

FINISH : ENTER BUTTON

SELECT :

SUBWOOFER

AUTO

MANUAL

FRONT R

0dB
0dB

0dB

ENTER

Remote control unit

Remote control unit

Remote control unit

4

When “Yes” is selected at “Level Clear”, the level settings
for all the speakers are set to 0 dB.

B

Yes: The level settings for all the speakers are set to 0 dB.

B

No:

The currently set level settings are retained.

5

Adjust the channel levels in the test tone mode.
Use the • and ª cursor buttons to select the “Test Tone
Start” mode, then use the

0

cursor button to select “Yes”.

The test tone is output.

Use the MASTER VOLUME control on the main unit or the
VOLUME buttons on the remote control unit to adjust the
volume of the test tone to a level at which it is easy to
make this adjustment.

6

q When “Auto” is selected at “Test Tone”:

• Test tones are automatically output from the speakers at

intervals of 4 seconds for two of the cycles shown below,
then at intervals of 2 seconds from the third cycle on.

Use the

0

and

1

cursor buttons to adjust the channel levels

so that the volume of the test tones output from the different
speakers sounds the same.
• The level changes in units of 1 dB each time the

0

and

1

cursor button is pressed.
The level can be adjusted in the range –12 dB to +12 dB.

CHANNEL LEVEL

TEST TONE MODE

LEVEL CLEAR

TEST TONE START

FRONT L

FINISH : ENTER BUTTON

SELECT :

SUBWOOFER

AUTO

YES

MANUAL

FRONT R

0dB

0dB

0dB

Front left

Front right

Subwoofer

w When “Manual” is selected at “Test Tone”:

Use the • and ª cursor buttons to select the speaker from

which the test tone is to be output, then use the

0

and

1

cursor buttons to adjust the channel levels so that the volume

of the test tones output from the different speakers sounds

the same.
• The level changes in units of 1 dB each time the

0

and

1

cursor button is pressed.
The level can be adjusted in the range –12 dB to +12 dB.

CHANNEL LEVEL

TEST TONE MODE

LEVEL CLEAR

TEST TONE START

FRONT L

FINISH : ENTER BUTTON

SELECT :

SUBWOOFER

AUTO

YES

MANUAL

FRONT R

0dB

0dB

0dB
