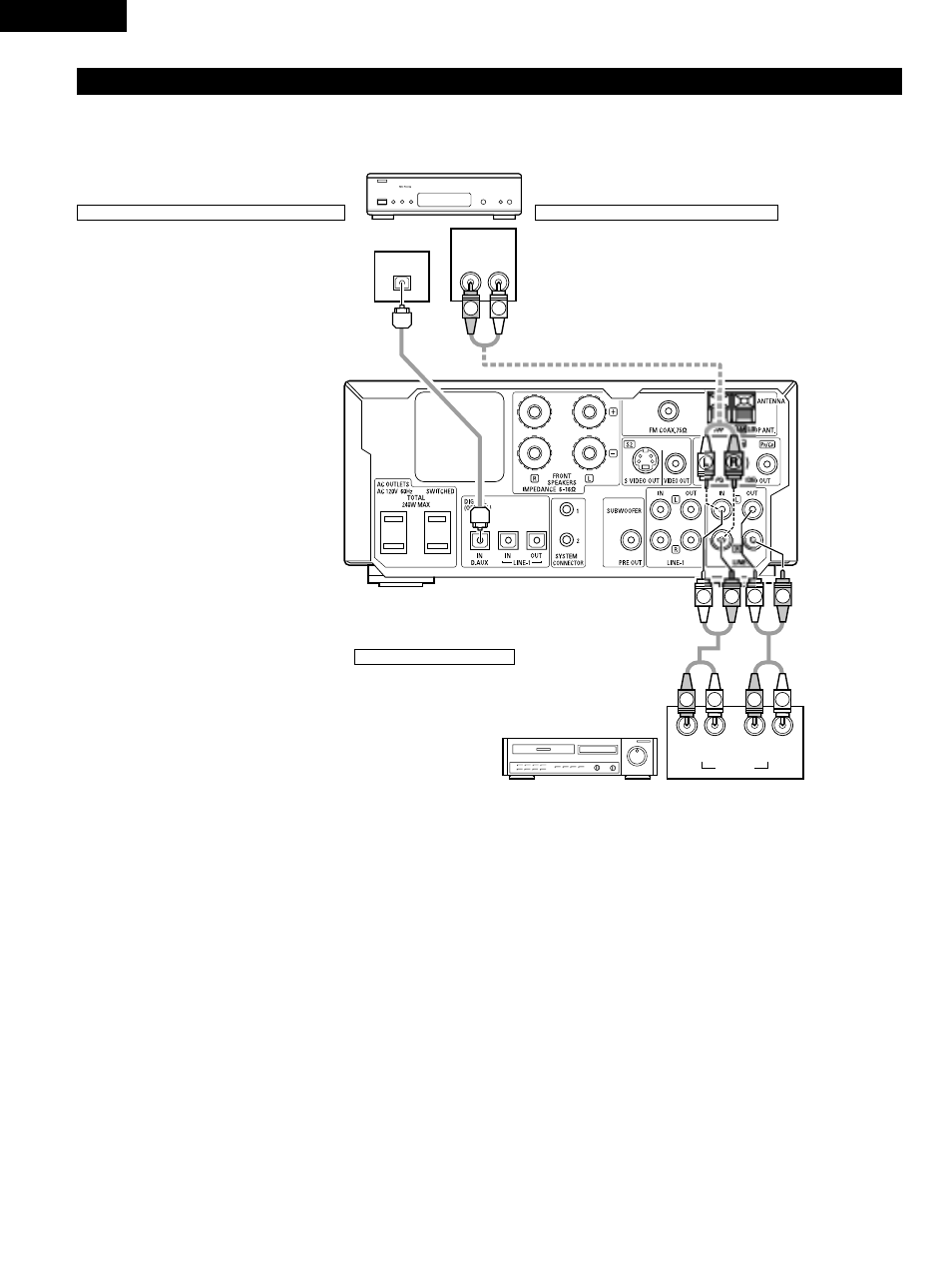

(2) Connecting the Audio Signals of a Digital Satellite Tuner and VCR

• Connect the video signals directly to the TV and switch the picture on the TV.
• When making connections, also refer to the operating instructions of the other components.

Connection to the optical digital input terminal

• Only audio signals are input to the optical digital input

terminal.

• Use a commercially available optical transmission

cable for connection to the optical transmission
terminal (OPTICAL).

Connection of a digital satellite/cable tuner

• For tuners equipped with an optical digital output terminal,

connect the digital output terminal to the DIGITAL D.AUX IN
terminal on the ADV-M51 using an optical transmission cable.

• To connect the audio output terminals, use whatever of the

ADV-M51’s LINE-1 or LINE-2 terminals are open.

Connection of a video deck

• Connect the video deck’s audio output and audio input

terminals to whatever of the ADV-M51’s LINE-1 or LINE-2
terminals are open using pin-plug cords.

Video deck

Digital satellite/cable tuner
