8 Installation
StorCase Technology, Inc. InfoStation 4-Bay User's Guide - Rev. C01
Carrier
Handle
Key
Lock
IFS4_2

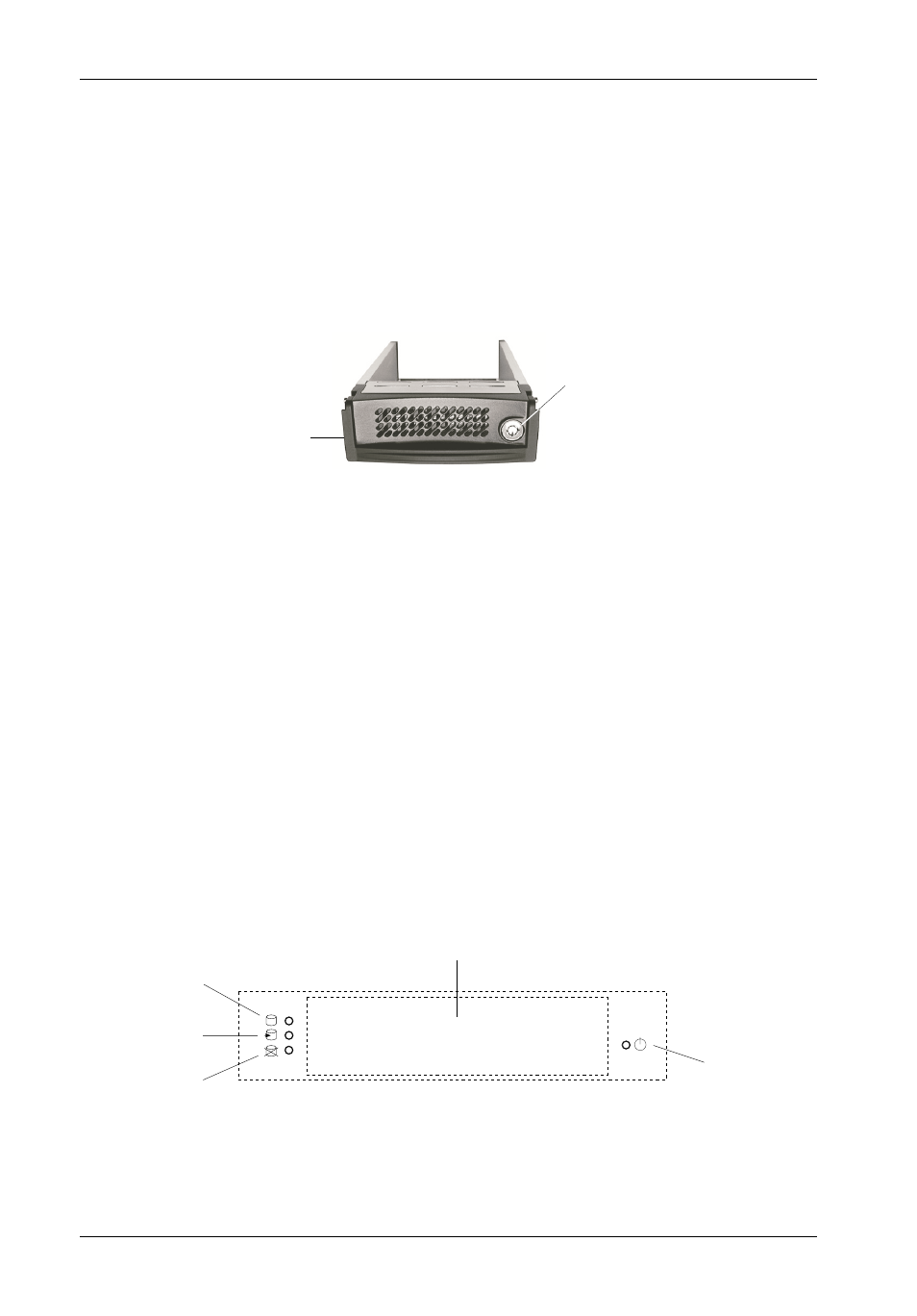

Figure 4: Drive Carrier
Figure 5: InfoStation Drive Bay Interface Panel
Drive Bay Interface Panel
Each InfoStation drive bay provides a User interface for individual bay operation (Figure 5).
Drive Activity LED
Drive Ready LED
Drive Fault LED
Insert/Remove
Push Button
Drive Bay
Inserting a Drive Carrier (without a Drive Installed)
Lift the carrier handle while inserting drive carrier into chassis. Push down on carrier handle
once carrier is pushed all the way in. The carrier should latch into place if inserted correctly.
Lock the key lock to prevent unauthorized removal or installation of drive carrier (locking the
key lock is not required for drive carrier operation).
