• Power Supply LED -
Green - Steady glow indicates normal power supply operation.
No glow indicates no A/C power.
Amber - Indicates undervoltage (DC power) conditions or abnormal DC voltage
range.
• Drive Carrier(s) - Accommodate up to four (4) 3.5" half-height single-connect SCA
devices. Backplane design with direct-connect SCA connectors eliminates cable
connections to SCSI drives, increases data integrity, and supports drive hot swap-
pability.
• Key Lock(s) - Prevent unauthorized removal or installation of the carrier(s).
NOTE: The key lock is only to prevent unauthorized removal or installation of the
drive carrier. Locking the key lock is not required for drive carrier oper-
ation.
• Insert/Remove Push Button(s) - Allow the drive carriers to be removed and
installed at anytime (refer to sections "Inserting a Drive into the Chassis" and "Re-
moving a Drive from the Chassis" for further information).

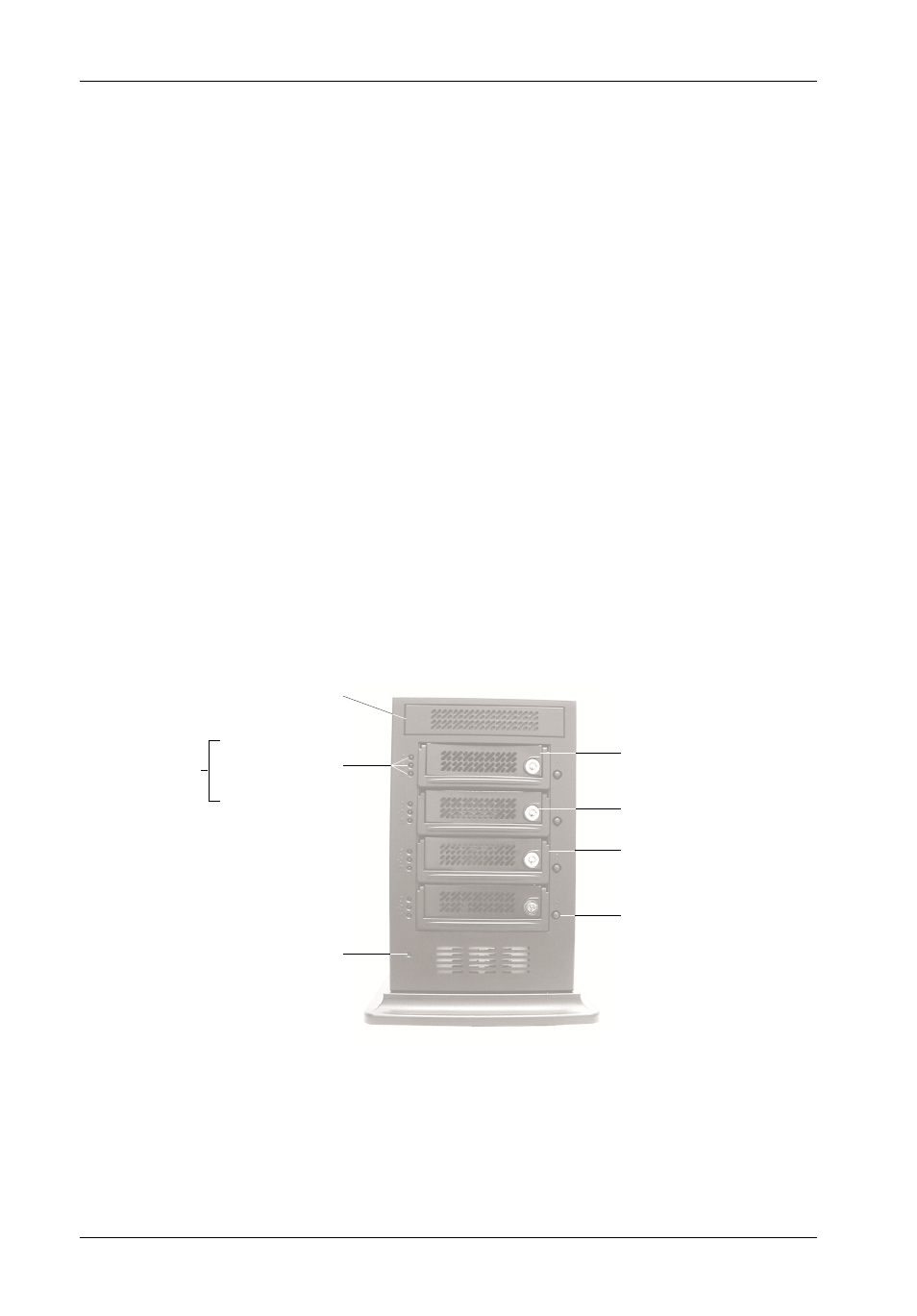

Figure 2: InfoStation Front Panel
LEDs
Drive Carrier
Key Lock
Carrier Handle
Insert/Remove
Push Button
Power
Supply LED
Filler Panel
IFS4_9
Drive Ready
Drive Activity
Drive Fault
