14

Installation

StorCase Technology, Inc.

Encrypted DE110 User's Guide - Rev. A01

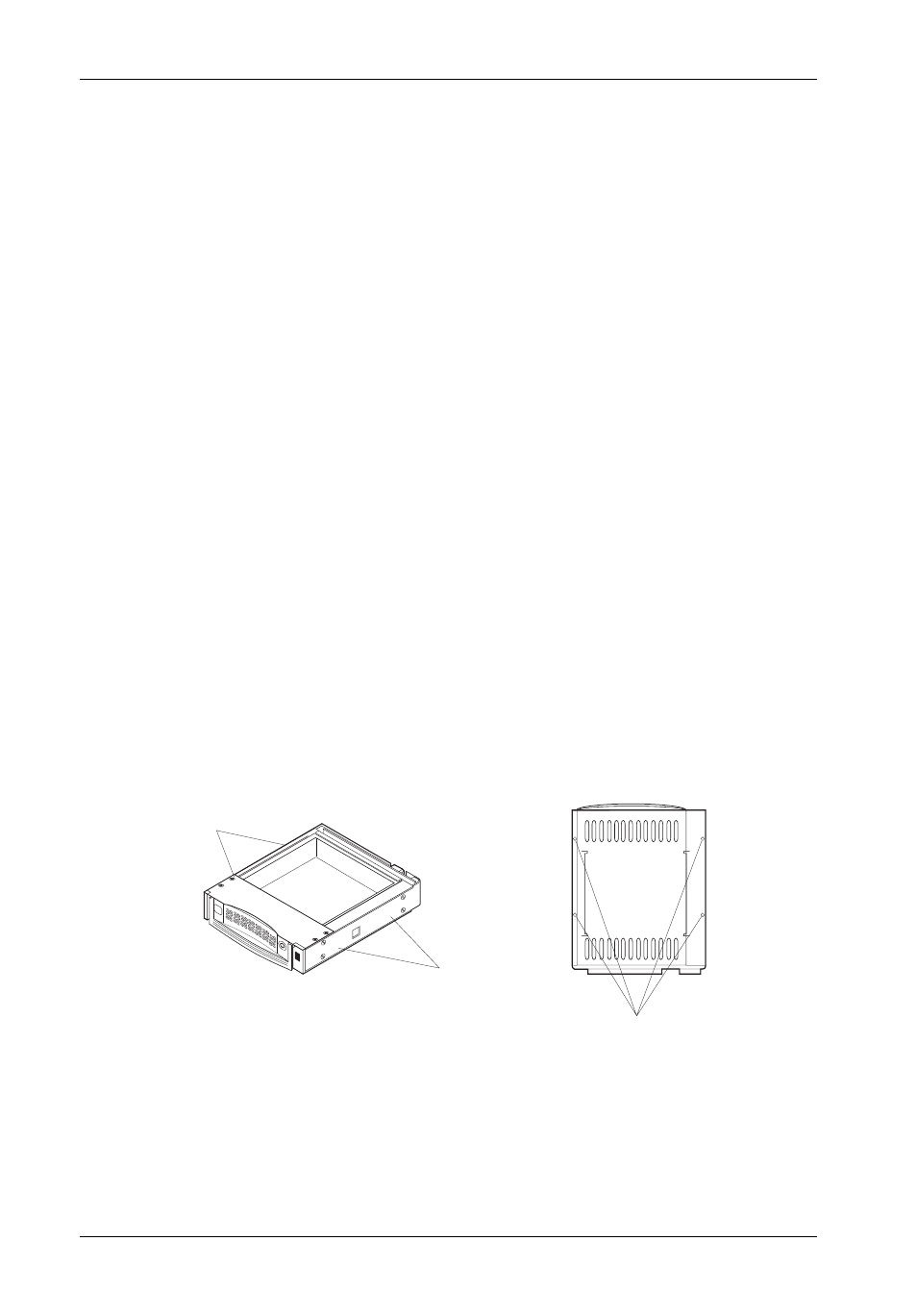

Figure 9: Receiving Frame Mounting Holes

Mounting

Holes

(Right)

Mounting

Holes

(Left)

0837

Mounting

Holes

(Bottom)

Front of Unit

Installing the Receiving Frame

The drive should be installed into the carrier before installing the receiving frame into the

mounting bay of a computer or expansion chassis.

1.

Turn OFF power to the computer.

2.

Open the computer system according to the manufacturer’s instructions. If necessary,

temporarily remove any expansion boards that may make installation difficult.

3.

With the drive carrier locked in place inside the receiving frame, install the DE110 into

the 5.25” drive opening in the computer or expansion chassis. Use the appropriate

guides to position the Data Express, and fasten it into place with the four (4) M3 Pan

Hd. screws provided. Figure 9 illustrates the location of the mounting holes. Mounting

holes are provided on each side and the bottom of the receiving frame to accommodate

a variety of mounting configurations. Use the mounting holes which best suit the

computer or expansion chassis configuration. Note that bottom mounting holes require

self-tapping screws (not provided).

4.

Adjust the front of the receiving frame so the carrier slides freely in and out on the

receiving frame guides. The position of adjoining peripheral units may require adjust-

ment.
