Introduction
StorCase Technology, Inc.
Encrypted DE110 User's Guide - Rev. A01

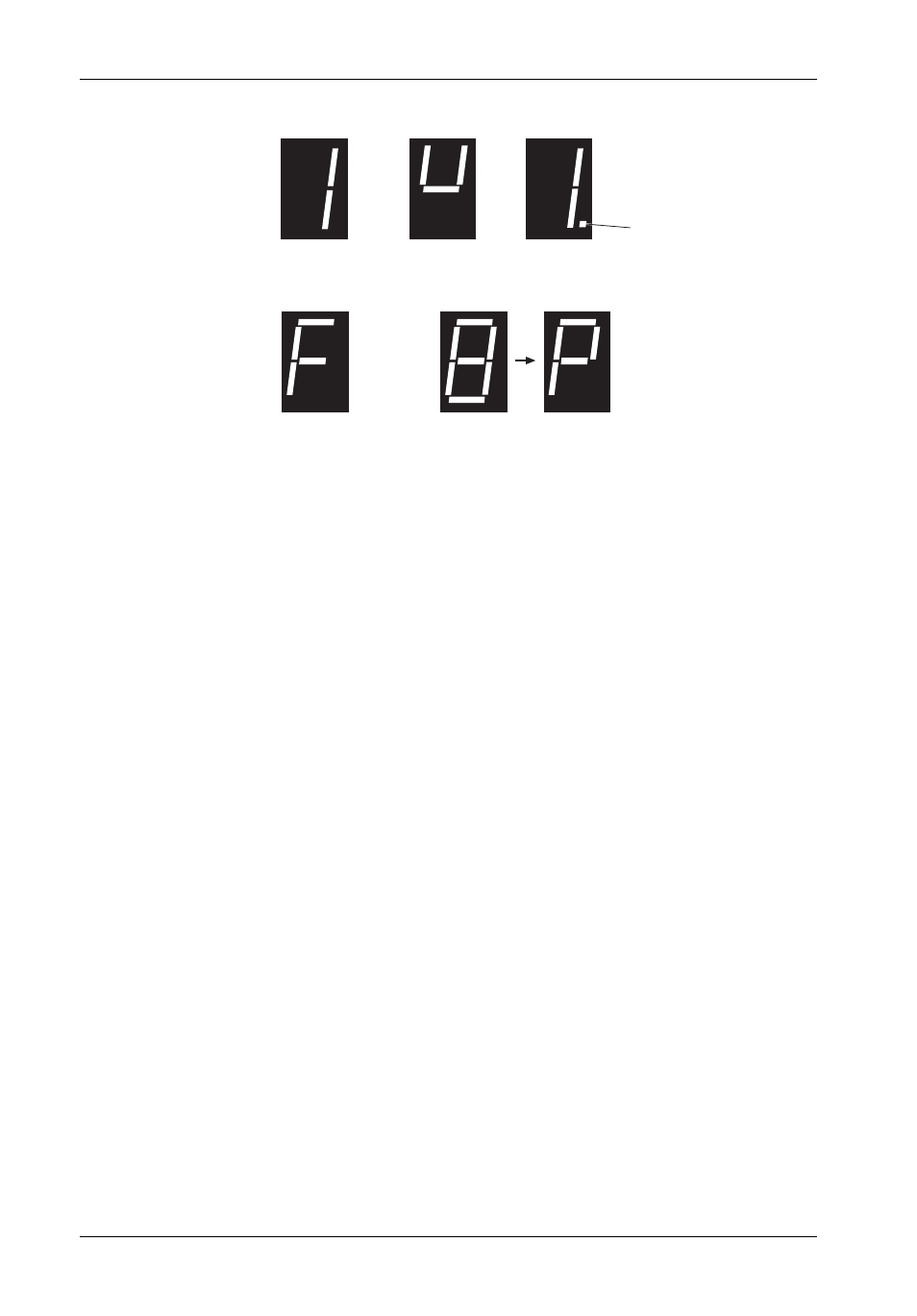

Figure 3B: Receiving Frame Unit ID Number and Activity Display
Carrier Installed
(Unlocked)
Carrier Installed
(Locked)
Carrier Removed
from Receiving Frame
The number "1" shown above is for illustration purposes only.
It can be 0 (for Master) or 1 (for Slave).
Activity
Indicator
Security Key
Error
Encryption Mode is BYPASSED
(Security Disabled)
LED Descriptions
6
à
6
Blinking digits immediately after system power up indicate 66 MHz rate
1
а
0
а
0
Blinking digits immediately after system power up indicate 100 MHz rate
1
а
3
а
3
Blinking digits immediately after system power up indicate 133 MHz rate
u
Carrier is unlocked
F
Electronic security key error
0
Blinking indicates drive is powering up (if carrier is locked) or powering
down (if carrier is unlocked) as Master in Encryption/Decryption mode
1
Blinking indicates drive is powering up (if carrier is locked) or powering
down (if carrier is unlocked) as Slave in Encryption/Decryption mode
B
à
P
à
0
Blinking "B", "P" & "0" indicates drive is powering up (if carrier is locked)
or powering down (if carrier is unlocked) as Master in Bypass mode
B
à
P
à
1
Blinking "B", "P" & "1" indicates drive is powering up (if carrier is locked)
or powering down (if carrier is unlocked) as Slave in Bypass mode
