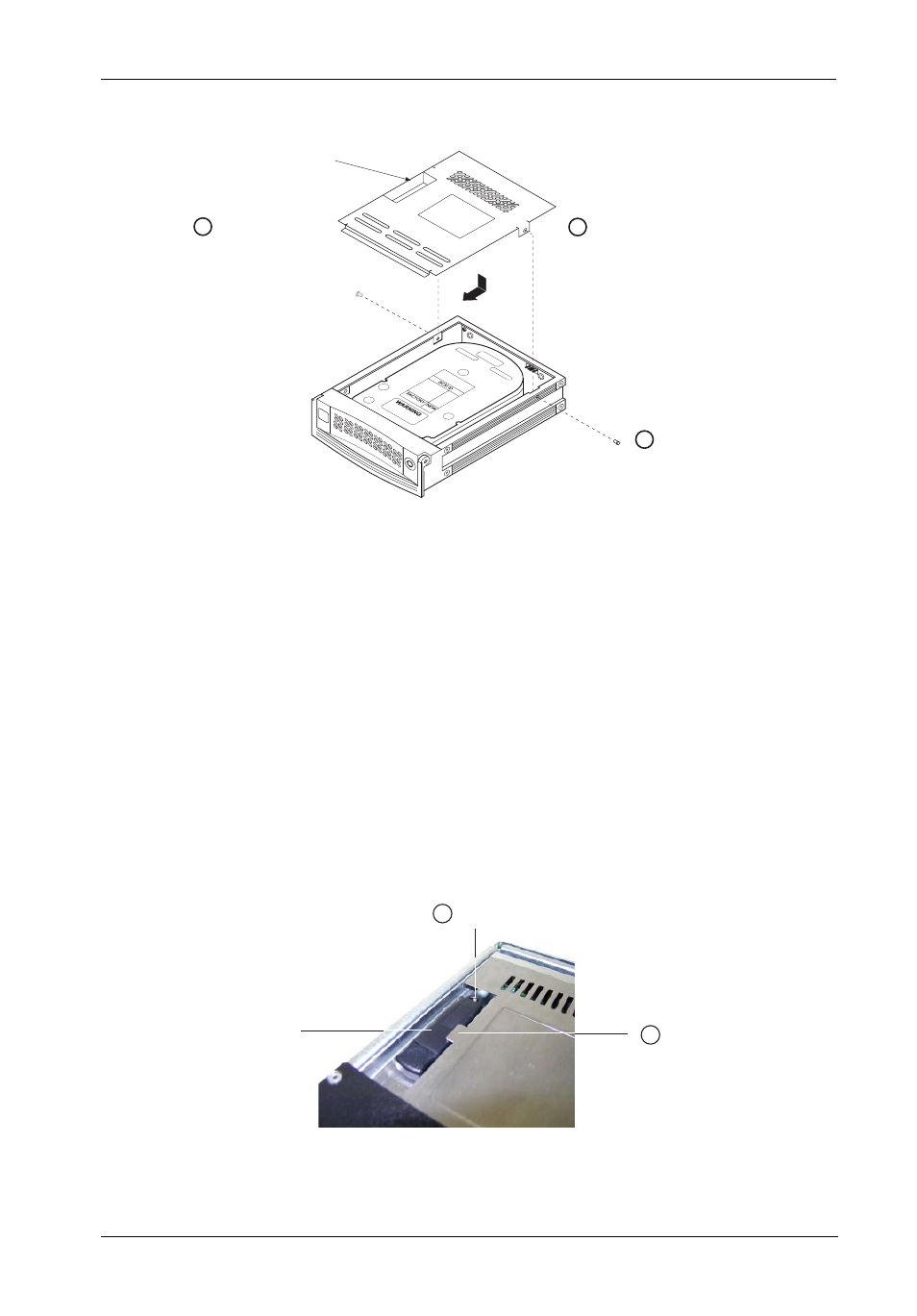

Figure 8A: Drive Cover Installation
2 Slide the cover
towards the back
of the carrier
1 Insert this end
into the carrier
first
3 Secure with #6-32
Phillips Flat Hd.
screws (2 Total)
NOTE: Electronic security key can be
stored here for easy access
Figure 8B: Drive Cover Key Slot
Drive Cover Key Slot
The electronic security key can be safely stored in slot located on the drive carrier cover
(Figure 8B) for easy access.
1. Insert the security key into the slot by mounting onto the key peg first.
2. Once mounted onto the peg, manuever the rest of the key into the slot until it rests
securely under the retention tab.
Electronic
Security Key
Retention
Tab
2
Key Peg 1
