DE100i-A66 User's Guide - Rev. A00 StorCase Technology Inc.
Installation 11
Drive Carrier
Guide
Receiving
Frame
Unit Select
Rotating Switch
Drive Carrier
(removed)
Unit Number
Display
Lock
and DC
Power
Switch
Front of Unit
0087

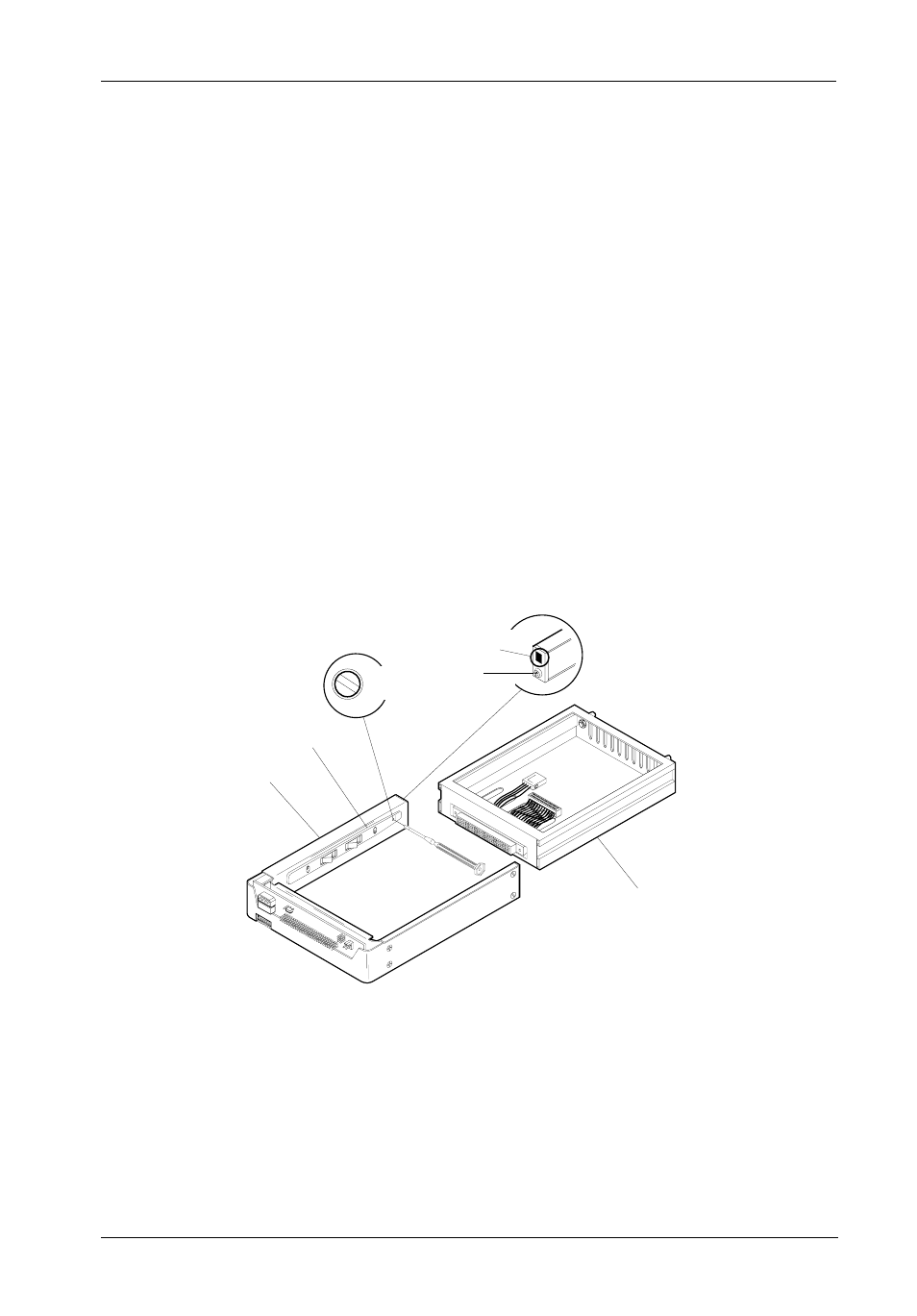

Figure 10: Unit ID Select Switch Location
WARNING: Unlocking the carrier unit switches DC power off to the drive. Since
disk drives require a short amount of time to spin down, allow about 15
seconds before pulling the carrier unit out of the receiving frame to avoid
possible damage to the drive.
3. Use the alignment tool supplied with the DE100i-A66 to select the ID number of
the disk drive. Refer to Figure 10 for the location of the ID Select Switch inside
the receiving frame. Table 2 lists the valid unit numbers available for the drive.
4. After you have selected an appropriate unit number, replace the DE100i-A66
carrier in the receiving frame, and LOCK IT IN PLACE.
NOTE: The lock on the DE100i-A66 receiving frame functions as a lock and
a DC power switch for the carrier unit. The lock must be engaged
in order to supply power to the carrier and installed drive.
5. Reboot the computer. The new disk is now ready for use, although it may have
to be formatted or initialized prior to use with your operating system and
applications software.
