DE100i-A66 User's Guide - Rev. A00 StorCase Technology Inc.
Installation 7
DE100i-A66 INSTALLATION
Installing the Drive into the Carrier
While performing the steps in this section, work on a soft surface to prevent excessive shock
to the drive being installed. Also refer to the manufacturer's documentation provided with the
drive.
NOTE: A #2 Phillips screwdriver will be required during this procedure.
1. Remove the drive from its protective packaging.
2. Plastic Drive Bezel: If the drive came equipped with a plastic front bezel, it
must be removed before installing the drive into the drive carrier.
3. Master/Slave Drive Selection: In most cases, the drive will be factory-
configured as a Master Ultra ATA/66 drive using a jumper plug on the drive itself.
No configuration changes are required. For multiple drive configurations, it is
necessary to set the first Ultra ATA/66 drive as Master and the second Ultra
ATA/66 drive to Slave. This can be done by changing the jumper on the Ultra
ATA/66 drive itself (refer to your drive manufacturer documentation).

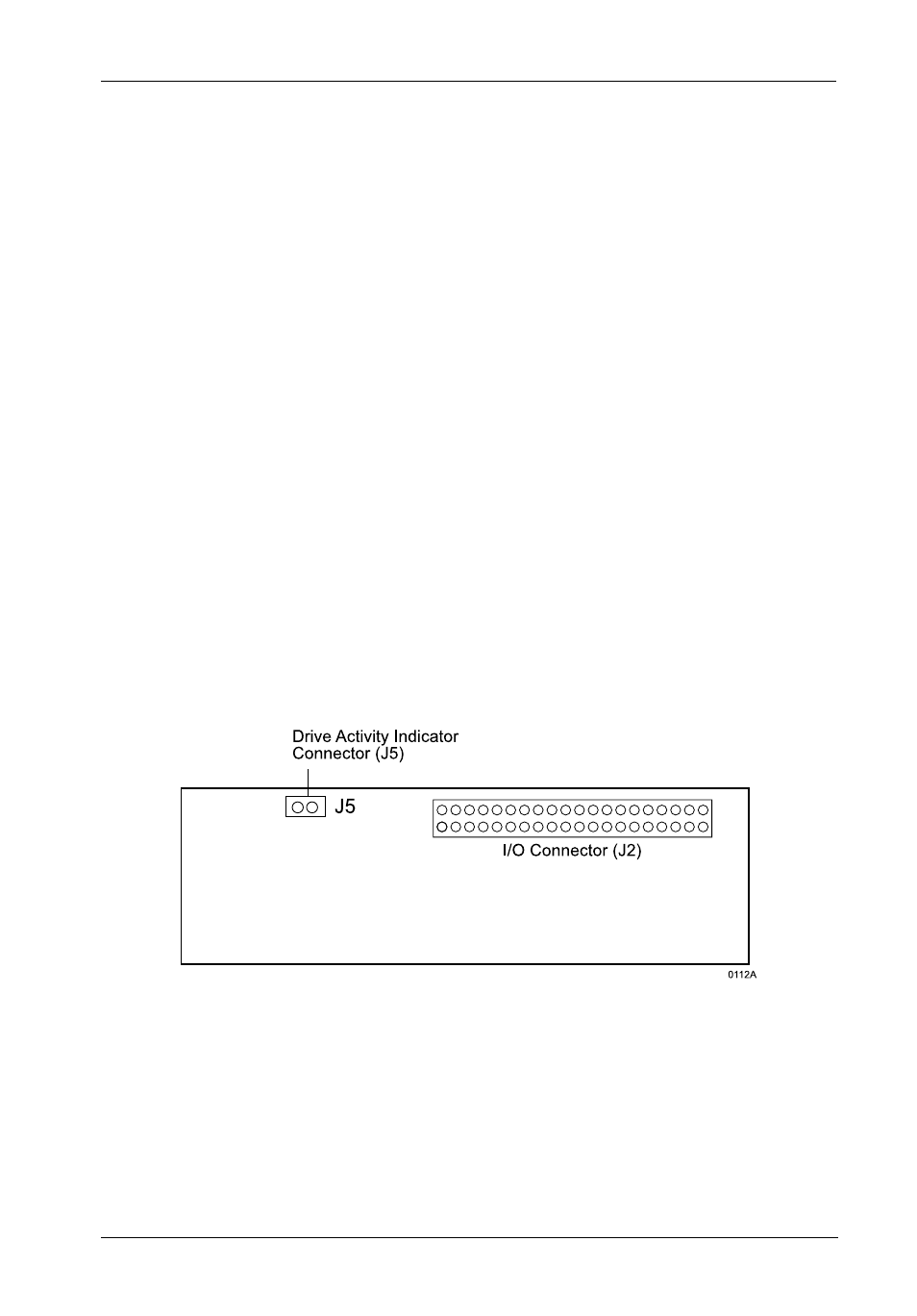

Figure 6: Drive Carrier Circuit Board
