10 Installation
StorCase Technology Inc. DE100i-A66 User's Guide - Rev. A00

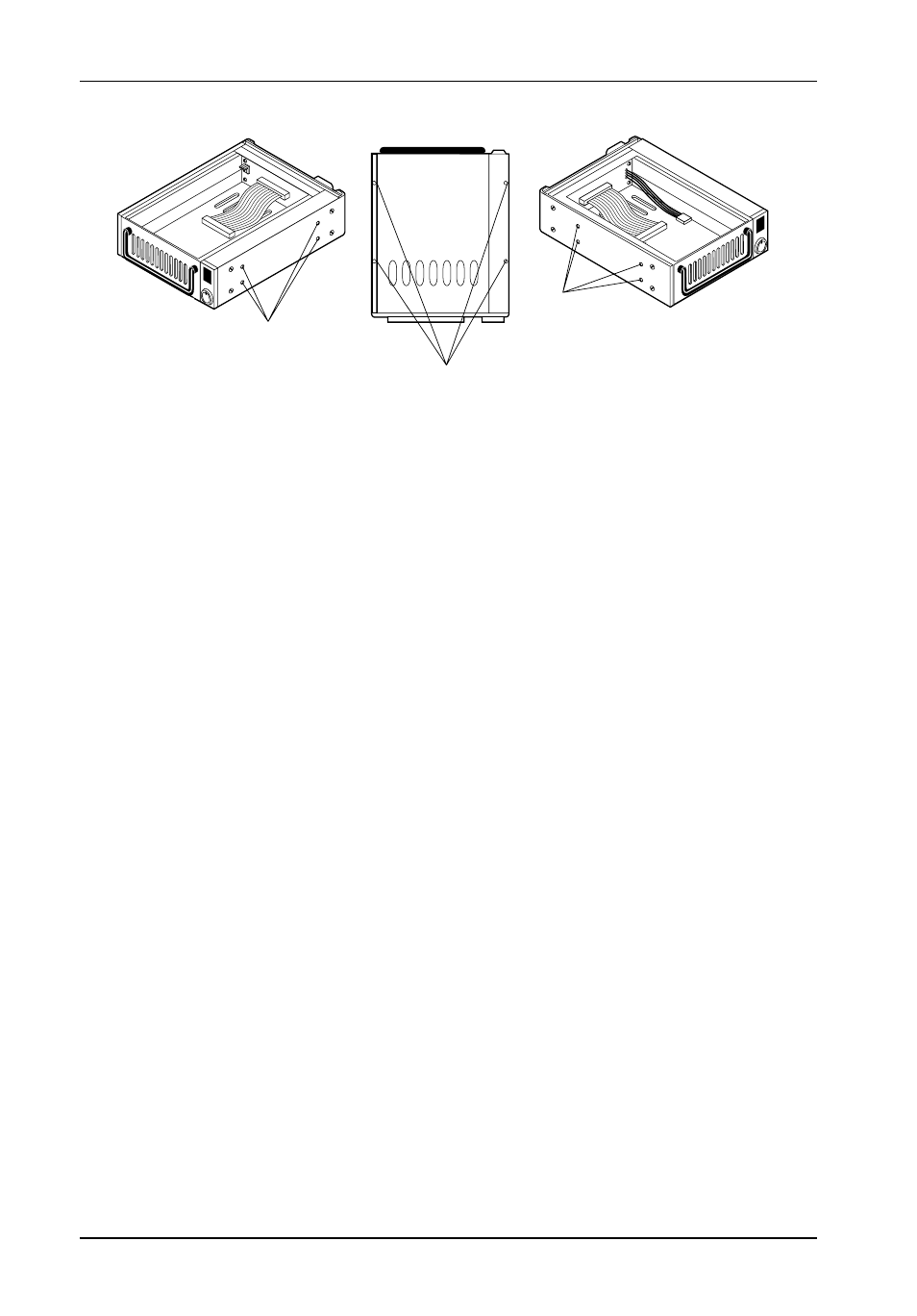

Mounting
Holes (Right)
Mounting
Holes (Bottom)
Front of Unit
Mounting
Holes (Left)
0086
Figure 9: Receiving Frame Mounting Holes
6. Connect the I/O cable from the host adapter to the receiving frame. The Pin 1
indicator on the cable must be properly aligned. Refer to Figure 5 for the correct
Pin 1 location.
7. Connect the power cable from the DC power supply in the computer or expansion
chassis to the power connector on the DE100i-A66 receiving frame. Refer to
Figure 5 for the DE100i-A66 receiving frame power connector location.
8. Replace any expansion boards that may have been removed earlier. Replace
the system cover according to the manufacturer’s instructions.
9. Reconnect any system or peripheral cables removed earlier.
10. Turn on power to the computer. If the installation has been successful, and all
the cables have been properly attached, the system should boot normally.
Although the computer may not recognize the DE100i-A66 yet, the front panel
display on the DE100i-A66 receiving frame should illuminate.
11. The new drive may need to be formatted or initialized prior to use with the
operating system and applications software. Refer to the drive and/or computer
manufacturer's documentation for formatting information.
Selecting the Unit ID Number
1. Verify that power is turned ON to the DE100i-A66 receiving frame by turning
on your computer. A number will appear in the unit display window if the carrier
is locked in place.
2. Unlock the DE100i-A66 drive carrier and remove it from the receiving frame.
A "u" will be displayed initially when the unit is unlocked but will return to a
number when the carrier is removed from the receiving frame.
