Installation 9
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis.
NOTE: Use a #2 Phillips screwdriver during this procedure.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installa-
tion difficult.
3. Select the Master/Slave configuration on the rear of the receiving frame by
placing a jumper on the appropriate (J5) pins (Figure 8). Remove the jumper
if you wish to use the Unit Select switch on the receiving frame to configure
the Master/Slave drive selection. Refer to Table 2 for further information.

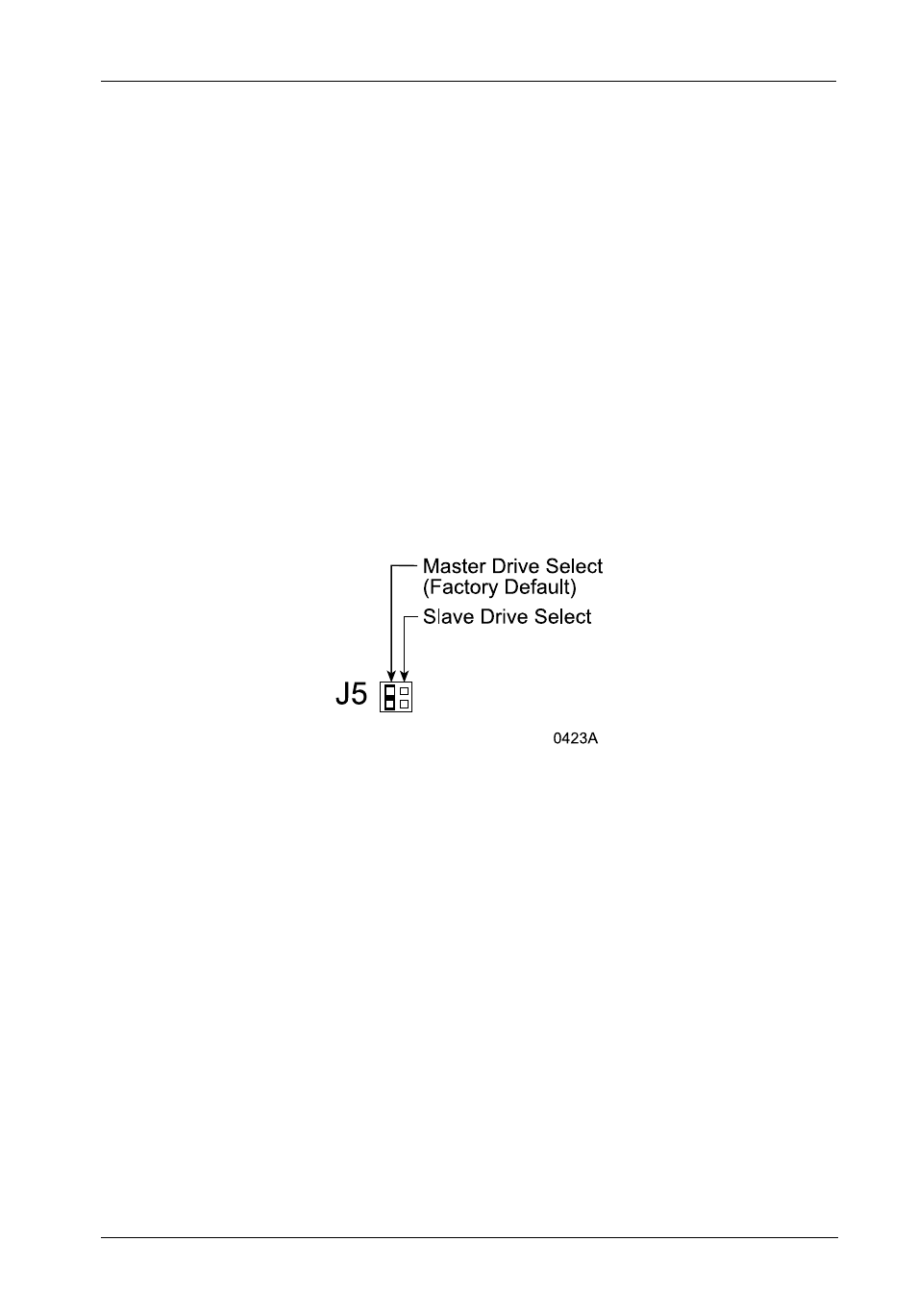

Figure 8: Master/Slave Configuration Jumper J5
4. With the drive carrier locked in place inside the receiving frame, install the DE100i-
A66 into the 5.25” drive opening in the computer or expansion chassis. Use
the appropriate guides to position the Data Express, and fasten it into place with
the four (4) #6-32 x 1/4” screws provided. Figure 9 illustrates the location of
the mounting holes. Mounting holes are provided on each side and the bottom
of the receiving frame to accommodate a variety of mounting configurations.
Use the mounting holes which best suit the computer or expansion chassis
configuration. Note that bottom mounting holes require self-tapping screws (not
provided).
5. Adjust the front of the receiving frame so the carrier slides freely in and out on
the receiving frame guides. The position of adjoining peripheral units may require
adjustment.
Installing the Receiving Frame
