StorCase Technology, Inc. DE75i-A100 User's Guide - Rev. D02
2 Introduction
Package Contents
The DE75i-A100 package contents include the following items. If any items are missing or
damaged, contact your StorCase dealer for a replacement.
1. Drive Carrier
2. Low-Profile Filler Bracket (Installed)
3. Receiving Frame
4. #6-32 x 1/4" Phillips Machine Hd. Screws
(Attach Receiving Frame to Computer)
5. Jumper Plugs
6. Drive Lock Keys

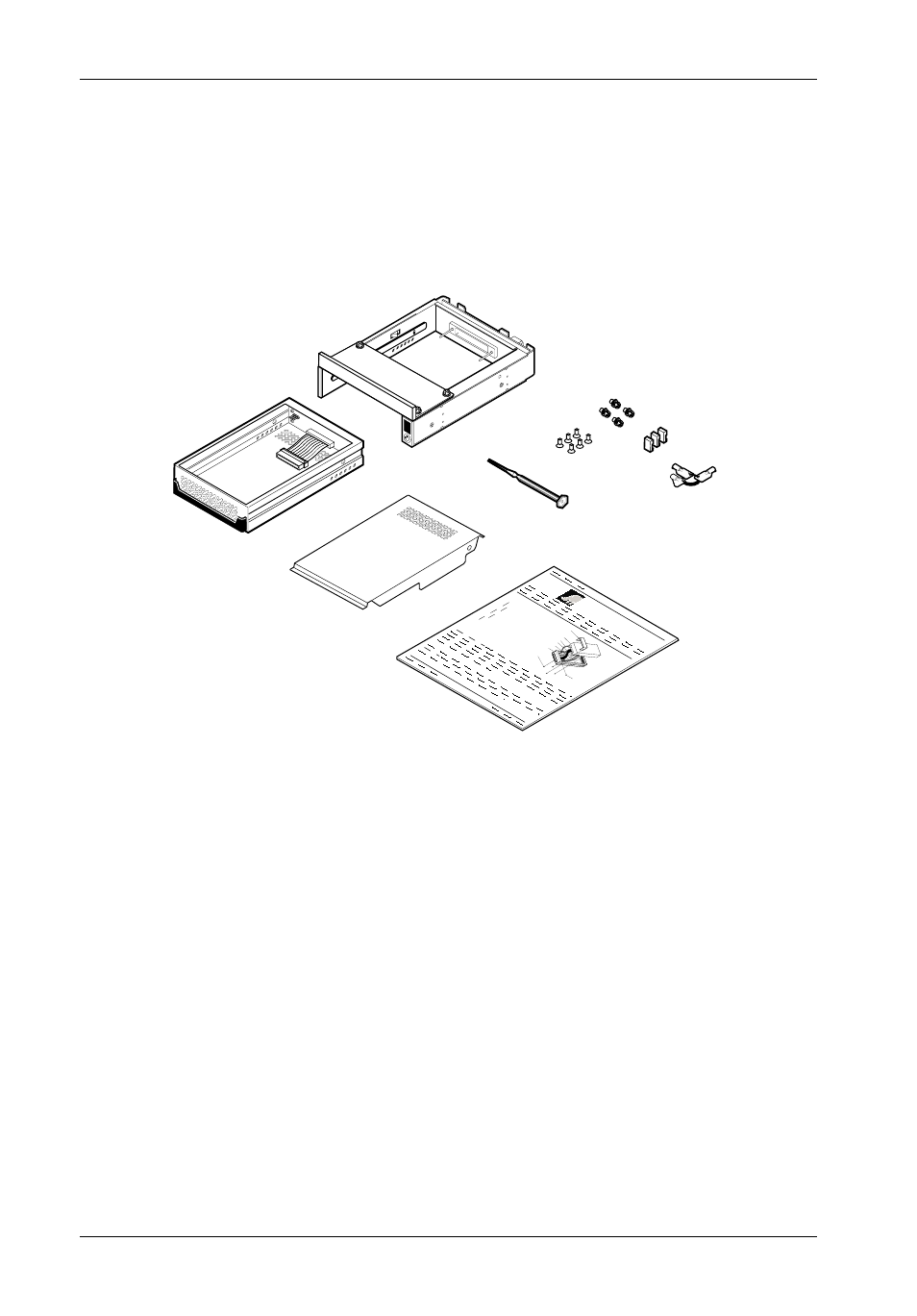

Figure 1: Package Contents
7. #6-32 x 3/16" Phillips F.H. Screws
(Attach Drive and Cable Cover to
Carrier)
8. Alignment Tool
9. Insert Sheet
10.
Drive Cover
4
7
10
5 1
3
8
9
6
2
Dat
a Express
Drive C arrier
Disk D rive (Not In cluded ) Power Cable I/O C able
Drive M ountin g
Hardw are (4 ea)
Phillip s # 6-3 2 x
3/16 F lat H D
ID Sele ct Cab le
0151
Cable Cover (Provid ed)
Cable Cove r Screw s (2 p lcs) # 6-32 x 3/1 6 Flat H D
0601b
