DE75i-A100 User's Guide - Rev. D02 StorCase Technology, Inc.
Installation 11
Installing the Receiving Frame
NOTE: Use a #2 Phillips screwdriver during this procedure.
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of the computer chassis.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If neces-
sary, temporarily remove any expansion boards that may make installation difficult.
3. Select the appropriate Master/Slave configuration on Option Pins JP6 (ID0 & ID1)
located on the receiving frame motherboard (Figure 4).
4. With the drive carrier locked in place inside the receiving frame, install the
DE75i-A100 into the 5.25” drive opening in the computer or expansion chassis. Use
the appropriate guides to position the DE75i-A100, and fasten it into place with the
four (4) #6-32 Phillips screws provided. Figure 9 illustrates the location of the
mounting holes. Mounting holes are provided on each side and the bottom of the
receiving frame to accommodate a variety of mounting configurations. Use the
mounting holes which best suit the computer or expansion chassis configuration.
Note that bottom mounting holes require self-tapping screws (not provided).

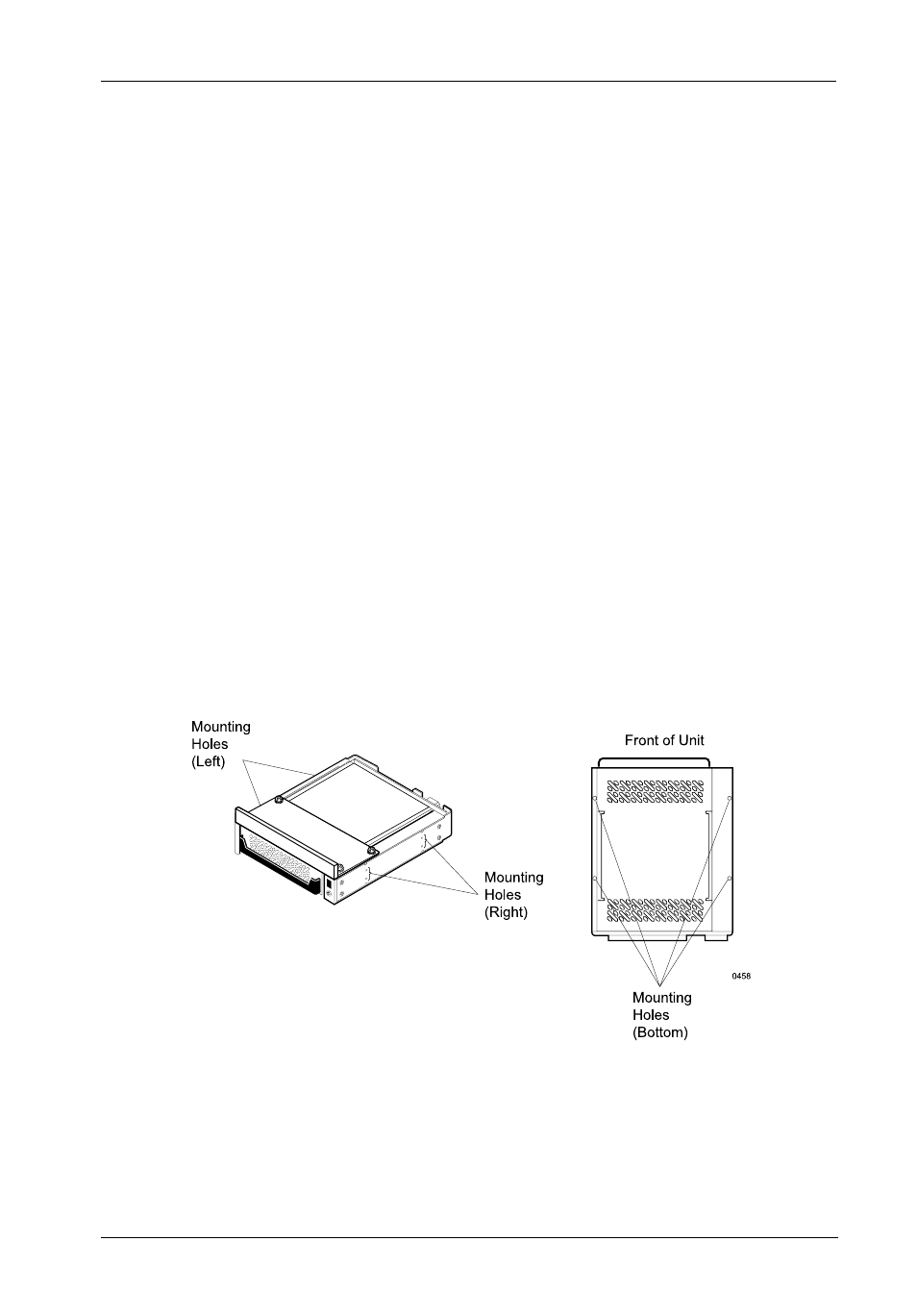

Figure 9: Receiving Frame Mounting Holes
