Chapter 7: Testing Your Module
47

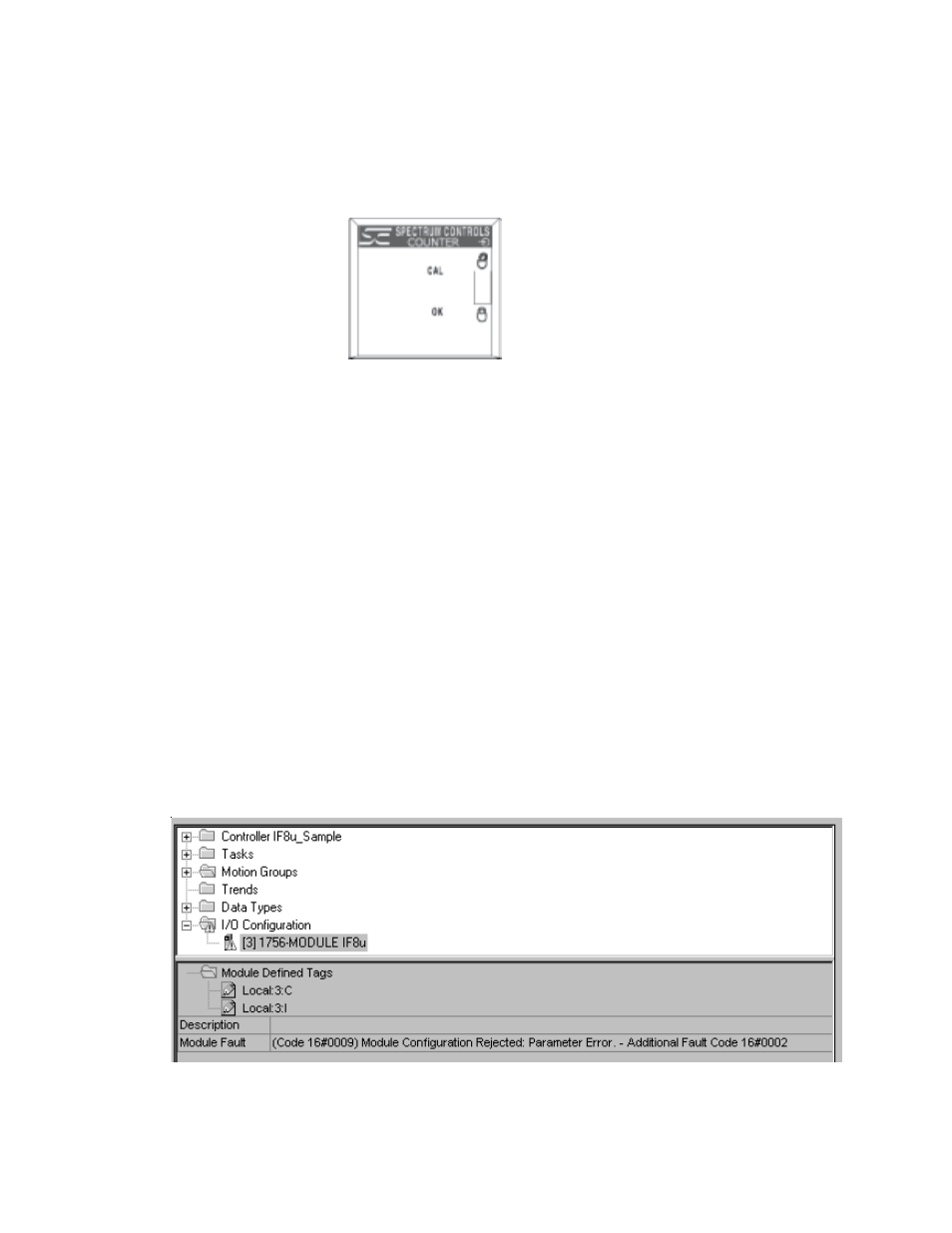

The following LED display is used with ControlLogix analog input
modules:
Using RSLogix 5000
to Troubleshoot
Your Module
In addition to the LED display on the module, RSLogix 5000 will alert you
to fault conditions. You will be alerted in one of three ways:
· Warning signal on the main screen next to the module-This occurs when
the connection to the module is broken
· Fault message in a screen’s status line · Notification in the Tag Editor -
General module faults are also reported in the Tag Editor. Diagnostic faults
are only reported in the Tag Editor
· Status on the Module Info Page
The screens below display fault notification in RSLogix 5000.
