Chapter 5: Channel Configuration, Data, and Status
31
B

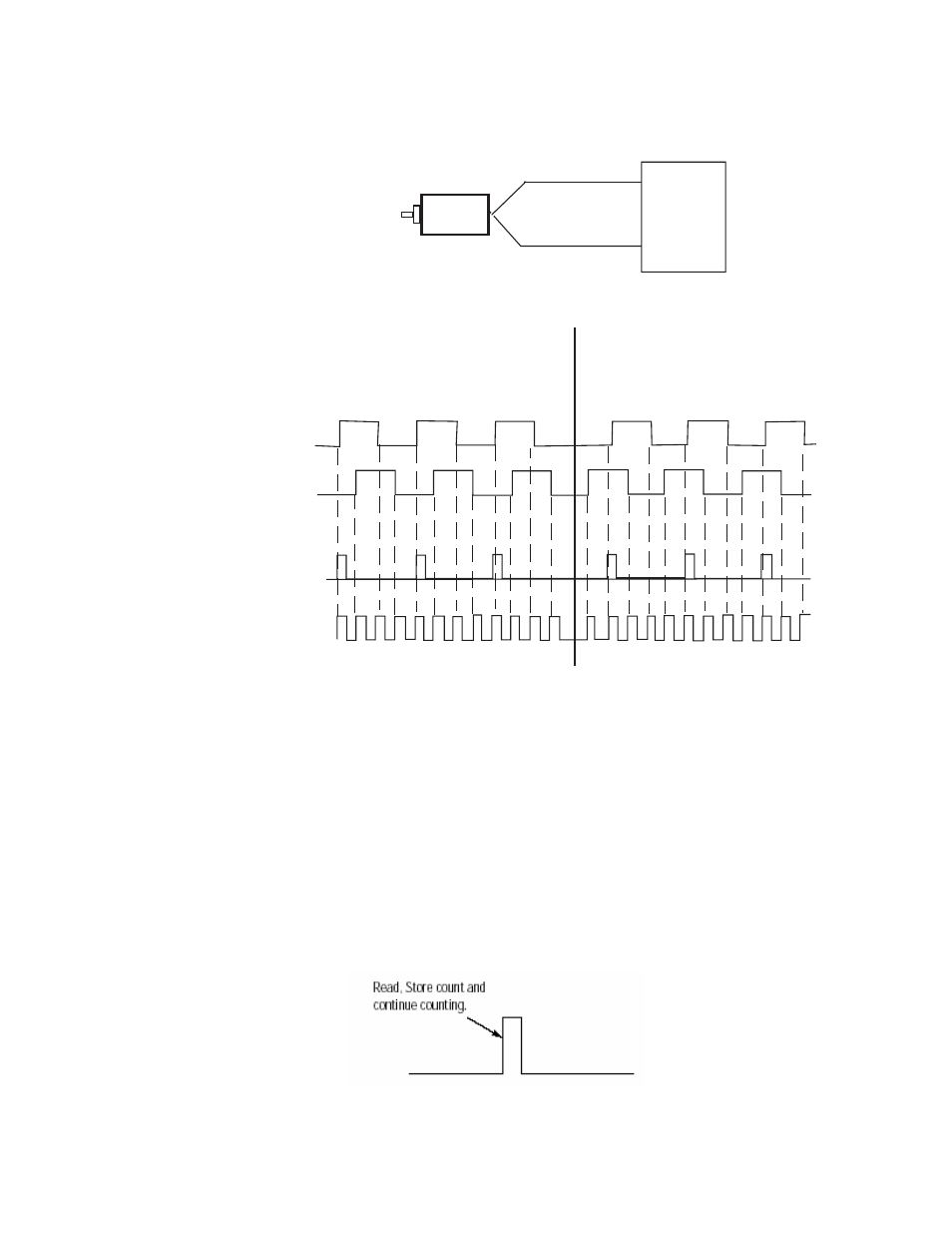

Forward Rotation Reverse Rotation
A
Input A
Input B
Quadrature
Encoder
B
A
x1 Count
x4 Count
1 2 3 2 1 0
1 2 3 4 5 6 7 8 9 10 11 12 11 10 9 8 7 6 5 4 3 2 1 0
StorageMode[x] 0-4 INT (C)
This mode determines how the gate behavior effects counter behavior.
0 = no store mode
1 = store and continue mode
2 = store, wait, and resume mode
3 = store and reset, wait, and start mode
4 = store and reset, and start mode
The behaviors are characterized as follow:
StorageMode = 0 - No gate activity stored
StorageMode = 1 - Read, Store count, and continue counting
