Chapter 4: Programming Your Module

Step 3-

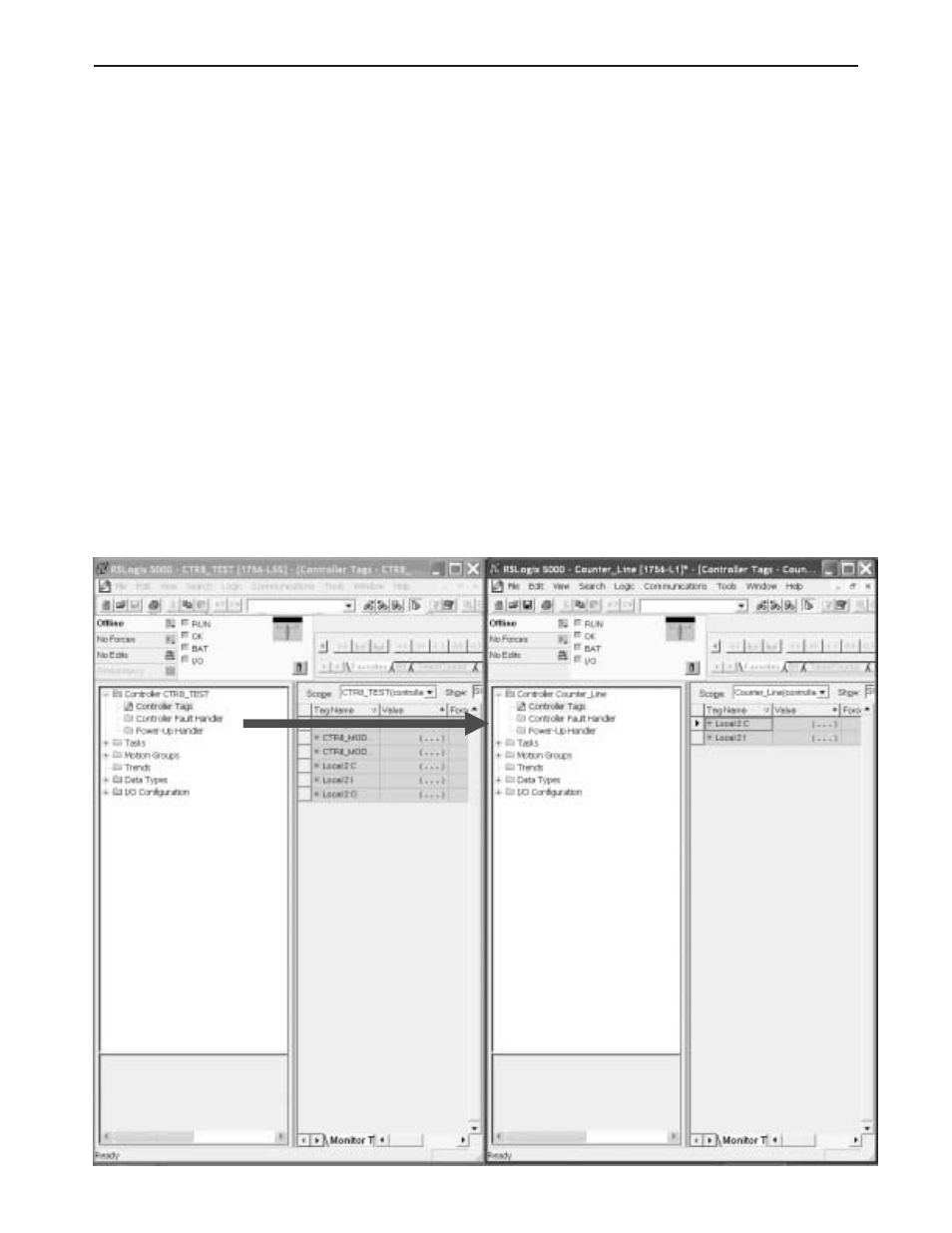

Drag and drop the controller configuration tags from the

sample project into your project.

1. Right click on the Controller Tags item of the sample project and select
edit.

2. Right click on the Controller Tags item of your project and select edit.

3. Scroll down to the Controller tags of the sample project and select all the
tags by highlighting them.

4. Drag and drop these tags into your project.

Note: CTR8_Config and CTR8_Input contain the configuration, data and
status tags for the CTR8 module. The other tags are used for performing
various functions to your module via ladder logic.

Note: Be sure all tags are displayed before moving them. Select Display All
from the Edit drop down window.

Note: The “Local:3:I” and “Local:3:C” tags are not copied.
