Installation – SOR 1510 Side Mounted Level Switch User Manual
Page 2
2/8
Form 451 (11.13) ©SOR Inc.
Installation
MD Remote Option
(includes plundger, 20 foot cable and two crimps.)
Screw plunger to the top of unit.
Thread the 20’ cable through the hole in plunger and create a 14 inch top loop as
shown below.
At the bottom of the cable, a second loop can be created as a handle for actuation at
the desired length.
The unit may be mounted in any of the following installation arrangements:
1-1/2” NPT half coupling (No full coupling).
2” NPT full coupling. (Use in conjunction with 2 x 1-1/2” NPT bushing as required.)
2” NPT pipe tee. (Use in conjunction with 2 x 1-1/2” NPT bushing as required.)
Optional flanged mounting.
Optional chamber mounting.
Linear = mm/inches

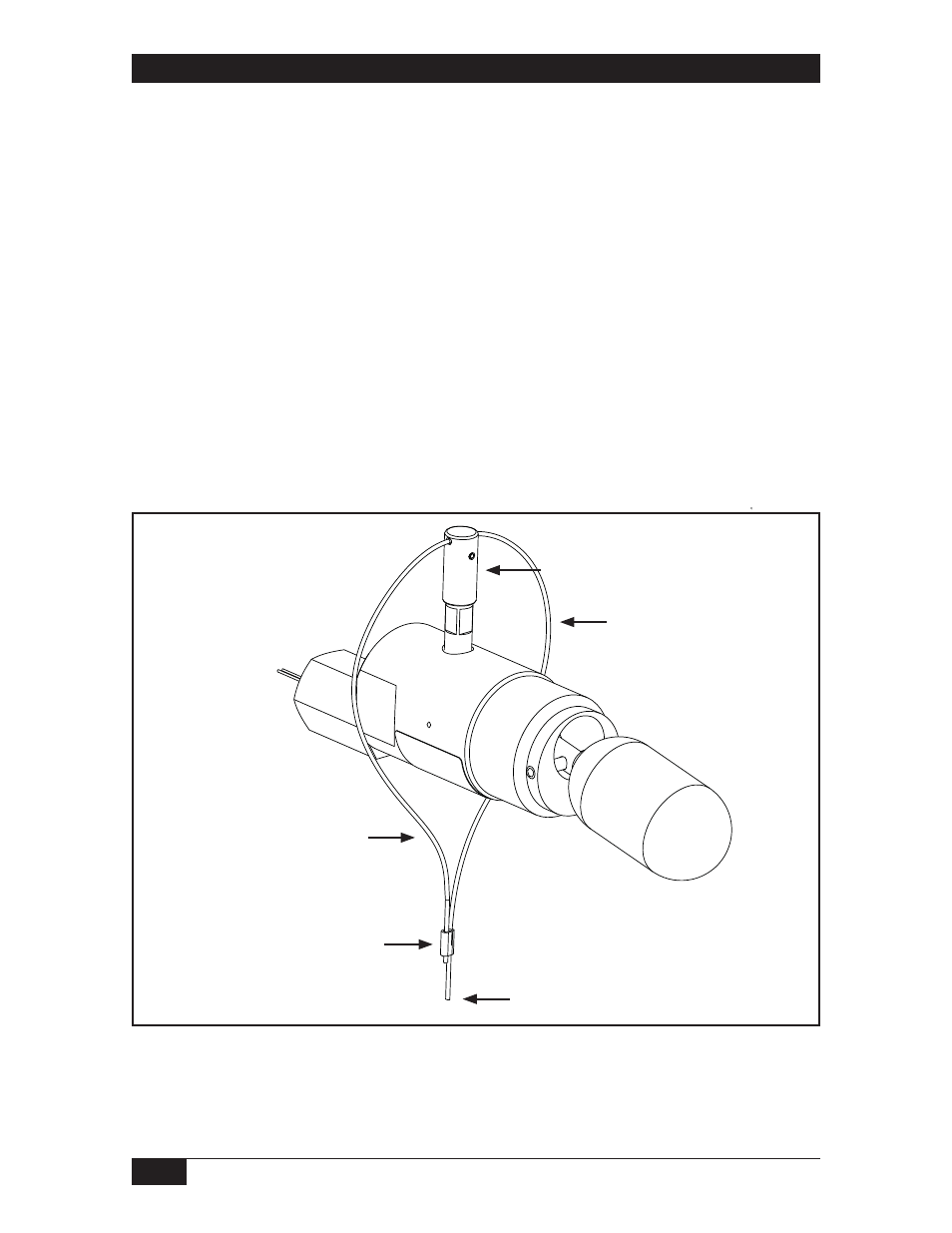

Drawing 0098636
REMOTE MANUAL CHECK
MD OPTION
CRIMP
REMOTE CABLE
CREATE HANDLE AT DESIRED LENGTH
TOP 14” LOOP
PLUNGER
