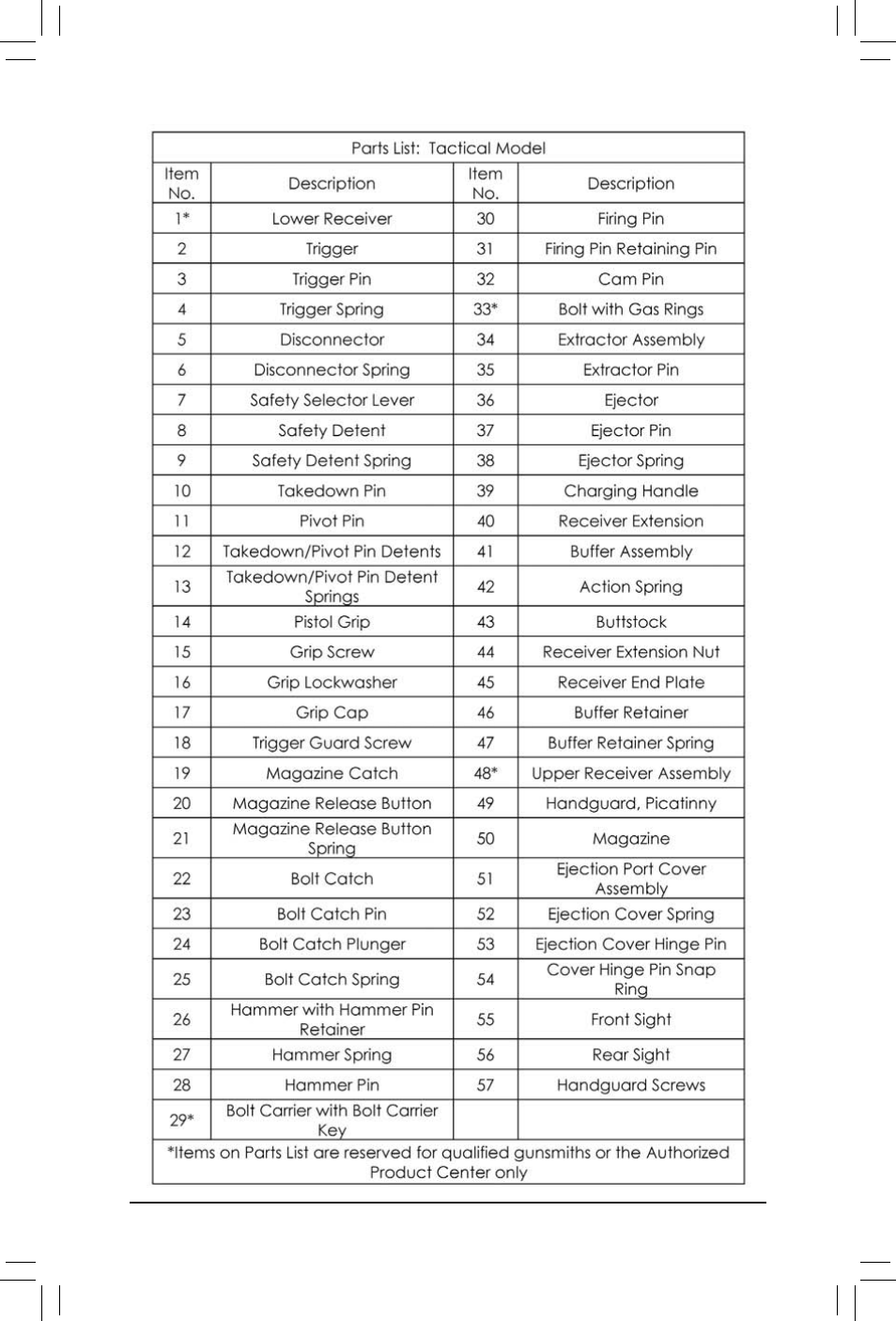

Parts List: Tactical Model
Item
No.
Description
Item
No.
Description
1*
Lower Receiver
30
Firing Pin
2
Trigger
31
Firing Pin Retaining Pin
3
Trigger Pin
32
Cam Pin
4
Trigger Spring
33*
Bolt with Gas Rings
5
Disconnector
34
Extractor Assembly
6
Disconnector Spring
35
Extractor Pin
7
Safety Selector Lever
36
Ejector
8
Safety Detent
37
Ejector Pin
9
Safety Detent Spring
38
Ejector Spring
10
Takedown Pin
39
Charging Handle
11
Pivot Pin
40
Receiver Extension
12
Takedown/Pivot Pin Detents
41
Buffer Assembly
13
Takedown/Pivot Pin Detent
Springs
42
Action Spring
14
Pistol Grip
43
Buttstock
15
Grip Screw
44
Receiver Extension Nut
16
Grip Lockwasher
45
Receiver End Plate
17
Grip Cap
46
Buffer Retainer
18
Trigger Guard Screw
47
Buffer Retainer Spring
19
Magazine Catch
48*
Upper Receiver Assembly
20
Magazine Release Button
49
Handguard, Picatinny
21
Magazine Release Button
Spring
50
Magazine
22
Bolt Catch
51
Ejection Port Cover
Assembly
23
Bolt Catch Pin
52
Ejection Cover Spring
24
Bolt Catch Plunger
53
Ejection Cover Hinge Pin
25
Bolt Catch Spring
54
Cover Hinge Pin Snap Ring
26
Hammer with Hammer Pin
Retainer
55
Front Sight
27
Hammer Spring
56
Rear Sight
