12

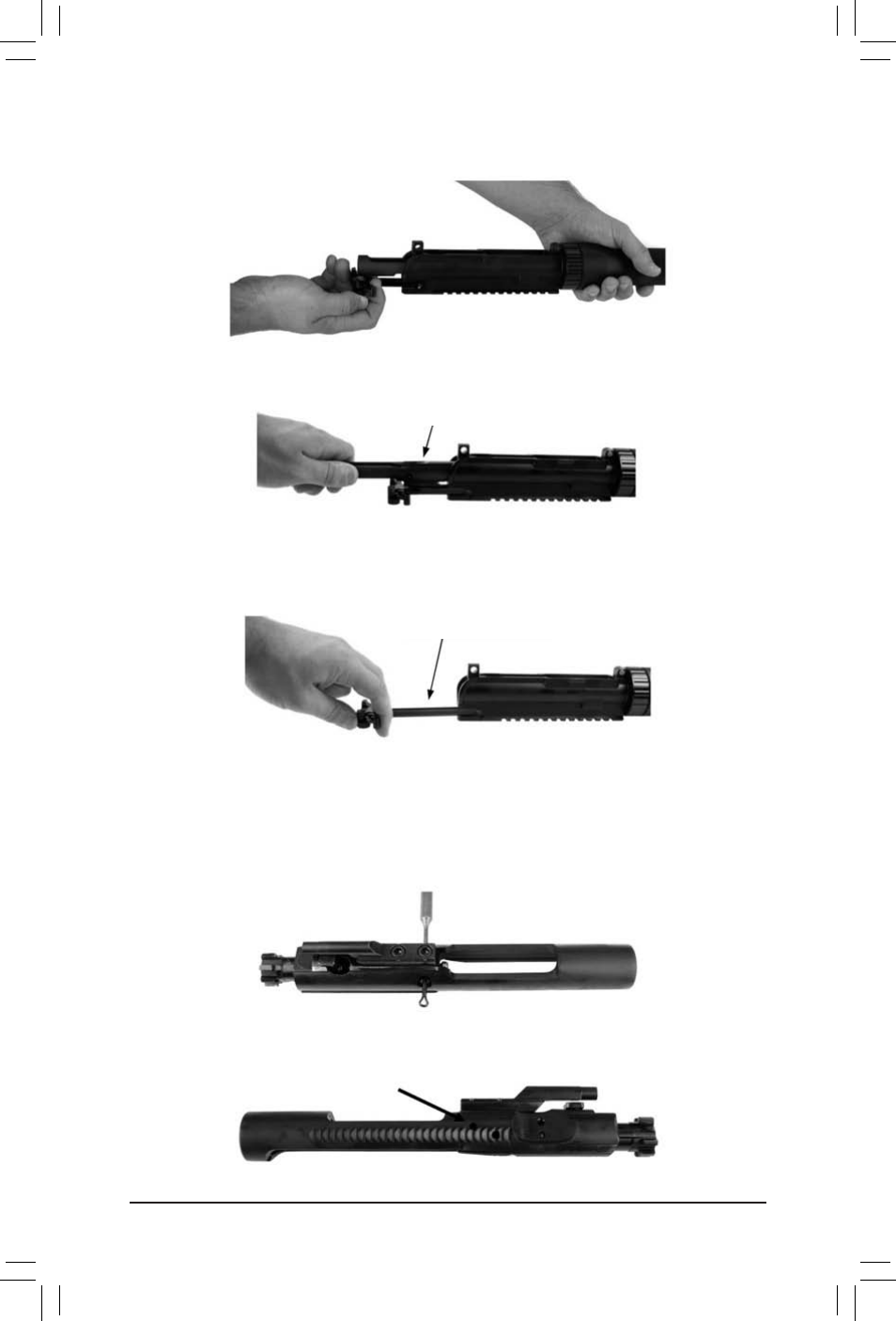

Fig. 20

Fig. 21

Fig. 22

Use a punch to remove the firing pin retaining pin (Fig. 23) by pushing through the

firing pin retaining pin hole on the right side of the bolt carrier assembly (Fig. 24).

Remove the firing pin (Fig. 25).

Fig. 23

Fig. 24

BOLT CARRIER ASSEMBLY

CHARGING HANDLE

Turn the upper receiver over and pull the charging handle out to remove the

bolt carrier assembly (Figs. 20 & 21) then pull the charging handle while lifting to

remove it (Fig. 22).
