13

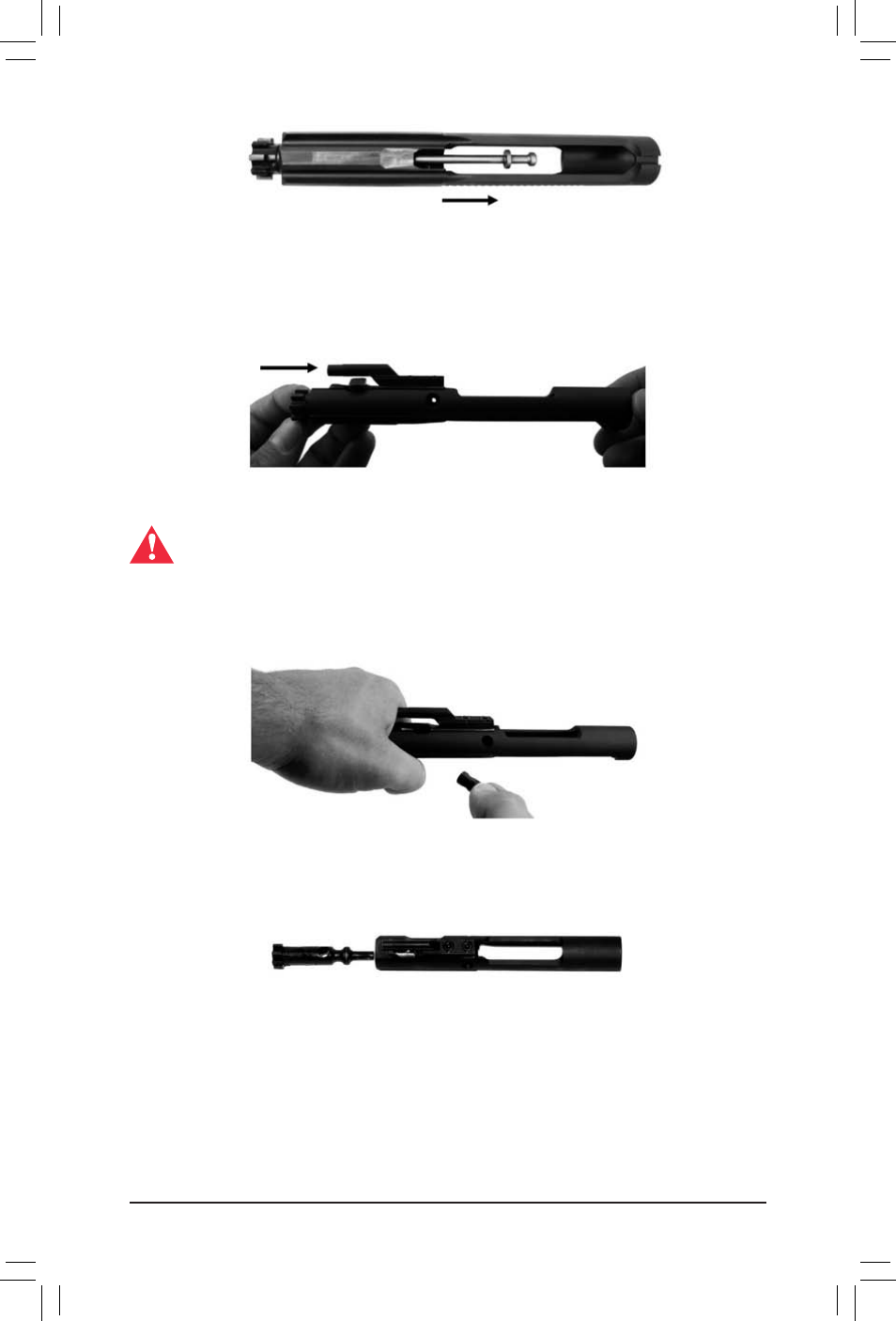

Fig. 25

Push the bolt subassembly in (Fig. 26) and twist the cam pin a quarter turn and

lift to remove the cam pin on the 5.56 model (Fig. 27). Lift the cam pin to remove

the cam pin on the 7.62 model.

Fig. 26

When reassembling the firearm, be sure the cam pin is installed in the bolt

carrier assembly. The firearm will fire without the cam pin and the firearm

will explode, causing damage to your firearm and may result in serious

personal injury to the shooter and/or others nearby.

Fig. 27

Pull the bolt subassembly out through the front of the bolt carrier (Fig. 28).

Fig. 28
