14

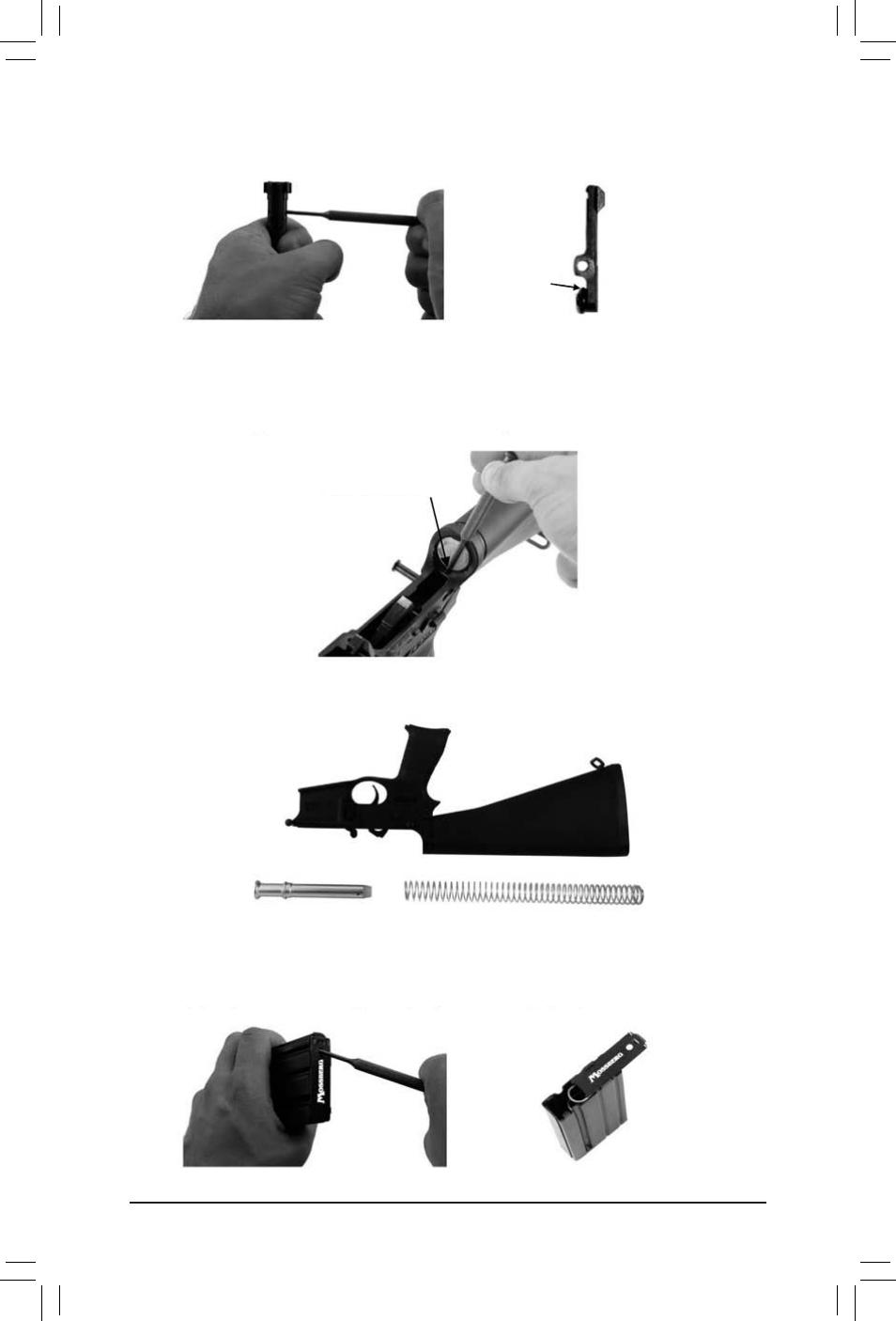

Use a punch to depress the buffer retainer (Fig. 31) and remove the buffer

assembly and action spring (Fig. 32). The hammer must be pressed down into

the cocked position to remove the buffer assembly.

Fig. 31

Fig. 32

Use a punch to lift the floorplate of the magazine (Fig. 33) and slide it rearwards

(Fig. 34) to access the magazine spring and follower (See Fig. 35 on page 15).

Fig. 29

Fig. 30

Fig. 33

Fig. 34

Fig. 31

Fig. 32

RETAINING PIN

RUBBER

SEAL

Use a punch to drive out the extractor pin and remove the extractor (Fig. 29), but

be careful not to lose the rubber seal on the extractor spring (Fig. 30).
