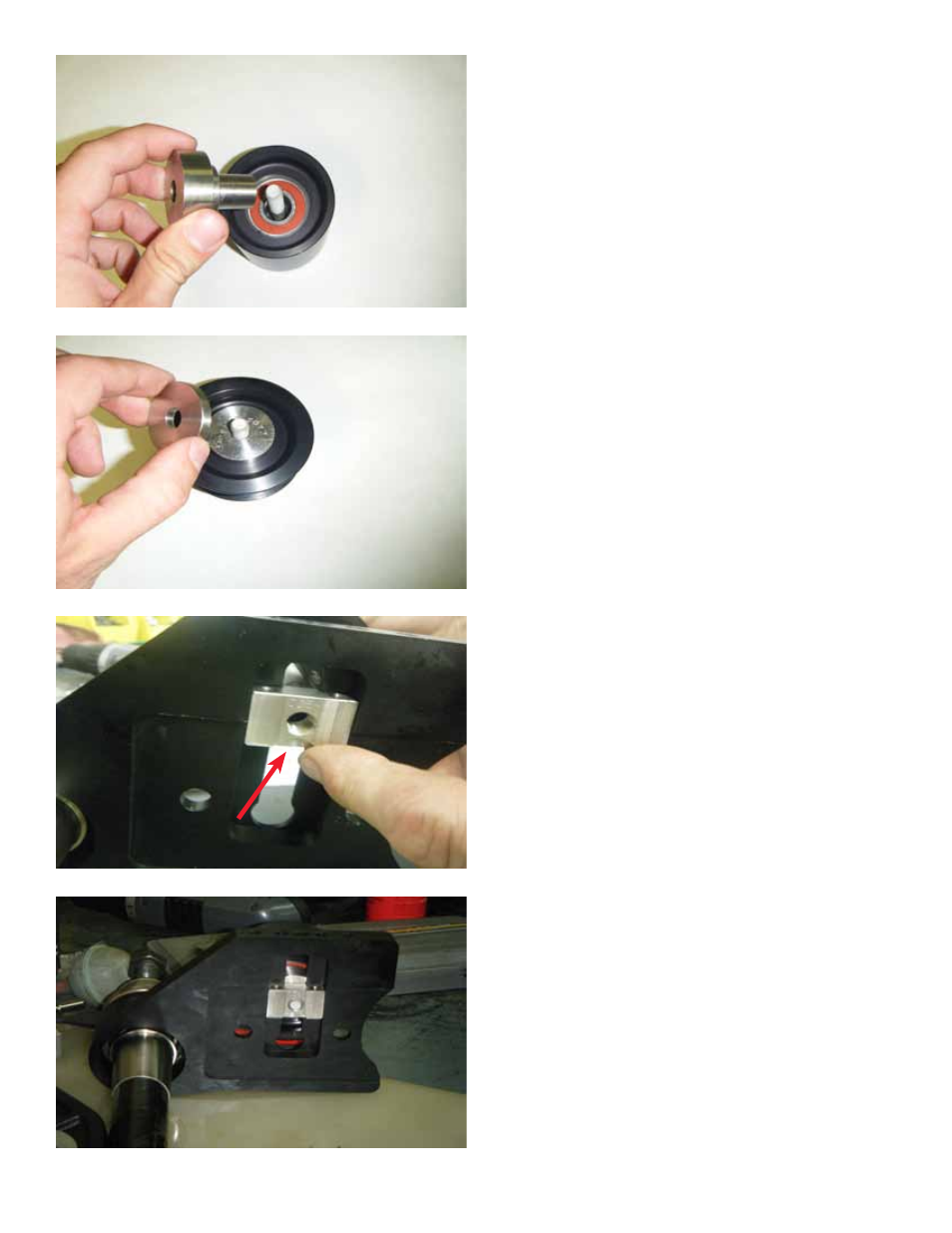

21. For ribbed belts:
Install the stainless steel pulley cap (PN:
XX09737-0078) onto the M10x1.5x65 bolt (PN:
11516109). Then, install the tensioner pulley and
tensioner pulley base (PN: XX09737-0077) onto
the same bolt.
22. For cogged belts:
Install the stainless steel pulley cap (PN:
XX09737-0078) onto the M10x1.5x70 bolt (PN:
11516356). Then, install the guided tensioner
pulley and tensioner pulley base
(PN: XX09737-0077) onto the same bolt followed
by the spacer (PN: XX09737-0076).
23. Install the rear idler pulley using the
supplied T-nut. The cut-out on the back of the
T-nut should be pointed down, as shown by the
red arrow.
24. The adjacent illustration shows the
tensioner pulley fastened to the tensioner bracket
by the T-nut from the rear.
