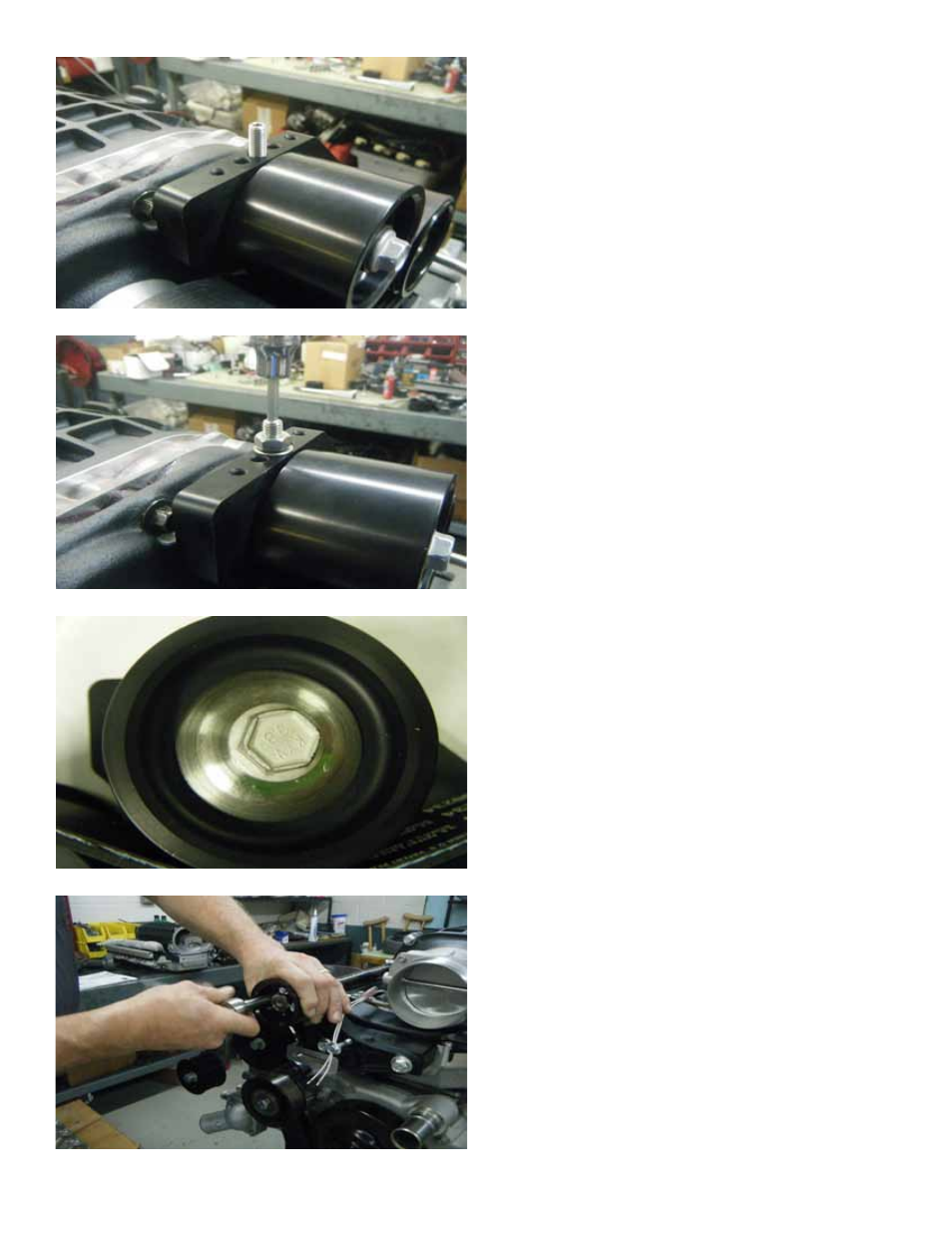

33. Lower the tensioner pulley into position.
Install the proper set screw for your pulley/belt
configuration. There are three different size set
screws supplied in this kit.
34. Using the supplied washer, nut, and a
4mm Allen socket, secure the set screw to the
bracket.
35. Tighten the idler pulley bolt until belt is
secure.
36. Using a 10mm socket, re-install the front
supercharger pulley. Torque the bolts to 106 in-
lbs.
Installation of the LPE Magnuson rear
jackshaft bracket kit is now complete.
