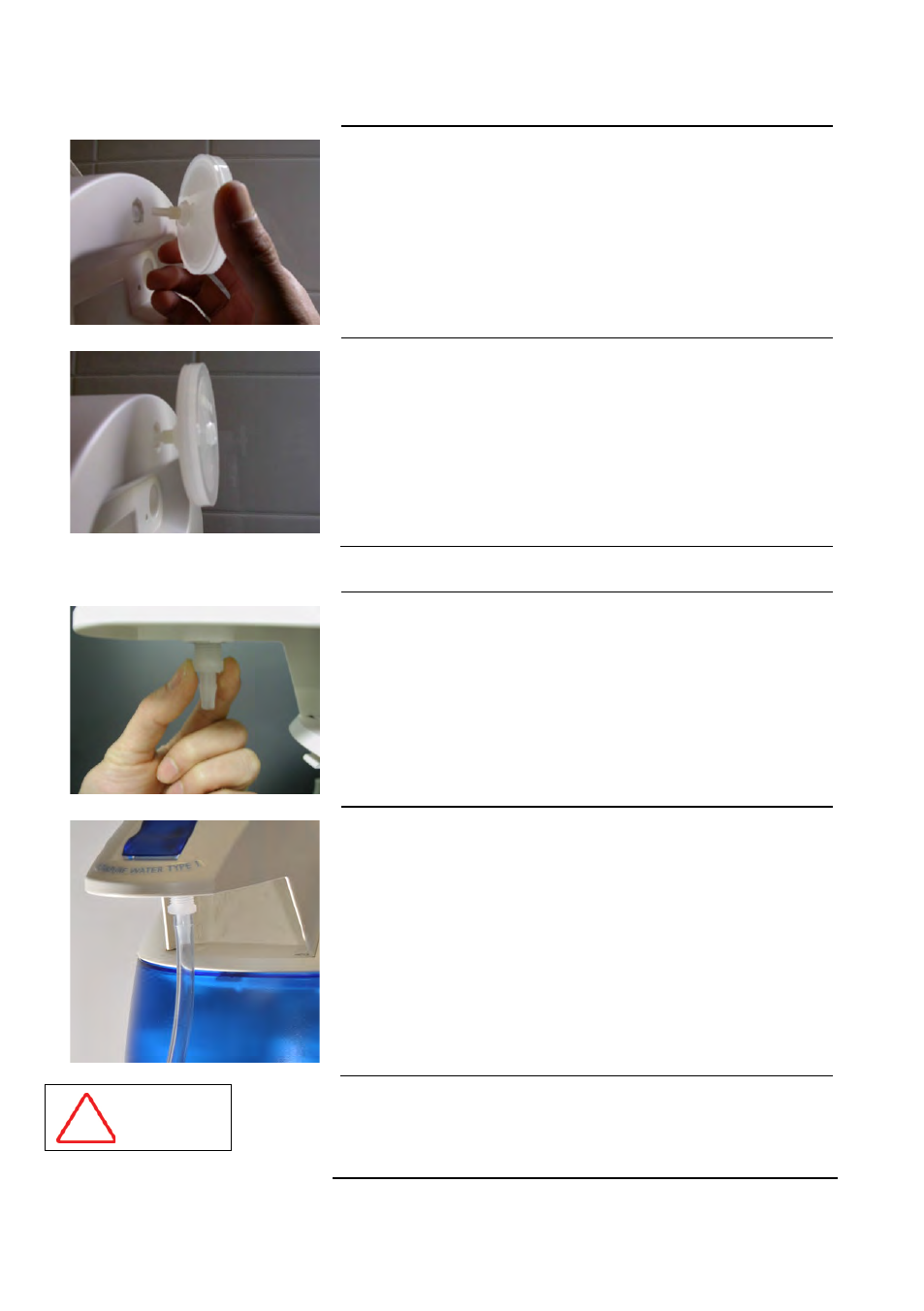

Installation of the Vent Filter
A
•
Obtain the Vent Filter from the Accessory Bag.
•
Insert the Vent Filter firmly into the port (A, B).
B
Installation of the Clear Tubing
C
•
Locate the Clear Tubing and the Barbed Fitting from the Accessories
Bag.
•
Screw the Barbed Fitting onto the bottom end of the POU
Dispenser (C).
D
•
Push one end of the Clear Tubing onto the end of the Barbed
Fitting (D).
•
Place the other end of the Clear Tubing in a sink.
ATTENTION
Do not use any white tape on the threads of the Barbed Fitting. An O-ring is
located inside the POU Dispenser to ensure water tightness between the
threads of the POU Dispenser and the Barbed Fitting.
