Installation
Preparation of the System

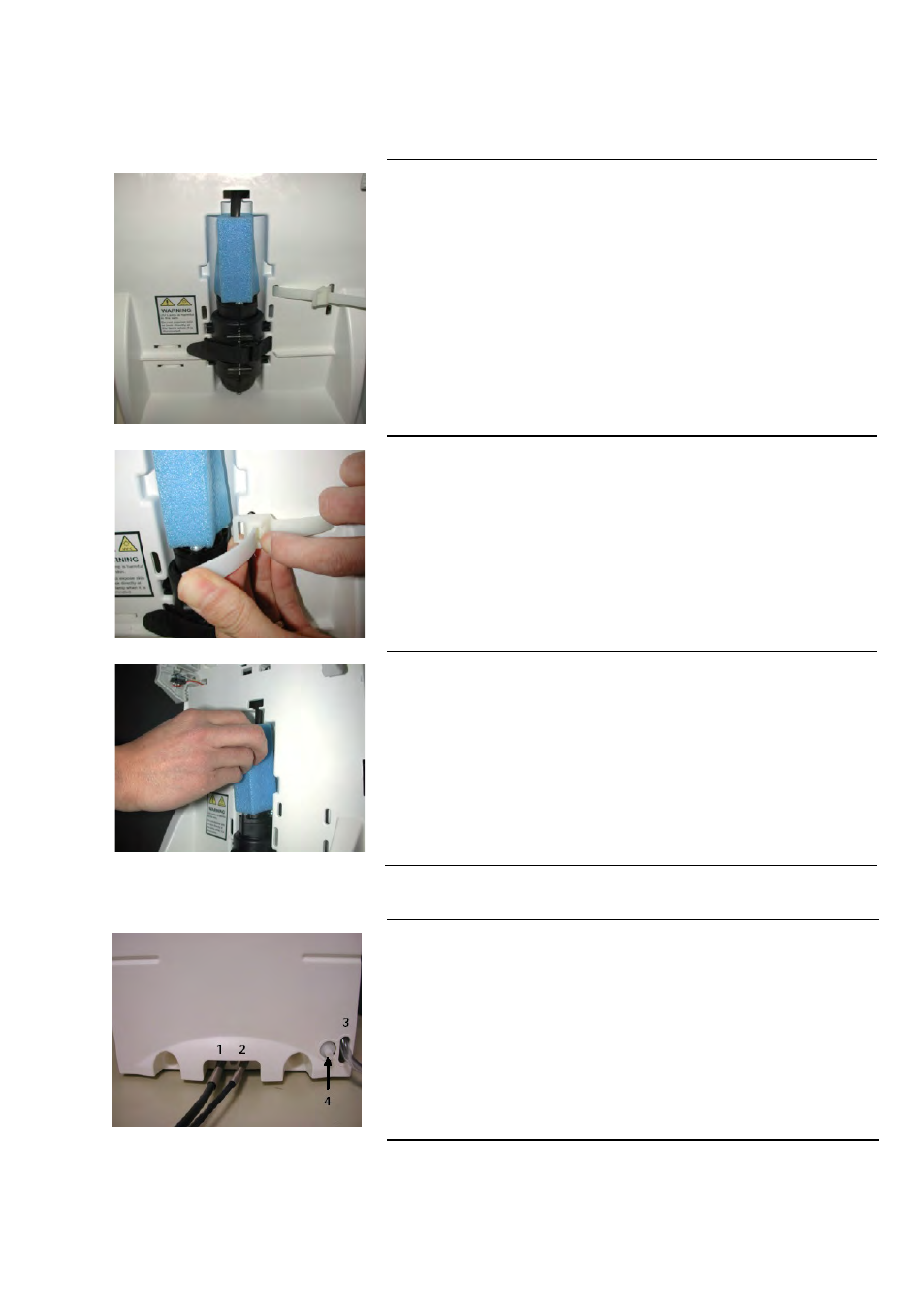

A
•
Open the front cover.
(this may require to remove the final filter)
Locate the tie wrap used to hold the Booster Pump in place during
shipping.
B
•
Press on the tab of the tie wrap.
Remove the tie wrap and discard.
C
•
Locate the protective foam found at the UV lamp cable and discard.
Connection of Tubing for a WaterPro® BT (UV) System
A
•
Rotate the WaterPro® BT (UV) System so you can see the back of the
system (see photo A).
1. Feedwater tubing
2. Reject tubing
3. Overflow tubing
4. Tank outlet
