Labconco WaterPr BT Systems 90151 Series User Manual
Page 16

8

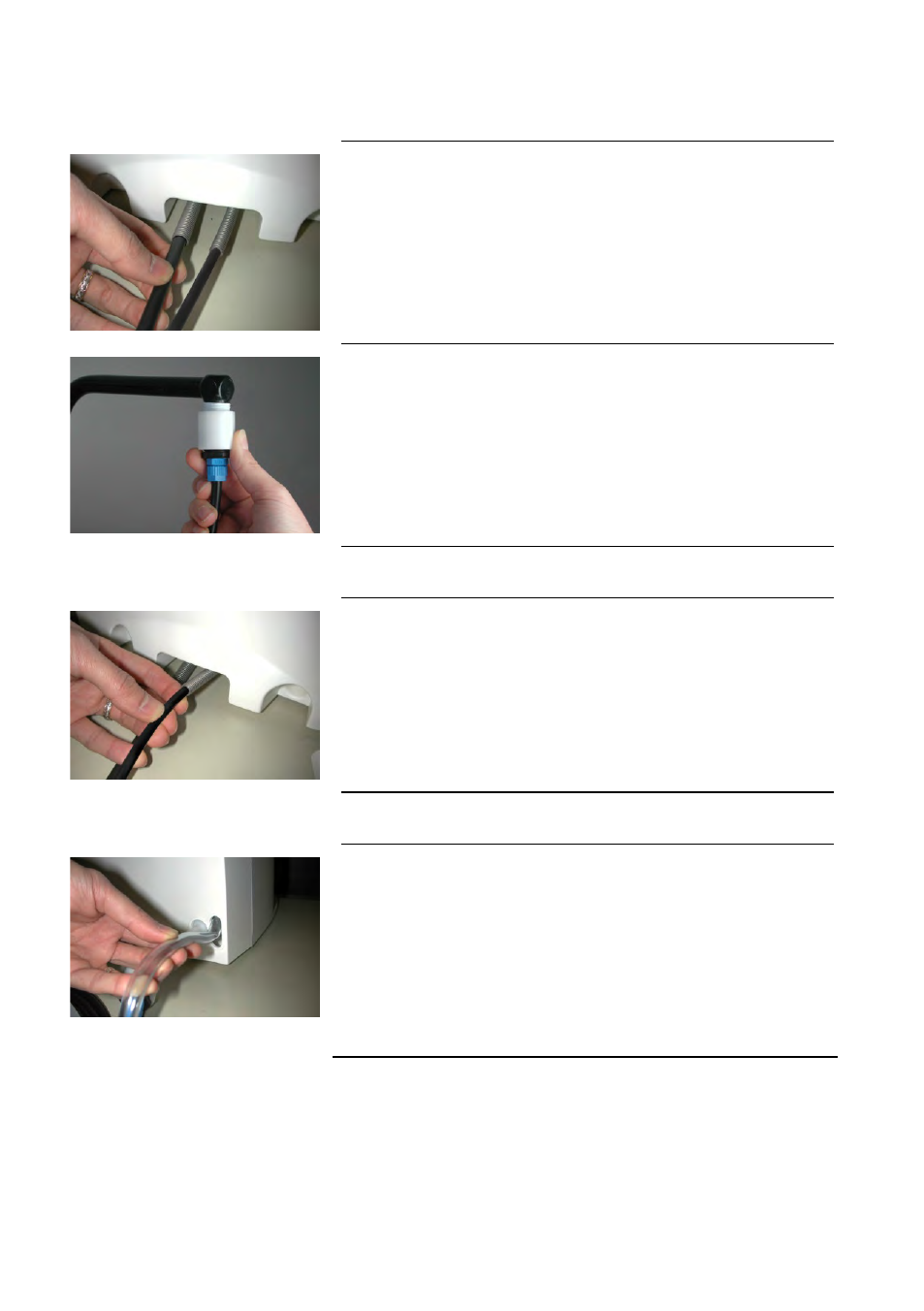

Feedwater Tubing
B
•
Locate the Feedwater Tubing exiting from the bottom middle of the
system.
A 1/2 inch Female GAZ fitting with a screen filter is attached at the
end of this tubing.
Unroll it until the fitting reaches the Feedwater source.
•
Apply white tape on the thread of the 1/2 inch Male GAZ valve or
fitting of the Feedwater source.
C
•
Connect the GAZ fitting on the end of the Feedwater tubing to the
Feedwater source.
Reject Tubing
D
•
Locate the Reject Tubing exiting from the bottom middle of the
system.
•
Unroll, route and secure the tubing to drain.
Overflow Tubing
E
•
Locate the Overflow Tubing exiting from the bottom right of the
system.
•
Unroll, route and secure the tubing into a sink or drain.
