9
Fly high with Hitec

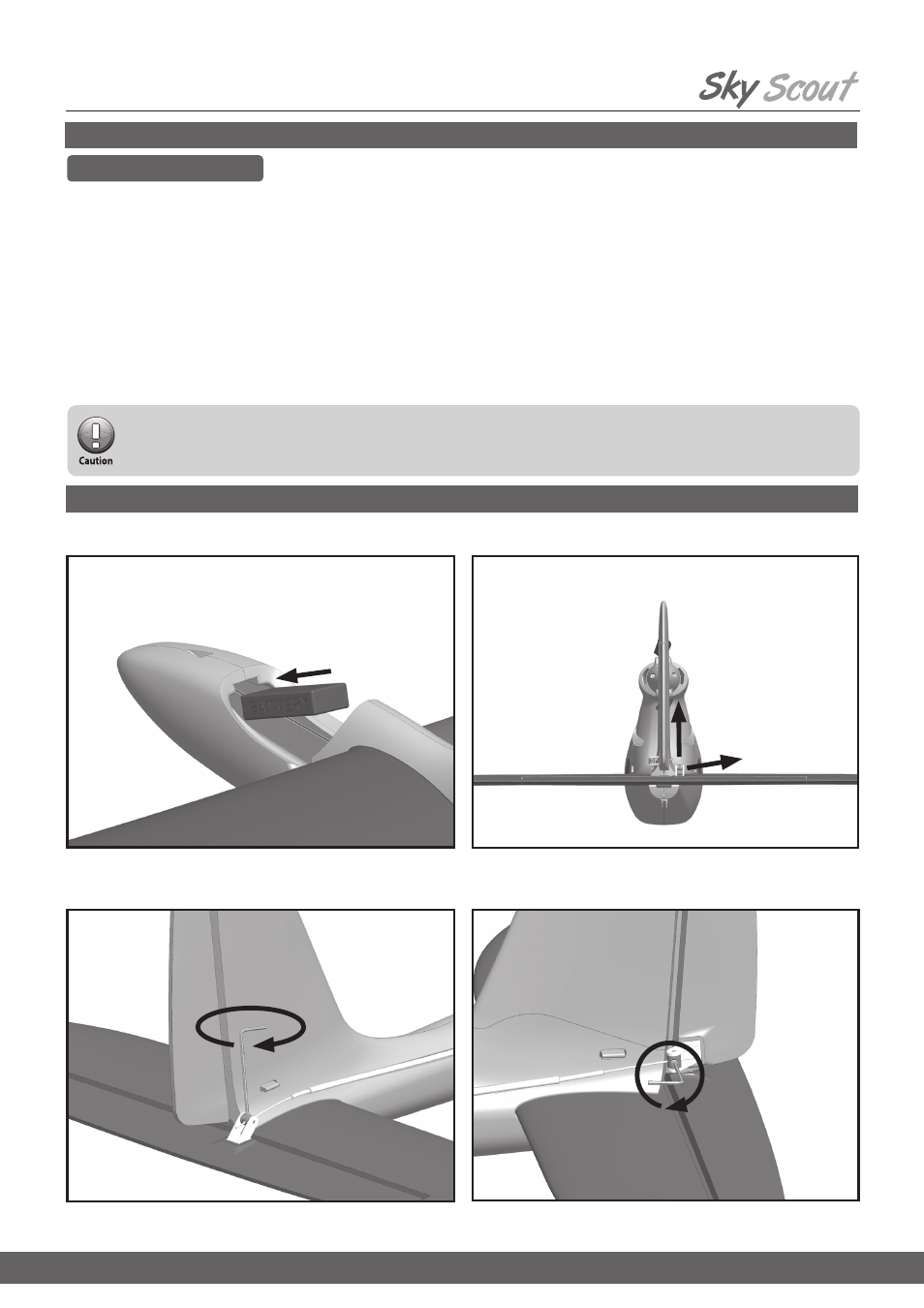

Section Four: Final Assembly and Adjustments
This version requires that you have a transmitter with matching receiver, as well as a power battery and appropriate charger. Follow the manufacturer’s
instructions for the installation of your radio equipment.
1.
Installing the Receiver: Using Velcro or double sided servo tape mount your receiver in the fuselage just slight aft of center in the canopy
opening of the fuselage route the antennas as specified by the manufacturer.
2. Plug in the Elevator, to the appropriate channels of the receiver.
3. Plug the signal wire of the ESC into the throttle channel of the receiver.
4. Install the fully charged power battery into the nose of the Sky Scout pushing it in as far forward as possible. (Page 9, Fig. 1)
5. Turn on the transmitter and set the throttle stick to the lowest limit. Connect the flight battery to HM18A ESC installed in the plane. If it is
connected correctly, the ESC will beep once or twice and automatically recognize the throttle.
Note: If the ESC does not beep, check to make sure the throttle is in the down (off) position. To reset the ESC unplug the battery for
5 seconds before trying it again.
6. Wiggle the Rudder and Elevator sticks to make sure everything is operating properly. Once you have verified they are working set the trims
to their neutral positions.
7. Proceed to Step 2 Final adjustments
Once you have powered up your model and centered the control sticks you can center the control surfaces and finalize the assembly of your model.
Follow the instructions below to adjust your model’s control surfaces and finalize the assembly.
Place the charged LiPo battery in the nose of the Sky Scout as shown.
1
Make sure that when the servos are in their neutral positions the elevator
and rudder control surfaces are parallel with the fin and tailplane.
2
Tighten the Allen-Head Grub screw against the Elevator push rod using
the Allen Key.
3
Tighten the Allen-Head Grub screw against the Rudder push rod using
the Allen Key.
4
Plug N 2Go Version
CAUTION: We recommend the Hitec HLP-3/1300S - 1300mAh 11.1V Li-Po battery. If using another battery, the battery must be a 11.1 Volt
battery with a minimum capacity of 1300mAh. The battery should be approximately the dimensions and weight as the recommended Hitec
battery in order to fit in the fuselage without significantly changing the center of gravity.
Centering Your Control Surfaces
