• When the whole password has been in-
serted, press CFM to confirm it.
Note The default password is set at “0000”.
ENTERING SETUP ITEMS
After confirmation of the password the
primary LCD will show the name of the
first setup group (see table) while the
secondary LCD will display the setup
code of the first item of the group.
• By pressing the æ or key it is possible to cycle through
the setup groups; the secondary LCD will always show the
code of the first item of the group.
• Once a group is selected, it is pos-
sible to choose an item manually.
Pressing the key, the first digit of
the setup code will start blinking.
Now it is possible to change its value
by pressing the
æ or key.
• Pressing the key again, the first
digit will be fixed while the second
digit starts blinking and its value can
be changed as described above.
• By pressing the key again all the
digits will be fixed.
• If CFM key is pressed, the selected item is confirmed; the
secondary LCD will show the setup item code while the
primary LCD will display the current item value.
If a fixed set of values is available for the selected item, use
the
æ or key to switch between them.
SETUP MODE
The Setup Mode allows the user to set all needed character-
istics of the meter.
To enter the mode, press the SETUP key and
enter the password when the device is in idle or
control mode.
If the correct password is not entered, the user can only view
the setup parameters (except for passwords) without modify-
ing them (and the device remains in control mode). An
exception is certain setup items, or flags, which can activate
special tasks, when set and confirmed.
To each setup parameter (or setup item) is assigned a three
characters (one letter followed by two digits) setup code which
is entered and displayed on the secondary LCD. The first
character identifies the group of setup items, while the two
digits identify the particular item within that group.
The setup codes can be selected after password is entered
and CFM key is pressed. When CFM is pressed, the current
setup item is saved on EEPROM and the following item is
displayed.
The possible transitions in setup mode are the following:

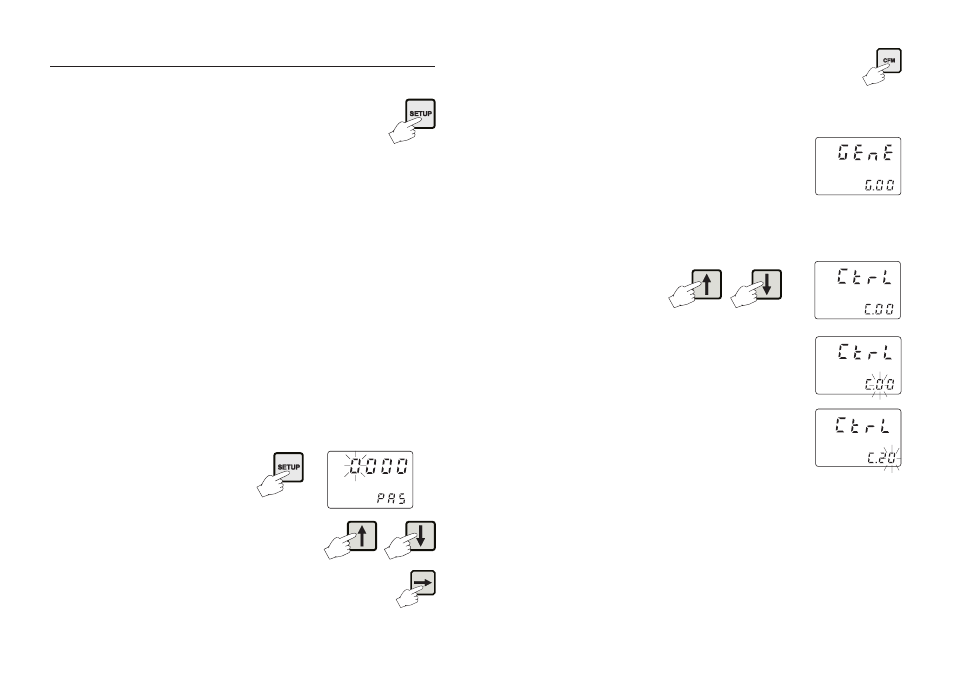

ENTERING THE PASSWORD
• Press SETUP to enter the setup mode. The primary LCD will
display “0000”, while the secondary LCD shows “PAS”.
The first digit of the primary LCD will blink.
• Enter the first digit of the pass-
word by using the æ or key.
• Then move to the next digit with and
enter a digit as described above. Continue
for the last two digits.
