Hanna Instruments HI 8510 - Manual (Page 8)

15
14£
14

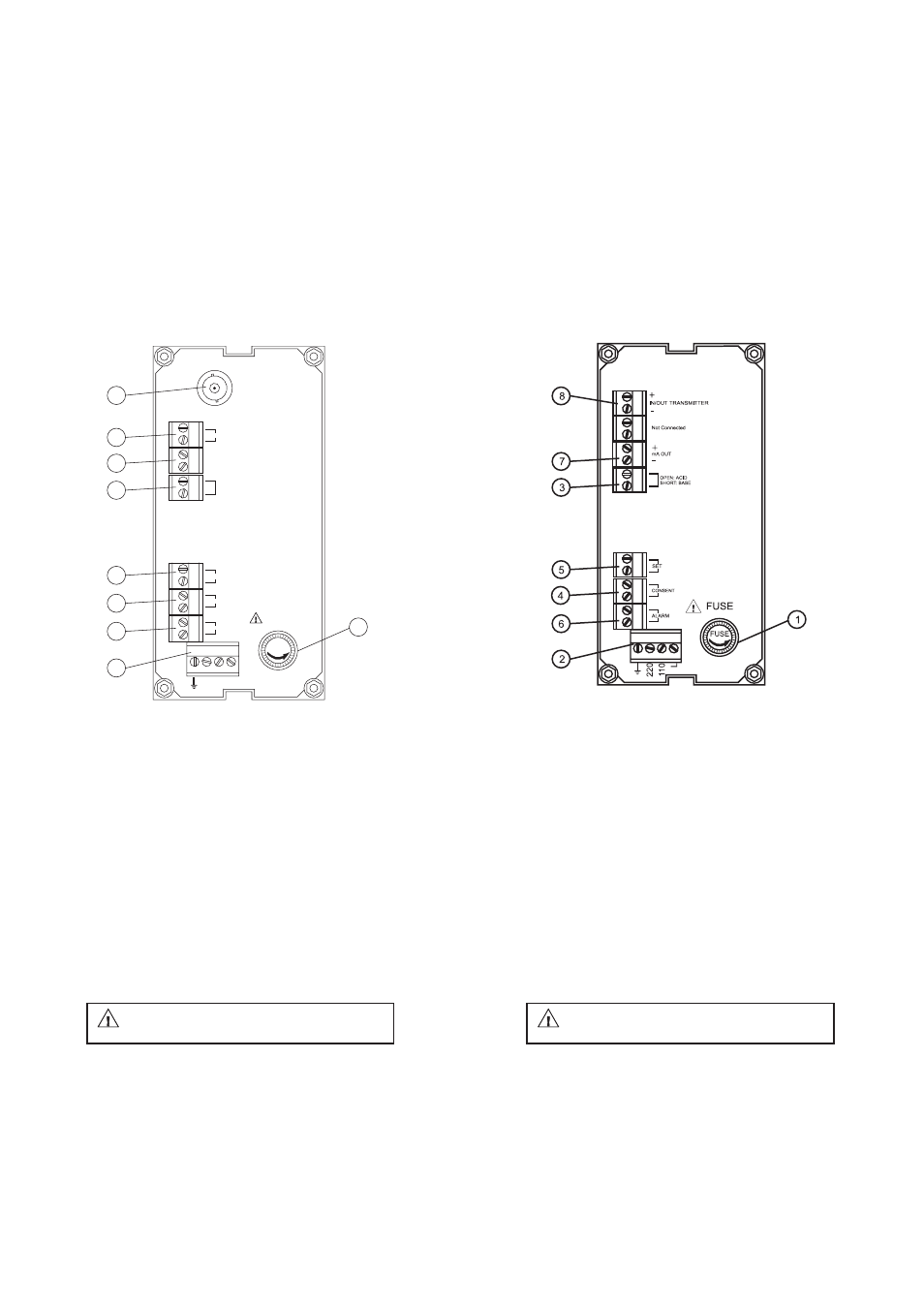

1. Fuse holder
2. Power supply terminals
3. Acid/Basic dosage selection terminals
4. Red/ox dosage consent terminals
5. Connections for dosing pump
6. Alarm contacts
7. Recorder output contacts
8. Connections to the transmitter
REAR PANEL HI 8710T
1. Fuse holder
2. Power supply terminals
3. Acid/Basic dosage selection terminals
4. Red/ox dosage consent terminals
5. Connections for dosing pump
6. Alarm contacts
7. Recorder output contacts
8. Connections for Pt100 temperature sensor
9. BNC socket for pH electrode
REAR PANEL HI 8710E
FUSE
FUSE
ELECTRODE
INPUT
PT100
mA OUT
OPEN: ACID
SHORT: BASE
+
-
SET
CONSENT
ALARM
220 11
0 L
1
2
3
7
8
9
4
6
5
Unplug the instrument from the power
supply before replacing the fuse. Unplug the instrument from the power
supply before replacing the fuse.
