Trimmers
SLOPE For Slope calibration
ΔΔΔΔΔ
AL To display and set the alarm
tolerance
SET/COARSE To coarsely adjust the
setpoint
SET/FINE To finely adjust the setpoint
LEDs
OXID Show that the oxidant dosage is
active
REDUC Show that the reductant dosage
is active
ΔΔΔΔΔ
AL (blinking) Indicate an active alarm
FUNCTIONAL DESCRIPTION HI 8720
Keypad
SET To set the working point of ORP
dosage
MEASURE To enter measurement mode and
to enable diagnostic tests
ΔΔΔΔΔ
Al To display and set the alarm
tolerance
0 mV TEST To verify the instrument
calibration at 0 mV
500 mV TEST To verify the slope at
500 mV

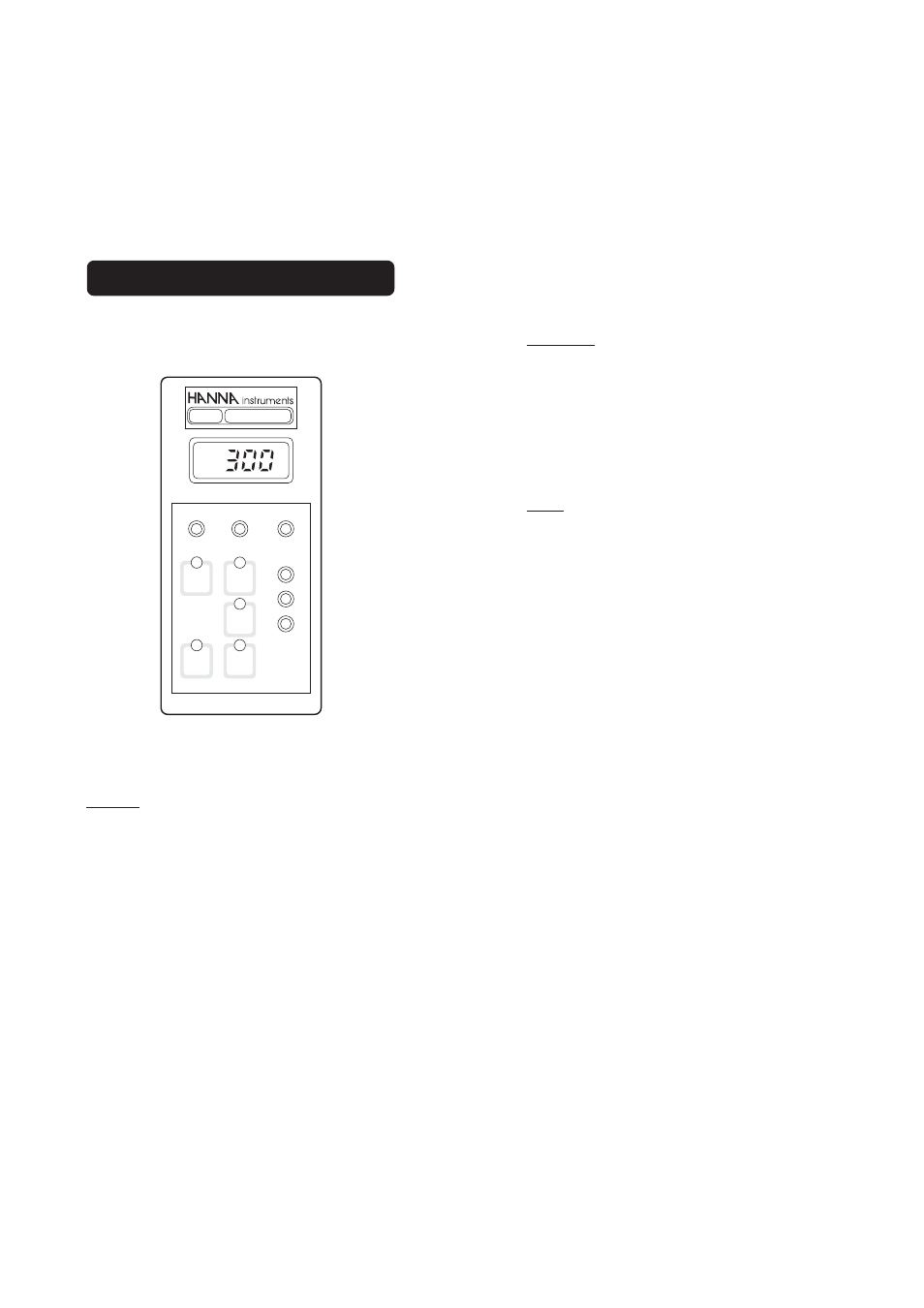

FRONT PANEL
SLOPE DOSAGE
OXID. REDUC.
Δ AL
COARSE
SET
FINE
Δ AL
MEA
SURE
SET
0 mV
TEST
500 mV
TEST
mV
HI 8720E ORP
