Hanna Instruments HI 8510 - Manual (Page 10)

19
18£
18

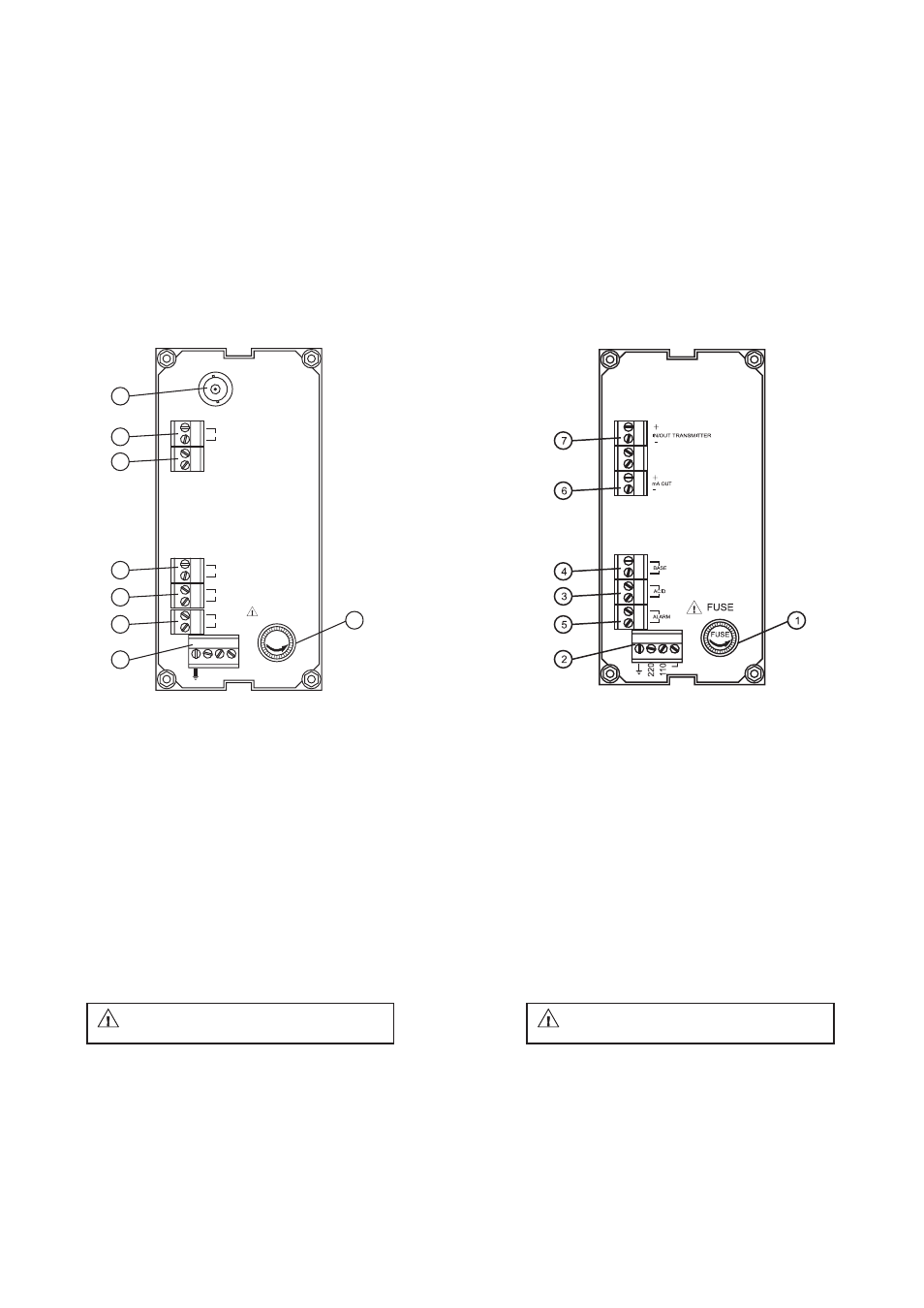

1. Fuse holder
2. Power supply terminals
3. Connections for dosing pump for acid
4. Connections for dosing pump for base
5. Alarm contacts
6. Recorder output contacts
7. Connections to the transmitter
REAR PANEL HI 8711T
1. Fuse holder
2. Power supply terminals
3. Connections for dosing pump for acid
4. Connections for dosing pump for base
5. Alarm contacts
6. Recorder output contacts
7. Connections for Pt100 temperature sensor
8. BNC socket for pH electrode
REAR PANEL HI 8711E
FUSE
FUSE
ELECTRODE
INPUT
PT100
mA OUT
+
-
BASE
ACID
ALARM
220 11
0 L
1
2
6
7
8
3
5
4
Unplug the instrument from the power
supply before replacing the fuse. Unplug the instrument from the power
supply before replacing the fuse.
