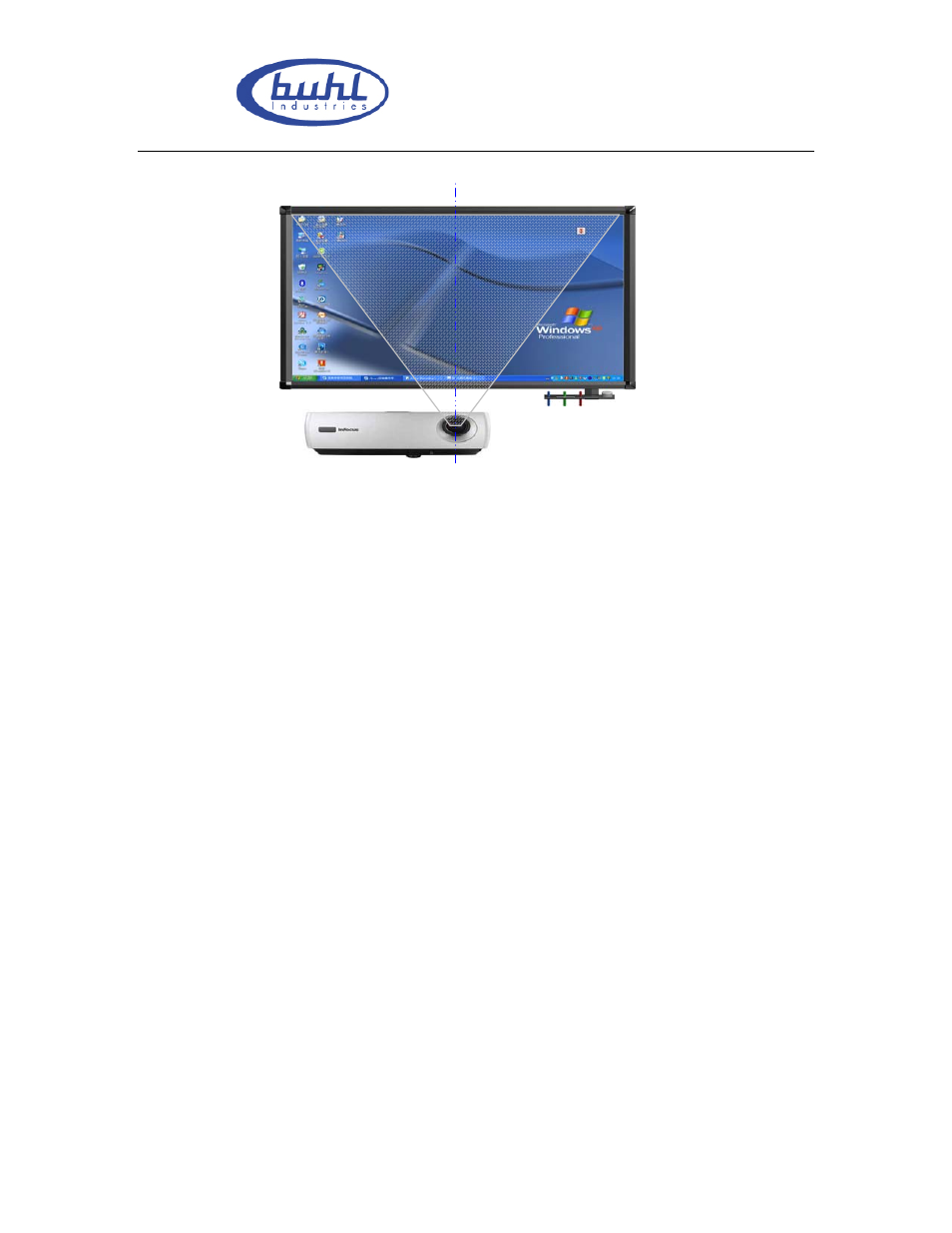

3.3.4 Projector adjusting
Turn on and adjust the projector to make sure that the images from projector are projected
onto the effective area of the Whiteboard (the effective area is the center area which is 1
CM from the border of the Whiteboard), and then rectify the projective images to keep it
square.
Notice:
1.It is possible to get inaccurate orientation on condition that the images are not square or
projector does not aim at the Whiteboard.
2.The images must be projected on the effective area of the Whiteboard, otherwise the
Whiteboard will not work normally.
