Model URA-232 & URA-232-XT
12
3.6 Signal Adjustment for the Daisy Chain
There are no specific procedures for adjusting the URA-232-XT’s other than the
order of adjustment.
The URA-232-XT’s RJ45 (CATx) output is the video signal AFTER IT HAS BEEN
ADJUSTED.
The receiver unit closest to the sender must be adjusted first.
Set the high frequency compensation first and then adjust the skew. Since the
effects in the daisy chain are cumulative, we recommend that you set the gauge of
CATx cable used as well (see section 3.3 above).
Remember, if the calibration is off on a URA-232-XT in the middle of a daisy chain
and you adjust the device settings you must then check the rest of the downstream
devices and if necessary; make additional adjustments on those devices as well.

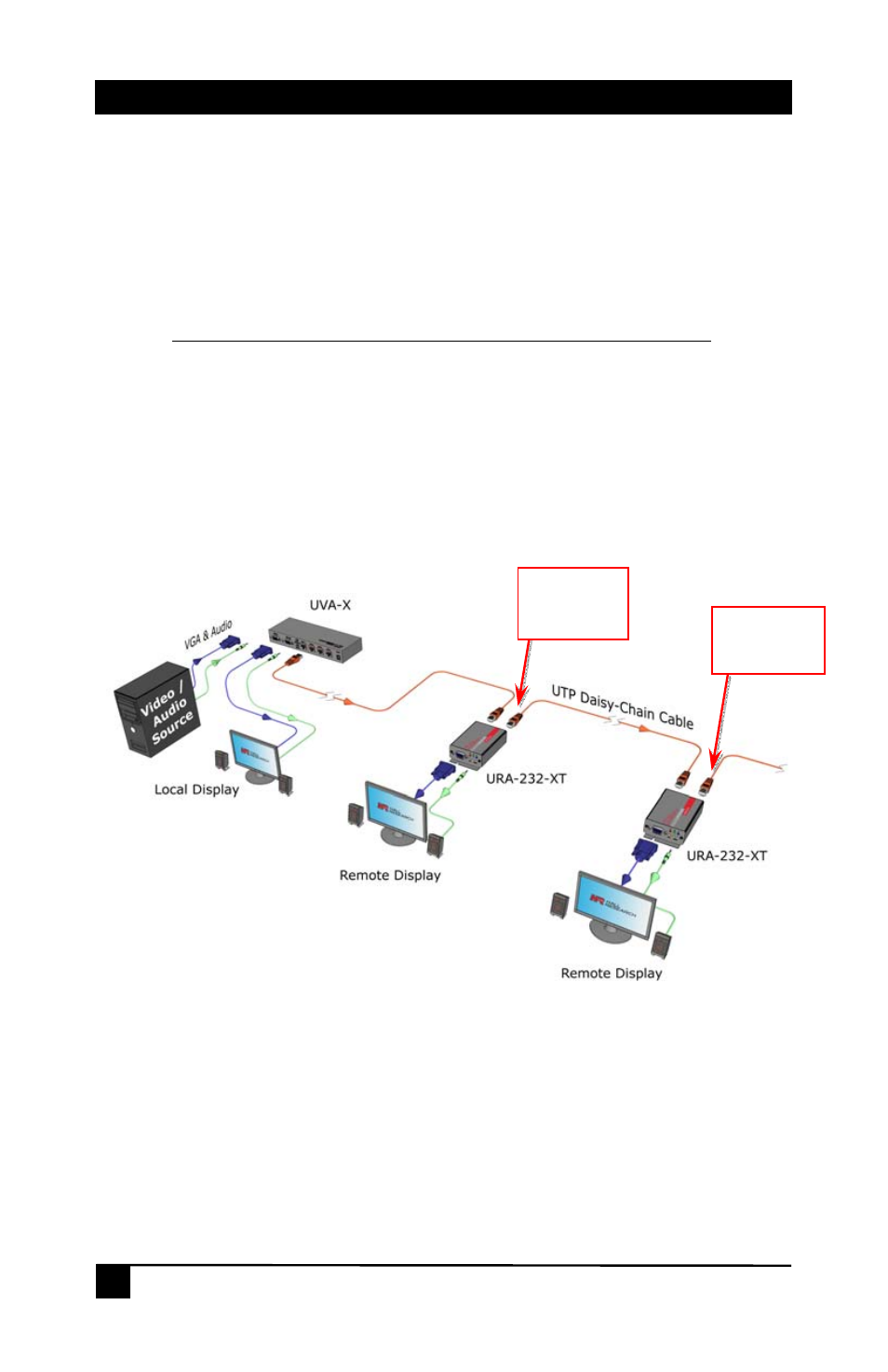

Figure 8 – Daisy-Chain adjustment sequence
Adjust
First
Adjust
Second
