MAINTENANCE

- 44 -

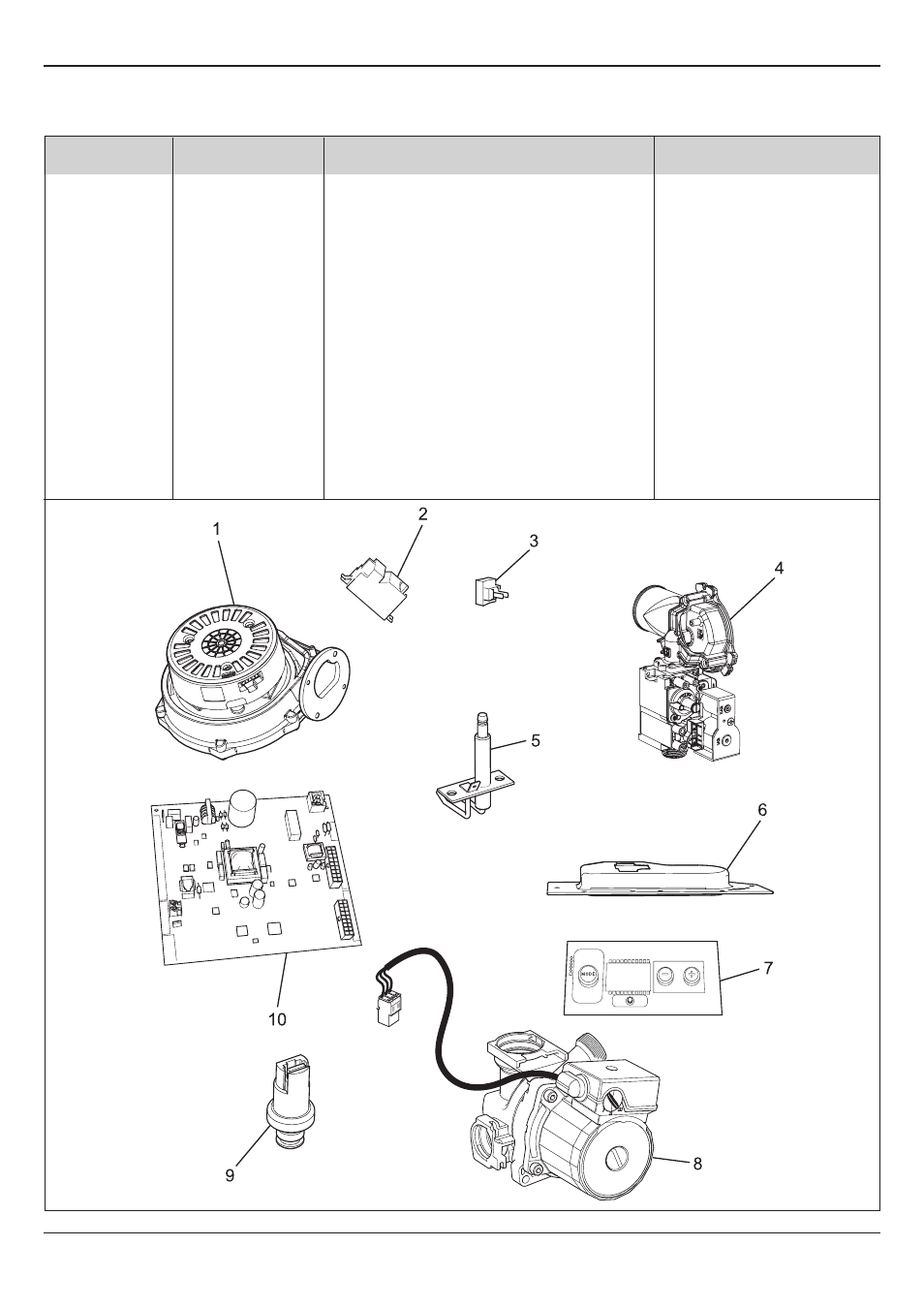

Diagram 15.1

14519

Key

No.

Part

No.

Description

GC

No

1

0020020734

Fan

H42723

2

0020020763

Igniter unit

H42773

3

0020020781

Heating flow & return thermistor (2)

H42792

4

0020020735

Gas valve

H42724

5

0020020731

Spark electrode

H42720

6

0020020728

Burner

H42718

7

0020023826

User interface

H42784

8

0020014171

Pump

H42760

9

0020079644

Water pressure sensor

H80-150

10

0020023825

Main PCB

H42783

15 Spare Parts
