MAINTENANCE
- 32 -
12.6. Heat Exchanger
NOTE: If the functional checks did not indicate poor
combustion then it is not necessary to service this
component.
Remove loose debris from inside the heat exchanger using a
soft brush and vacuum cleaner.
Carefully fl ush by spraying water into the heat exchanger, any
remaining debris should pass through the condensate trap
(Ensure the water is kept away from electrical components).

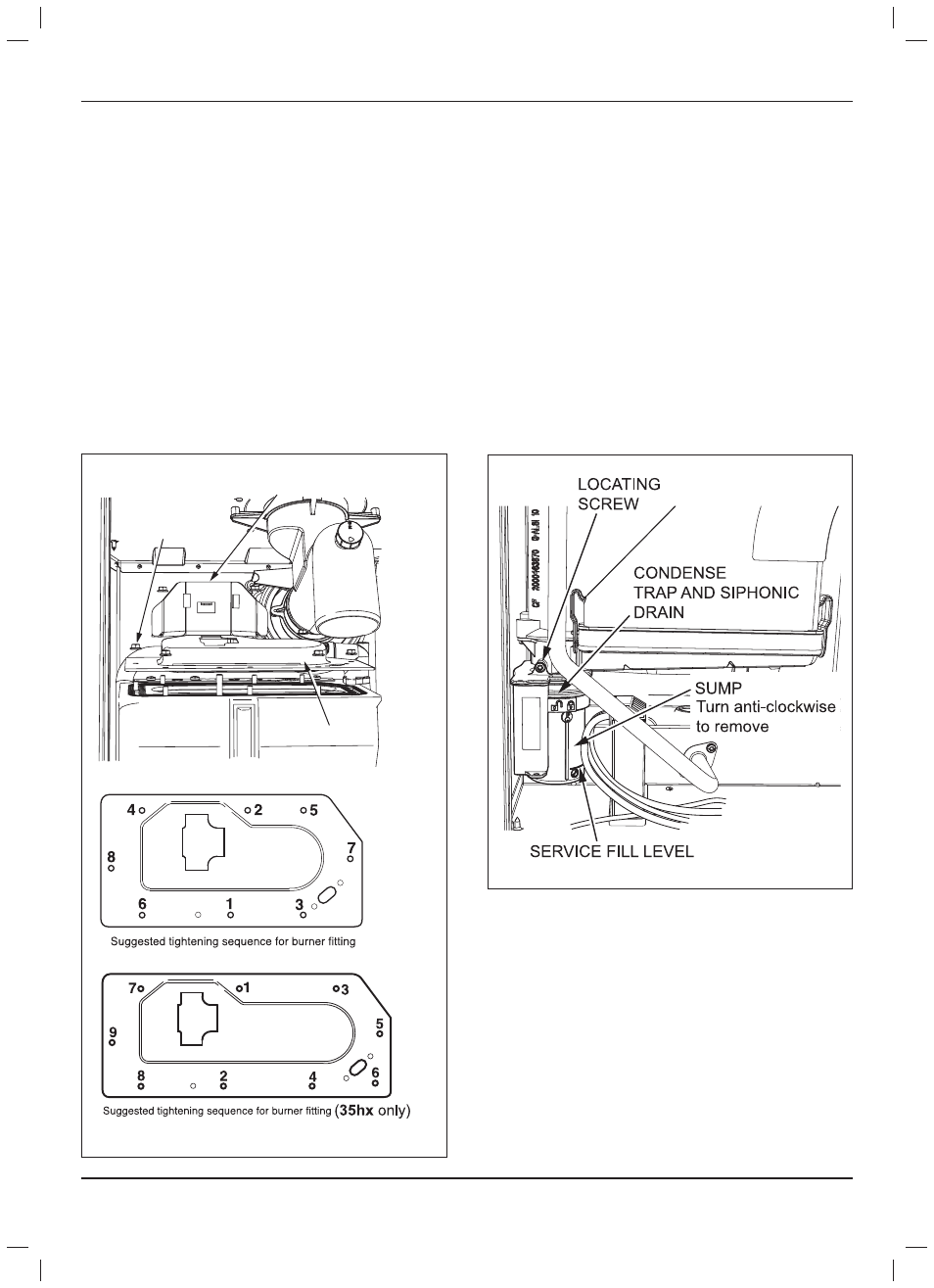

12.7 Condense Trap and Siphonic Drain
The condensate trap and siphonic drain does not normally need
servicing unless material deposits exceed beyond the service fi ll
level, see diagram 12.13.
To clean the condense trap remove the sump and rinse with
water.
Diagram 12.13
14089
SECURING
NUTS (6)
BURNER
FAN CLAMPING
BRACKET
Diagram 12.12
14410
14397
12.8 Casing panel seal check
NOTE: If the functional checks did not indicate poor
combustion then it is not necessary to service this
component.
Check the condition of the seal and replace if worn or damaged.
To replace remove the old seal and thoroughly clean the casing
surfaces. Fit the new seals, these are supplied to the correct
lengths and are in four pieces, for use on the sides, top and
bottom.
12.9 Service Completion
Re-check the combustion as described at the beginning of this
section.
On completion of the service the “Benchmark” Service Record
should be completed.
14460
