INSTALLATION
- 12 -

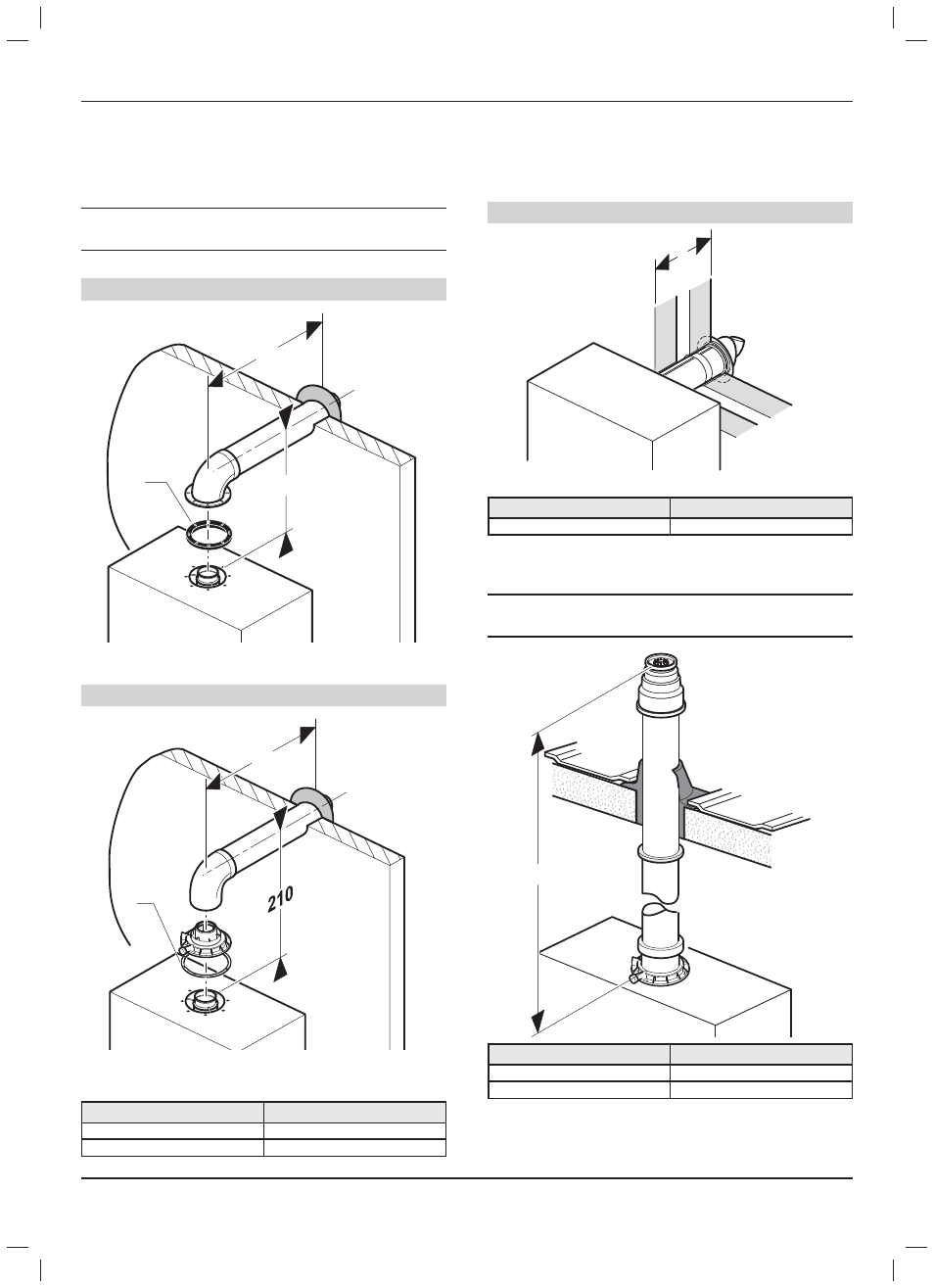

4.2 Flue confi guration description
4.2.1 Horizontal concentric fl ue Ø 60/100 mm
or Ø 80/125 mm (C13 type installation)
a
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection kit.
Ø 60/100 mm
L
63
1
Key
1 Gasket (fi tted)
Ø 80/125 mm
L
1
Key
1 Gasket (fi tted)
Type Max length
Ø 60/100 8 m
Ø 80/125 20 m
Type Max length
Ø 60/100 512 mm
4.2.3 Vertical concentric fl ue Ø 60/100 mm
or Ø 80/125 mm (C33 type installation)
a
If the terminal is at less than 1.80 m from the
ground, you must install a terminal protection kit.
L
Type Max length (L)
Ø 60/100 8 m
Ø 80/125 20 m
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
L
Each time an additional 90° bend is necessary (or 2 at 45°), the
length (L) must be reduced by 1 m.
4.2.2 Telescopic direct rear fl ue Ø 60/100 mm
Ø 60/100 mm
