INSTALLATION
6.1.2 Wall support for the ambient temperature
thermostat
66
27
58
6
6.1.3 Radio receiver
58
20
171
6.2 List of contents
This kit is delivered with:
- Climapro
2
RF programmable room thermostat
- Wall support for the Climapro
2
RF
- Radio receiver
- Packet containing 2 fixing screws with rawlplugs
- 4 “AA LR6 " alkaline batteries
- EBUS cable for radio receiver
7 fixing
7.1 fixing the room thermostat
• Determine the location in which the installation is to be
effected.See the "Installation selection" chapter.
A
B
1
2
4
3
5
6

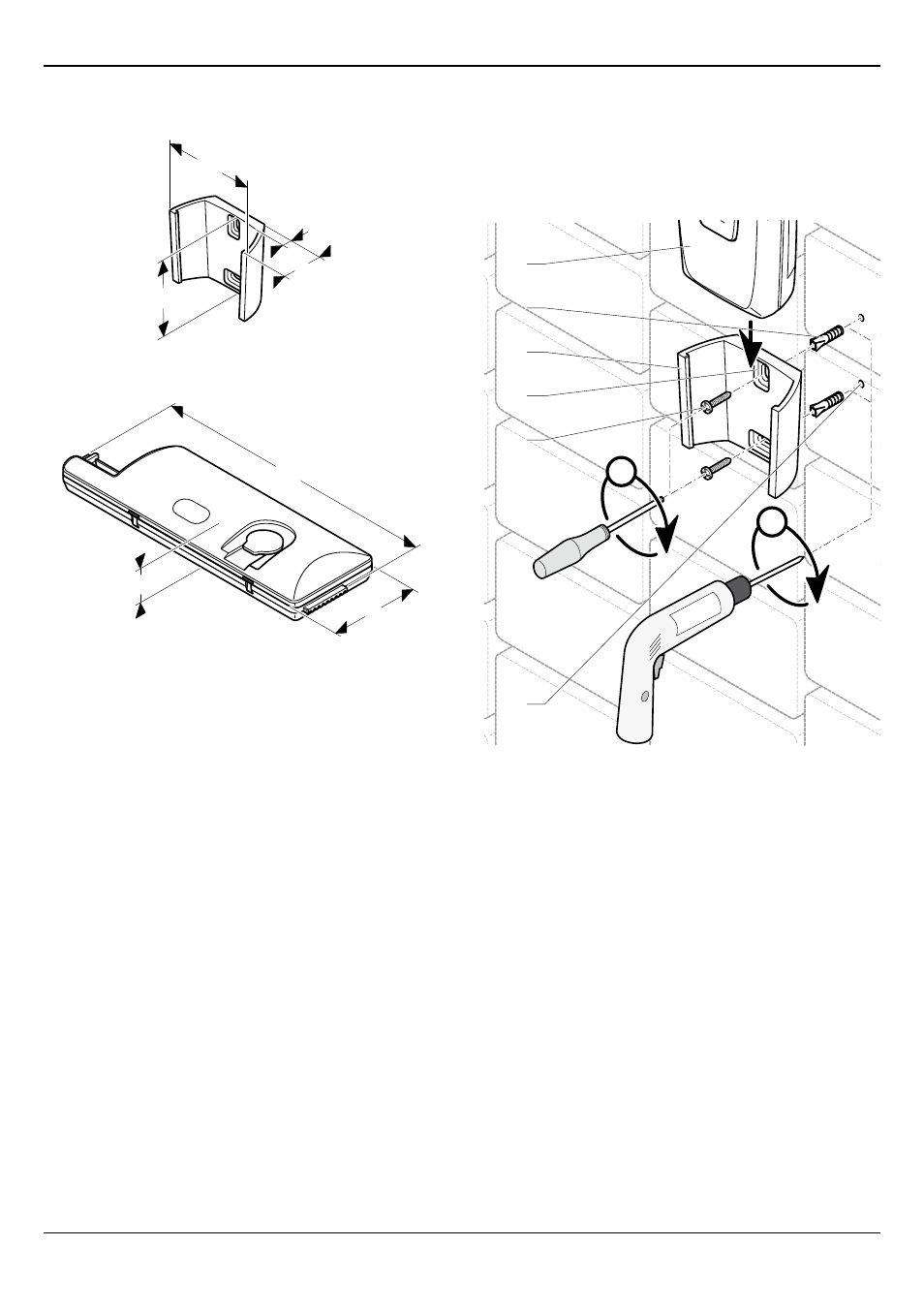

Legend
1 Drilling
2 fixing screw
3 fixing holes
4 Room thermostat support
5 Plugs
6 Room thermostat
• Position the room thermostat support (4) on a wall.
• Drill (A) the screw holes (1) in accordance with 2 mounting
holes (3) in the wall support (4).
• Insert the rawlplugs (5) in the holes (1).
• Secure (B) the room thermostat support (4) with screws (2).
• Slide the room thermostat (6) into its support (4).
