Page 12

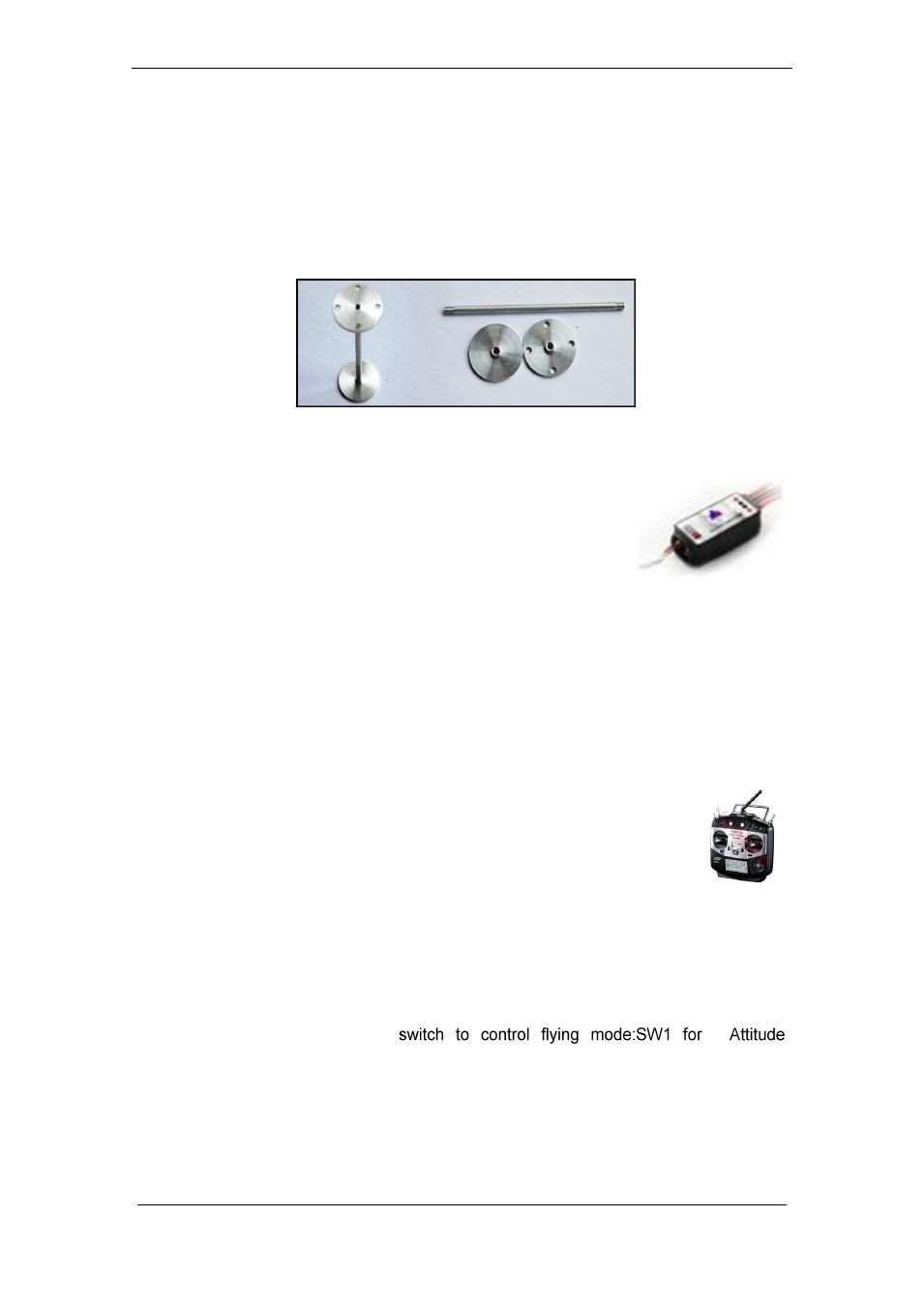

 GPS module should be placed as far as possible to the center position, in order to
reduce the interference to GPS data when it level rotating. Also you can put the GPS
module to a high place using a stent. This practice can effectively reduce the
interference to GPS signals caused by other devices, and improve the positioning
performance of GPS module.
6.3 Power Manager Module Install
 Power manager module supports 2S ～6S lithium battery input;
the integrated current sensor can measure APM draw and
voltage; DC-DC module offers 5V to FY-41AP meanwhile 12V to the video camera
and video transmitter. But servo power is supplied by ESC or S1~S8 through any port
access.
 Only one BEC power source should be used. If all the ESCs have internal BEC, only
choose one to supply power. Disconnect the red wire (positive) of the other ESCs, but
reserve the GND and Signal wirings.
7. Remote Control Setting (SW1&SW2)
( 1 ) FY-41AP needs a remote control and receiver with at least 5 channels,
( 2 ) including 4 normal channels for AIL,ELE,THR,RUD, and SW1 to control flying
mode.
( 3 ) You need to choose normal fixed wing plane mode while canceling all mix control
modes, meanwhile setting CH5 to a three-switch.
( 4 ) FY-41AP needs a three-
Stabilized Mode, Hovering Mode, Auto Return To Launch Mode(RTH).
( 5 ) After setting the Switch, you can double check by monitoring the indicator light
on the module against selected flying mode. For details see the indicator light manual
( 6 ) SW1 default set :
