EXFO FTB-5500B PMD Analyzer - Manual (Page 53)

Managing Results
Polarization Mode Dispersion Analyzer 45
Viewing Acquisition Results and Information
Reloading Existing Files
You can reload existing files without losing the current results and
information.

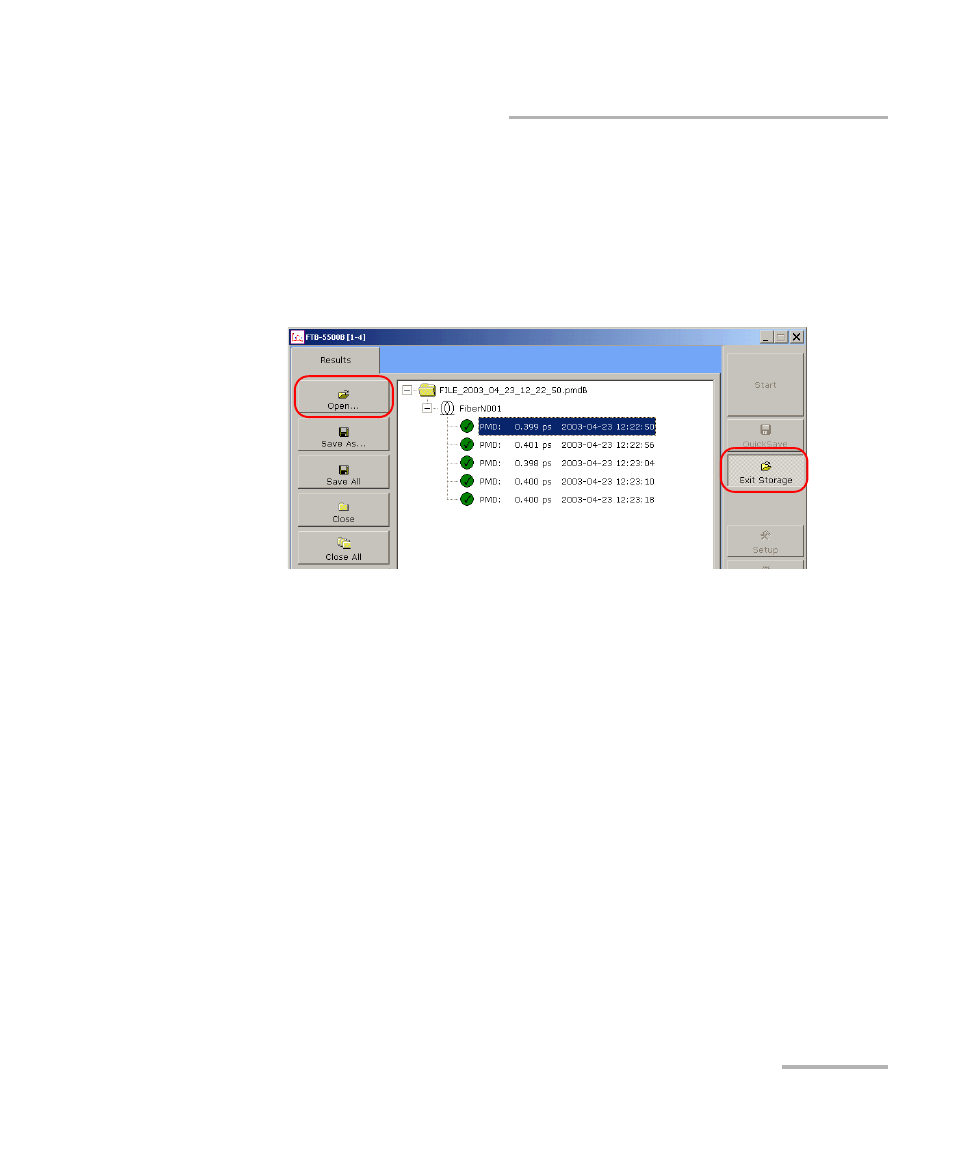

To reload an existing file:
1. From the button bar, click Storage and click Open.
A standard Open dialog box is displayed, allowing you to select the
desired file.
Note: You can speed up file selection by selecting several files at the same time.
2. When you are done, from the displayed dialog box, click Open to load
the files.
3. From the button bar, click Exit Storage.
Note: If you omit to select a result from the list, the main window Results tab will
remain empty until you select one (see Viewing Results on page 46).
