EXFO FTB-5500B PMD Analyzer User Manual
Page 23
Getting Started with Your Polarization Mode Dispersion Analyzer
Polarization Mode Dispersion Analyzer
15
Starting the Polarization Mode Dispersion Analyzer Application

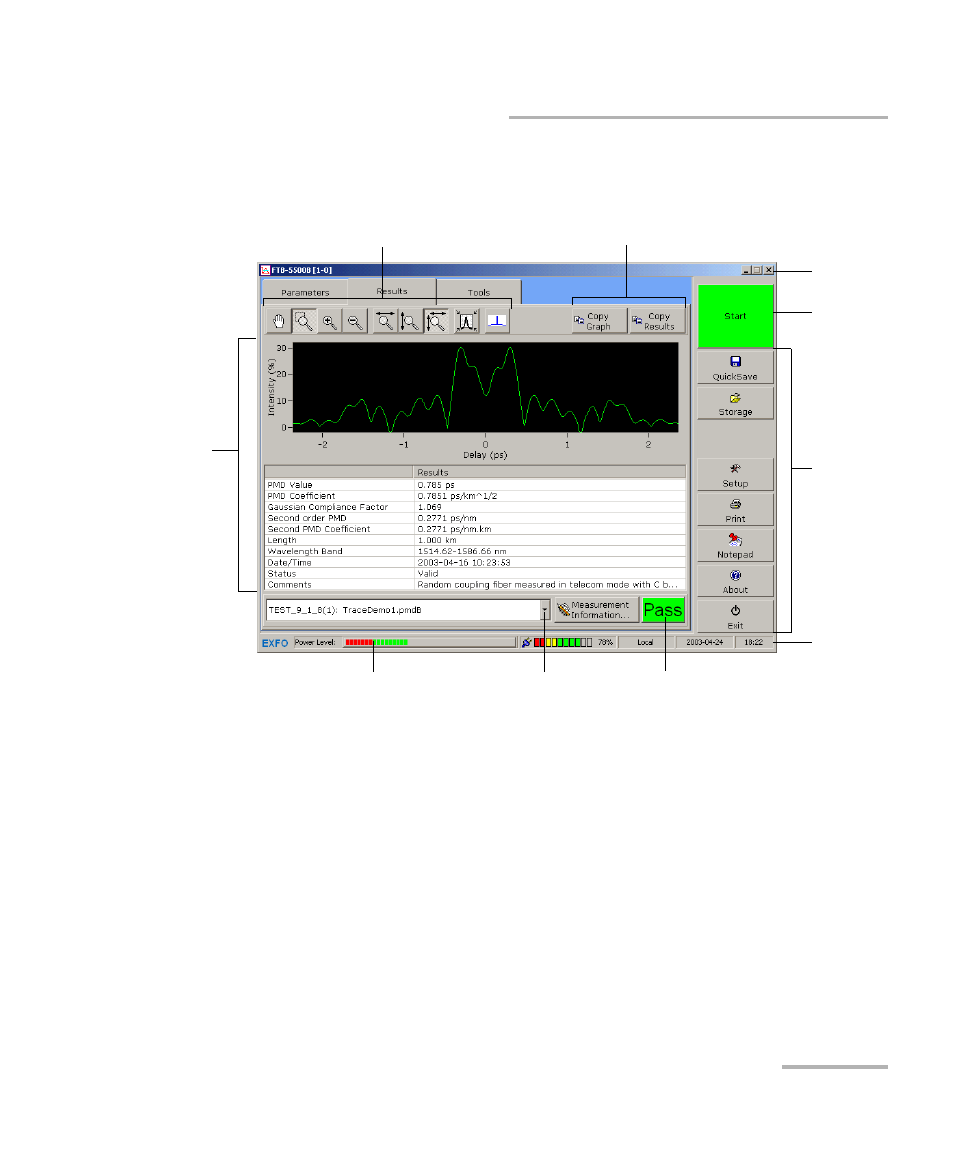

The main window (shown below) contains all the commands required to
control the Polarization Mode Dispersion Analyzer:
Function
buttons
Data
display
Title bar
Status
bar
Zoom controls
Power level
indicator
Export controls
Start/Stop
button
Measurement
selector
Threshold indicator
specifies if measurement
exceeded value or not
